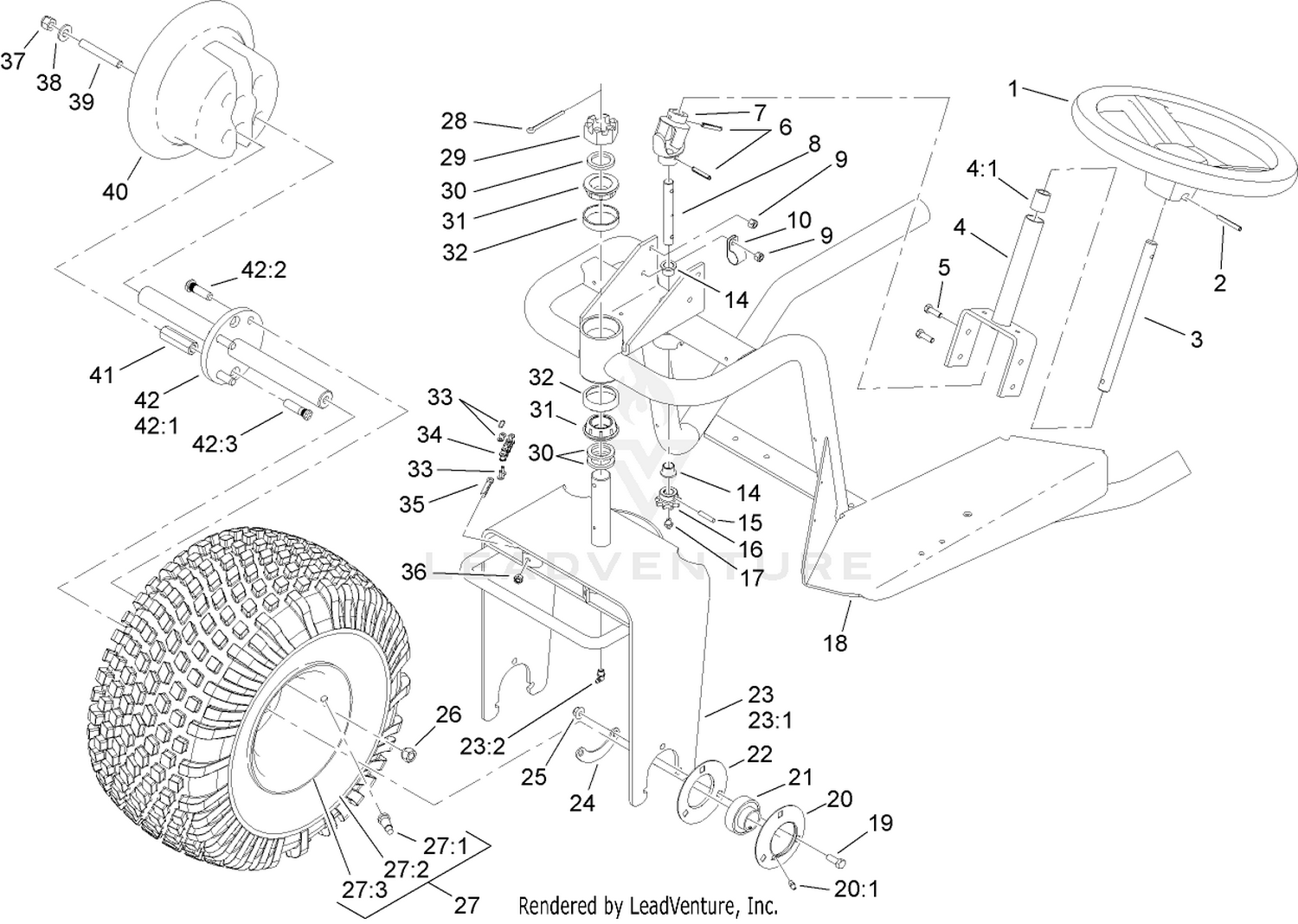

| Ref | Part Number | Description |
|---|
| 1 |
76-1420 |
WHEEL-STEERING Price: $202.69 |
| 2 |
32121-111 |
PIN-ROLL Price: $2.39 |
| 3 |
85-6610 |
SHAFT-STEERING Price: $54.65 |
| 4 |
92-5035 |
STEERING POST ASM Price: $105.83 |
| 5 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 6 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 7 |
85-9200 |
KNUCKLE-STEERING Price: $100.34 |
| 8 |
98-0996 |
STEERING SHFT KIT-SANDPRO This part replaces 98-0928. Price: $35.09 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
2412-41 |
CLAMP-R Price: $4.82 |
| 14 |
65-8770 |
BUSHING-BELLCRANK Price: $5.35 |
| 15 |
98-0973 |
PIN-GROOVED Price: $2.10 |
| 16 |
85-9180 |
SPROCKET-STEERING Price: $56.99 |
| 17 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 18 |
95-0600-01 |
FRAME ASM Price: $2,207.18 |
| 19 |
323-6 |
SCREW-HH Price: $0.66 |
| 20 |
85-8940 |
FLANGETTE-RELUBE Price: $9.50 |
| 21 |
251-352 |
BEARING Price: $47.92 |
| 22 |
85-8950 |
FLANGETTE-STANDARD Price: $11.06 |
| 24 |
112-7671 |
FLANGE-KEEPER Price: $6.14 |
| 25 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 26 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 28 |
3272-37 |
PIN-COTTER Price: $0.75 |
| 29 |
32136-9 |
NUT-HEX, SLOTTED Price: $7.44 |
| 30 |
18-6320 |
WASHER-STEERING Price: $2.65 |
| 31 |
115-9472 |
BEARING-CONE AND SEAL This part replaces 254-70. Price: $22.04 |
| 32 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 33 |
2710-11 |
LINK-CHAIN Price: $5.68 |
| 34 |
92-5039 |
CHAIN-STEERING Price: $36.82 |
| 35 |
18-6380 |
PIN-ADJUSTMENT, STEERING Price: $12.89 |
| 36 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 37 |
3296-19 |
NUT-HEX Price: $0.65 |
| 38 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 39 |
112-7659 |
STUD Price: $12.83 |
| 40 |
112-7641-03 |
WEIGHT-WHEEL Price: $570.44 |
| 41 |
112-7661 |
NUT-HEX Price: $22.60 |
