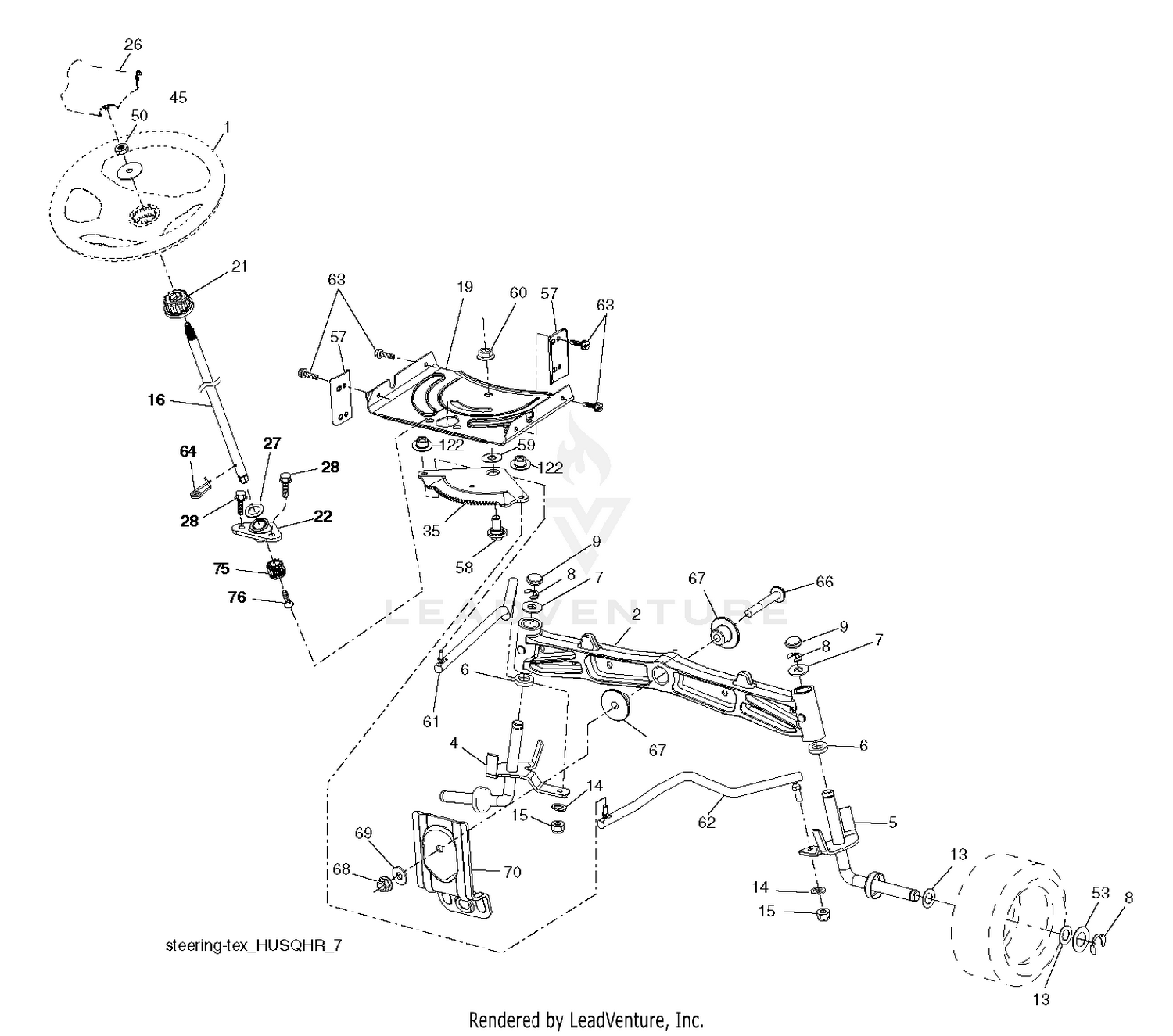

| Ref | Part Number | Description |
|---|
| 1 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 1 |
532439997 |
WHEEL.STEERING.HUSQ.PREM.HRDRM Price: $49.99 |
| 2 |
25-2500 |
SHAFT-TRUNNION Price: $191.66 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 3 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 4 |
28-3300 |
BEARING-ROLLER Price: $137.87 |
| 5 |
252-82 |
BEARING-NEEDLE This part replaces 28-3310. Price: $51.31 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
92-5709 |
HOUSING-TRANSMISSION Price: $1,947.60 |
| 7 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
28-3670 |
SHAFT-TRUNNION Price: $149.64 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
93-4133 |
SEAL-LIP Price: $37.43 |
| 10 |
251-8 |
BEARING-BALL This part replaces 28-3650. Price: $30.06 |
| 11 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 12 |
28-3640 |
SHAFT-PUMP Price: $1,171.13 |
| 13 |
25-2450 |
PLATE-SWASH, VARIABLE This part replaces 49-7820. Price: $896.81 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 14 |
596238701 |
Washers This part replaces 539990118. Price: $3.99 |
| 15 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 587016002. Price: $34.99 |
| 17 |
46-7320 |
PLATE-VALVE, PUMP Price: $418.46 |
| 18 |
25-3300 |
BEARING-NEEDLE Price: $107.05 |
| 19 |
28-3590 |
O-RING Price: $4.60 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
28-3580 |
RING-BACK UP Price: $20.88 |
| 21 |
28-3570 |
O-RING Price: $6.06 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 586840201. Price: $7.99 |
| 22 |
49-7830 |
CHECK VALVE KIT Price: $311.16 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 585029802. Price: $14.99 |
| 23 |
25-2460 |
PLUG-HH Price: $37.38 |
| 24 |
28-3400 |
O-RING Price: $6.67 |
| 25 |
25-2470 |
PACK-SHIM Price: $47.36 |
| 26 |
46-7310 |
SPRING Price: $18.78 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 27 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 27 |
83-7260 |
CONE-RELIEF, CHARGE This part replaces 28-3420. Price: $50.57 |
| 28 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 29 |
323-8 |
SCREW-HH Price: $1.20 |
| 30 |
28-3530 |
CAPSCREW Price: $4.00 |
| 31 |
28-3520 |
O-RING Price: $8.44 |
| 32 |
38-2680 |
PIN Price: $23.93 |
| 33 |
28-3480 |
BEARING Price: $74.83 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 35 |
92-1773 |
SCREW-HHF This part replaces 324-23. Price: $3.05 |
| 36 |
28-3450 |
WASHER Price: $0.25 |
| 37 |
117-6988 |
CHARGE PUMP KIT This part replaces 38-2670. Price: $1,753.04 |
| 39 |
92-5716 |
SECTION-CENTER Price: $2,472.04 |
| 40 |
125-5303 |
PLUG ASM This part replaces 92-5717. Price: $29.84 |
| 42 |
136-3219 |
PLUG ASM This part replaces 28-3440. Price: $21.54 |
| 43 |
323-10 |
SCREW-HH Price: $0.89 |
| 44 |
25-2480 |
SPRING-VALVE Price: $4.93 |
| 45 |
28-3380 |
PLATE-VALVE, MOTOR Price: $468.61 |
| 45 |
587016401 |
WASHER.3/8ID.2-3/8OD.12GA.PLTD Price: $2.99 |
| 46 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 47 |
49-8200 |
SHAFT-MOTOR Price: $1,051.65 |
| 48 |
353-599 |
PIN-DOWEL This part replaces 28-3350. Price: $2.65 |
| 49 |
28-3340 |
GASKET Price: $16.81 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 585338801. Price: $14.99 |
| 75 |
587738906 |
KIT.SRVC.STEERINGSHAFT.PINION This part replaces 580683701. Price: $4.99 |
| 76 |
580683601 |
SCREW HEAD SOCKET LRVB Price: $2.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
