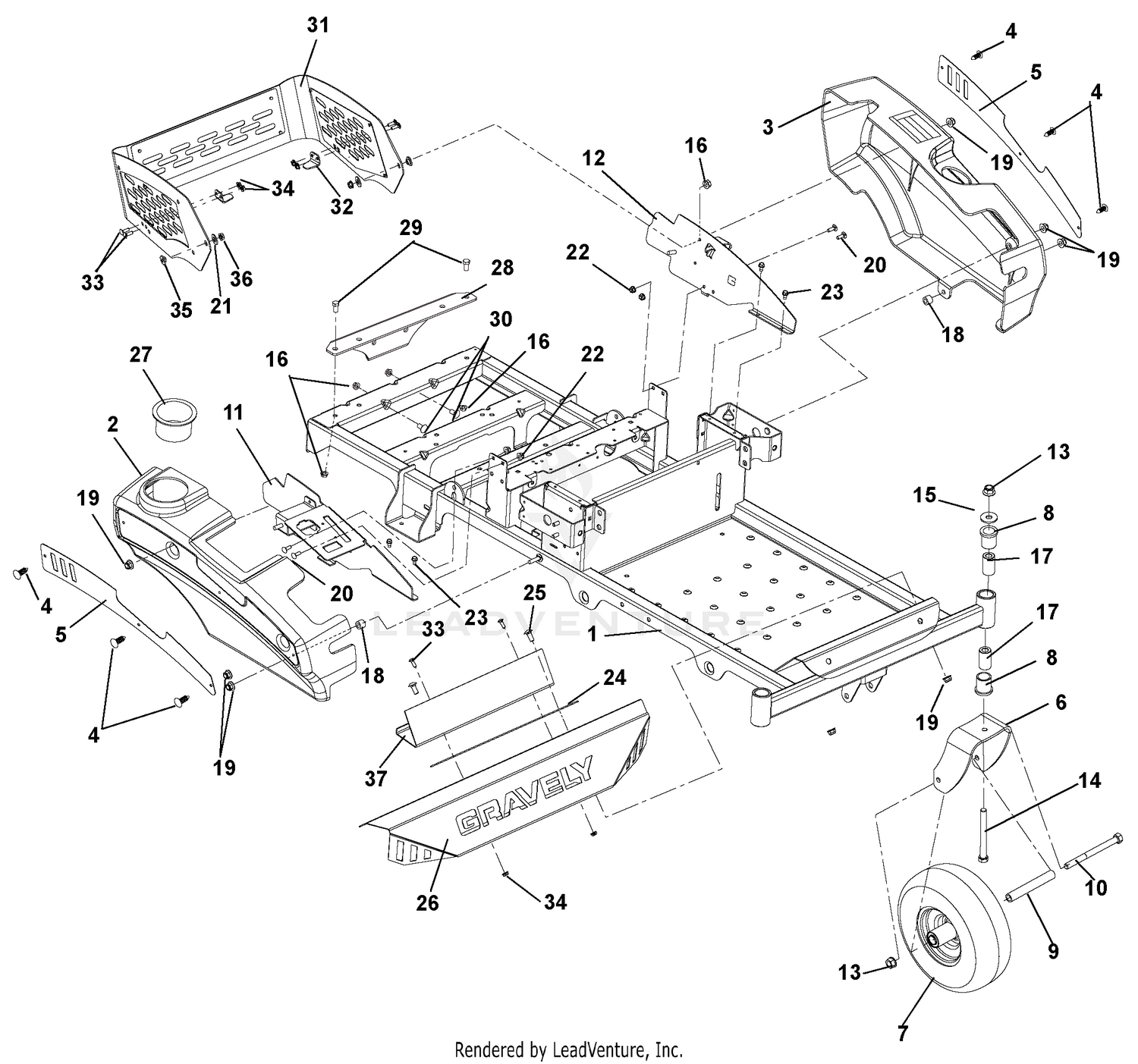

| Ref | Part Number | Description |
|---|
| 1 |
51525800 |
KIT, ZOOM/ZT FRAME W/ DECALS This part replaces 04282751. Price: $572.20 |
| 2 |
03768600 |
FENDER, RH Price: $71.45 |
| 3 |
03768700 |
FENDER, LH Price: $59.95 |
| 4 |
07500125 |
RIVET, .25 NYLON PANEL Price: $0.95 |
| 5 |
04717553 |
PLATE, FENDER ZT Price: $17.95 |
| 6 |
03368553 |
WMT, CASTER FORK Price: $66.45 |
| 7 |
07100801 |
TIRE/WHL ASM, FRONT Price: $65.95 |
| 8 |
05500934 |
BSHG-FLG 1.00X1.25X1.50X1.50 Price: $6.95 |
| 9 |
00278500 |
SPACER, ROLLED WHEEL Price: $13.95 |
| 10 |
05901907 |
BLT, HEX .50-13X6.50 GR5 ZCC This part replaces 05964400. Price: $6.95 |
| 11 |
04717353 |
WLDMT, RH FENDER MOUNT Price: $101.95 |
| 12 |
04717253 |
WLDMT, LH FENDER MOUNT Price: $71.45 |
| 13 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 14 |
05901905 |
BLT, HEX .50-13X5.00 GR5 ZCC This part replaces 05962200. Price: $4.95 |
| 15 |
06401022 |
WSHR-FL-STL.511X1.44X.125ZC120 This part replaces 06436400. Price: $2.95 |
| 17 |
00363100 |
SPACER, CASTER .50X1.00X1.84 Price: $6.95 |
| 18 |
08553700 |
BSHG-SLV .391X.688X.52 PM Price: $5.45 |
| 19 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 20 |
06200307 |
BLT, RHSN .25-20X.750 G5 ZCC This part replaces 06219900. Price: $0.95 |
| 21 |
06443300 |
WSHR-FL-NYL .518X1.000X.080 Price: $0.45 |
| 22 |
06500813 |
NUT,NYL-FLG .25-20 GF ZCC This part replaces 06500012. Price: $1.45 |
| 23 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 25 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 26 |
04717053 |
PLATE, FOOT ZT Price: $50.95 |
| 27 |
04192700 |
CUPHOLDER, SNAP-IN 3.75OD Price: $20.95 |
| 31 |
51526600 |
ASSEMBLY, ENGINE WRAP ZT Price: $138.45 |
| 32 |
04733251 |
BRKT, ZT ENGINE WRAP FOOT (CE) Price: $13.20 |
| 33 |
06200306 |
BLT, RHSN .25-20X.500 G5 ZCC This part replaces 06220600. Price: $0.95 |
| 34 |
06500710 |
NUT-LK-CTR-FLG .25-20 YWZC Price: Call Us |
| 35 |
05501127 |
BSHG-FLG .325X.499X.3X.875 Price: $0.95 |
| 36 |
06500840 |
NUT,LK-CTR-FLG .31-18 GF ZCC This part replaces 06528700. Price: $0.95 |
