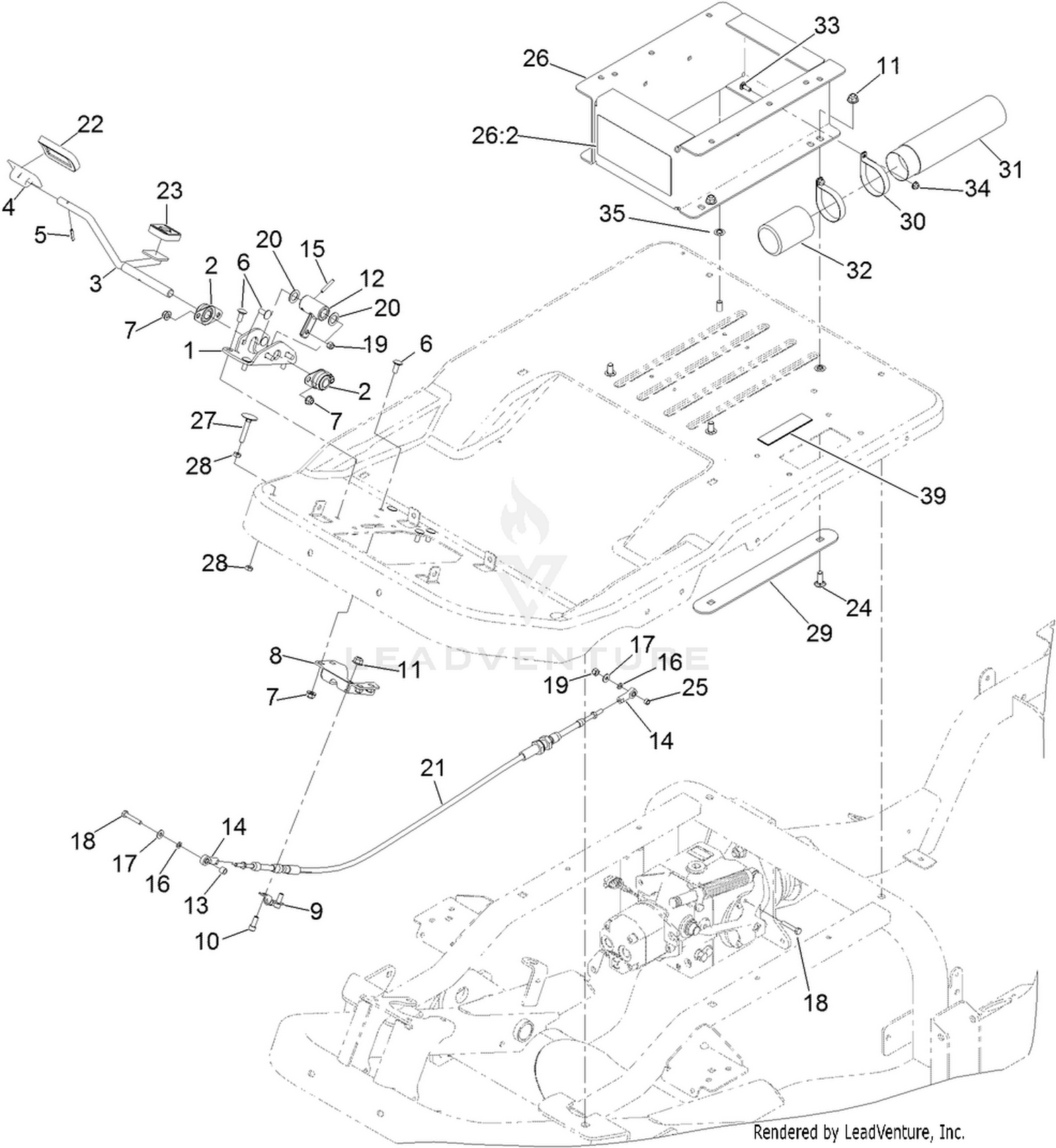

| Ref | Part Number | Description |
|---|
| 1 |
138-7477-01 |
BRACKET-PEDAL, TRACTION Price: $28.82 |
| 2 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 3 |
138-4594 |
PEDAL-TRACTION Price: $17.75 |
| 4 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 5 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 6 |
3230-23 |
SCREW-CARR Price: $0.89 |
| 7 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 8 |
138-7446-01 |
BRACKET-CABLE, TRACTION Price: $24.65 |
| 9 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 10 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 11 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 12 |
117-5199 |
HUB-PEDAL, TRACTION Price: $47.99 |
| 13 |
66-8010 |
SPACER Price: $4.19 |
| 14 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 15 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 16 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 17 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 18 |
321-9 |
SCREW-HH Price: $0.27 |
| 19 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 20 |
137-2601 |
WASHER Price: $2.71 |
| 21 |
137-2568 |
TRACTION-CABLE Price: $141.03 |
| 22 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 23 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 24 |
3231-22 |
SCREW-CARR Price: $0.72 |
| 25 |
130-9691 |
SPACER Price: $1.84 |
| 26 |
139-6221 |
SEAT BOX ASM Price: $201.80 |
| 27 |
115-8240 |
SCREW-ELEVATOR Price: $3.66 |
| 28 |
3218-2 |
NUT-JAM Price: $0.25 |
| 29 |
138-7422-0P |
STRIP-SEAT MOUNT This part replaces 138-7422-01. Price: $18.75 |
| 30 |
107-1865 |
R-Clamp Price: $6.86 |
| 31 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 32 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 33 |
1-807512 |
BOLT-CARR Price: $1.29 |
| 34 |
104-7201 |
NUT-HF Price: $0.69 |
| 35 |
107-3154 |
NUT-PUSH Price: $0.99 |
