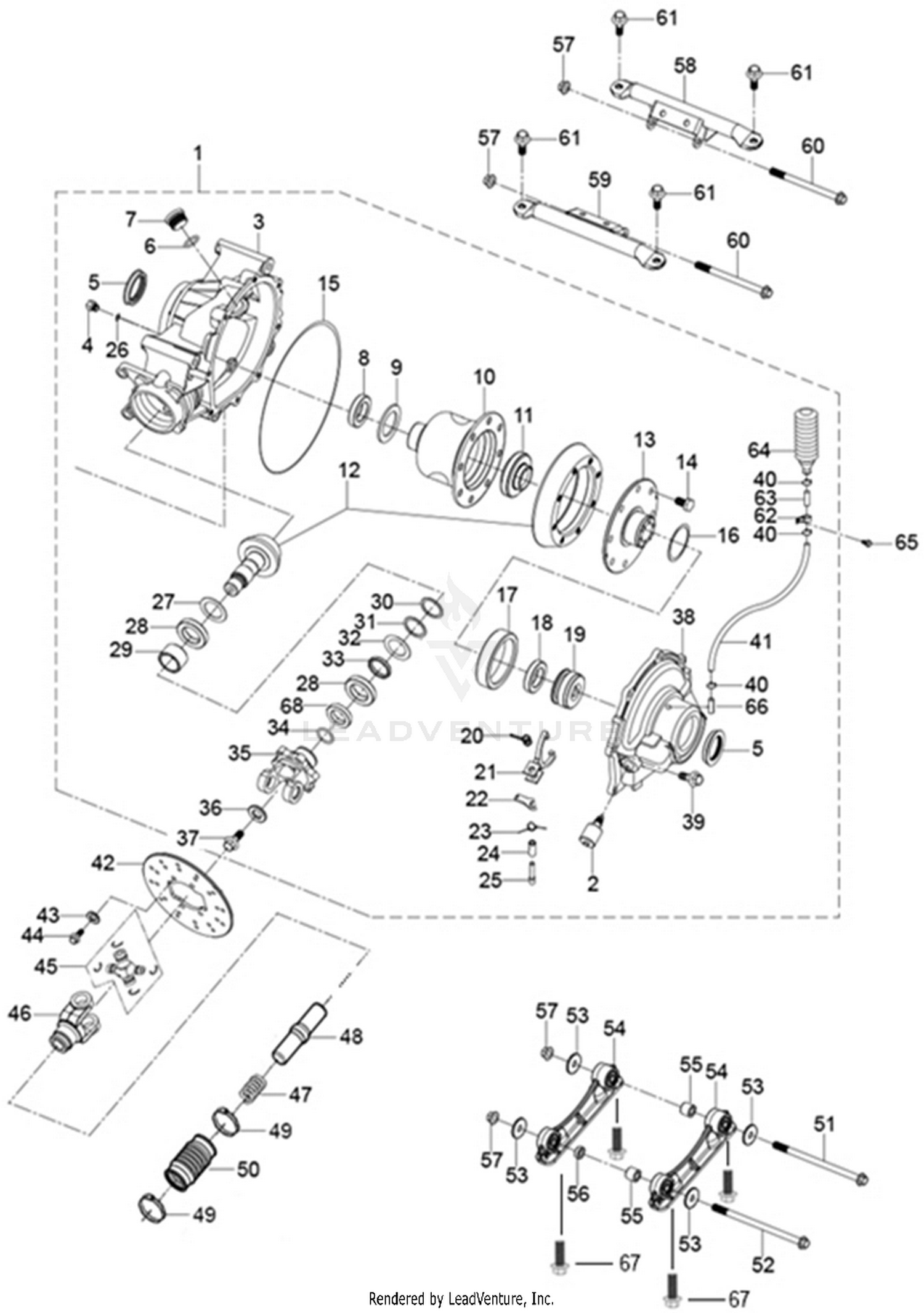

| Ref | Part Number | Description |
|---|
| 1 |
503-01418B |
REAR DIFFERENTIAL ASSEMBLY Price: $2,191.44 |
| 2 |
503-01419A |
REAR DIFF LOCK SOLENOID Price: $177.22 |
| 3 |
503-01420 |
GEARCASE - RH Price: $627.15 |
| 4 |
503-01421 |
DRAIN PLUG Not Available Price: |
| 5 |
503-01422 |
SEAL 35X52X7 Price: $30.09 |
| 6 |
503-01423 |
O-RING 23X3 Not Available Price: |
| 7 |
503-01424 |
OIL FILL PLUG Not Available Price: |
| 8 |
503-01425 |
BEARING - ROLLER BALL 32008 Price: $46.89 |
| 9 |
503-01426 |
SPACER 40.5X57X0.1 Not Available Price: |
| 10 |
503-01428 |
DIFFERENTIAL CASE Price: $685.82 |
| 11 |
503-01429 |
SIDE GEAR Price: $268.34 |
| 12 |
503-02747 |
DIFF RING GEAR Price: $660.81 |
| 13 |
503-01431 |
SEAT SIDE GEAR Not Available Price: |
| 14 |
503-01432 |
HEX HEAD BOLT M10X1.25-20 Price: $6.24 |
| 15 |
503-01433 |
O-RING 12X192 Not Available Price: |
| 16 |
503-01434 |
SPACER 50.5X60X0.1 Price: $3.67 |
| 17 |
503-01435 |
BEARING CONE Not Available Price: |
| 18 |
503-01436 |
BEARING ROLLER BALL 32010 Not Available Price: |
| 19 |
503-01437 |
DRIVE CLUTCH Price: $81.30 |
| 20 |
503-01438 |
TORSION SPRING II Price: $3.19 |
| 21 |
503-01439 |
SHAFT FORK Not Available Price: |
| 22 |
503-01440 |
LIMIT STOP FORK Not Available Price: |
| 23 |
503-01441 |
TORSION SPRING I Price: $3.67 |
| 24 |
503-01442 |
TUBE Price: $3.19 |
| 25 |
503-01443 |
BOLT STOPPER Price: $4.47 |
| 26 |
503-01444 |
O-RING 8X1 Price: $3.77 |
| 27 |
503-01445 |
SPACER 30.6X46X0.1 Price: $6.68 |
| 28 |
503-01446P |
BEARING ROLLER BALL 32206 Price: $61.23 |
| 29 |
503-02748 |
SPACER 30.5x38x15 Price: $10.89 |
| 30 |
503-01448 |
SEAL 40X72X7 Price: $36.91 |
| 31 |
503-01449 |
WASHER - FLAT 30.5X38X2 Price: $3.67 |
| 32 |
503-01445 |
SPACER 30.6X46X0.1 Price: $6.68 |
| 33 |
503-01450 |
TUBE 30.5X38X6.4 Price: $7.40 |
| 34 |
503-01451 |
O-RING 3X24 Price: $6.10 |
| 35 |
503-03609 |
U-JOINT YOKE (REAR) Price: $29.30 |
| 36 |
503-02746 |
U-JOINT GASKET Price: $3.19 |
| 37 |
503-02749 |
HEX FLANGE BOLT Price: $7.45 |
| 38 |
503-01455 |
COVER GEARCASE Not Available Price: |
| 39 |
503-02354 |
HEX HEAD FLANGE BOLT M8X25 Price: $1.11 |
| 40 |
503-00344 |
CIRCLE CLIP Price: $9.13 |
| 41 |
503-01456A |
FUEL LINE Price: $4.79 |
| 42 |
503-01457 |
DISC BRAKE Price: $61.85 |
| 43 |
503-00005 |
SPRING WASHER-8 Price: $5.36 |
| 44 |
503-00042 |
HEXAGON FLANGE BOLT M8X20 Price: $6.38 |
| 45 |
503-03604 |
U-JOINT Price: $77.58 |
| 46 |
503-03606 |
U-JOINT YOKE (SPLINED) Price: $33.68 |
| 47 |
503-02814 |
COMPRESSION SPRING Price: $2.94 |
| 48 |
503-02815 |
SHAFT Price: $44.55 |
| 49 |
503-01459 |
NARROW BAND CLAMP Price: $5.11 |
| 50 |
503-02848 |
NARROW BAND CLAMP I Price: $10.22 |
| 51 |
503-01461 |
HEX HEAD FLANGE BOLT Price: $25.46 |
| 52 |
503-01462 |
HEX HEAD BOLT M10X1.25-195 Price: $7.14 |
| 53 |
503-01463 |
WASHER 10X35X3 Not Available Price: |
| 54 |
503-01464 |
STRAP DIFFERENTIAL-REAR SEAT Not Available Price: |
| 55 |
503-01465 |
TUBE 10.5X20X18 Price: $9.83 |
| 56 |
503-01466 |
TUBE 10.5X20X7.5 Price: $4.54 |
| 57 |
503-01375 |
LOCK NUT M10X1.25 Price: $6.13 |
| 58 |
503-02849 |
REAR DIFFERENTIAL BRACKET Price: $20.25 |
| 59 |
503-01468 |
REAR DIFFERENTIAL SHELF KIT -FRONT Not Available Price: |
| 60 |
503-01469 |
HEX HEAD BOLT M10X1.25-115 Price: $14.74 |
| 61 |
503-02222 |
BOLT & WASHER ASSEMBLY M8x25 Price: $4.58 |
| 62 |
503-01210 |
PIPE CLAMP I Price: $4.23 |
| 63 |
503-01470 |
CONNECTOR Price: $7.61 |
| 64 |
503-01401 |
AIRBAG Not Available Price: |
| 65 |
503-00011 |
HEXAGON FLANGE BOLT M6X16 Price: $5.48 |
| 66 |
503-00182 |
REAR DIFFERENTIAL FITTING Not Available Price: |
| 67 |
503-02223 |
HEX BOLT & WASHER ASSEMBLY Price: $5.32 |
