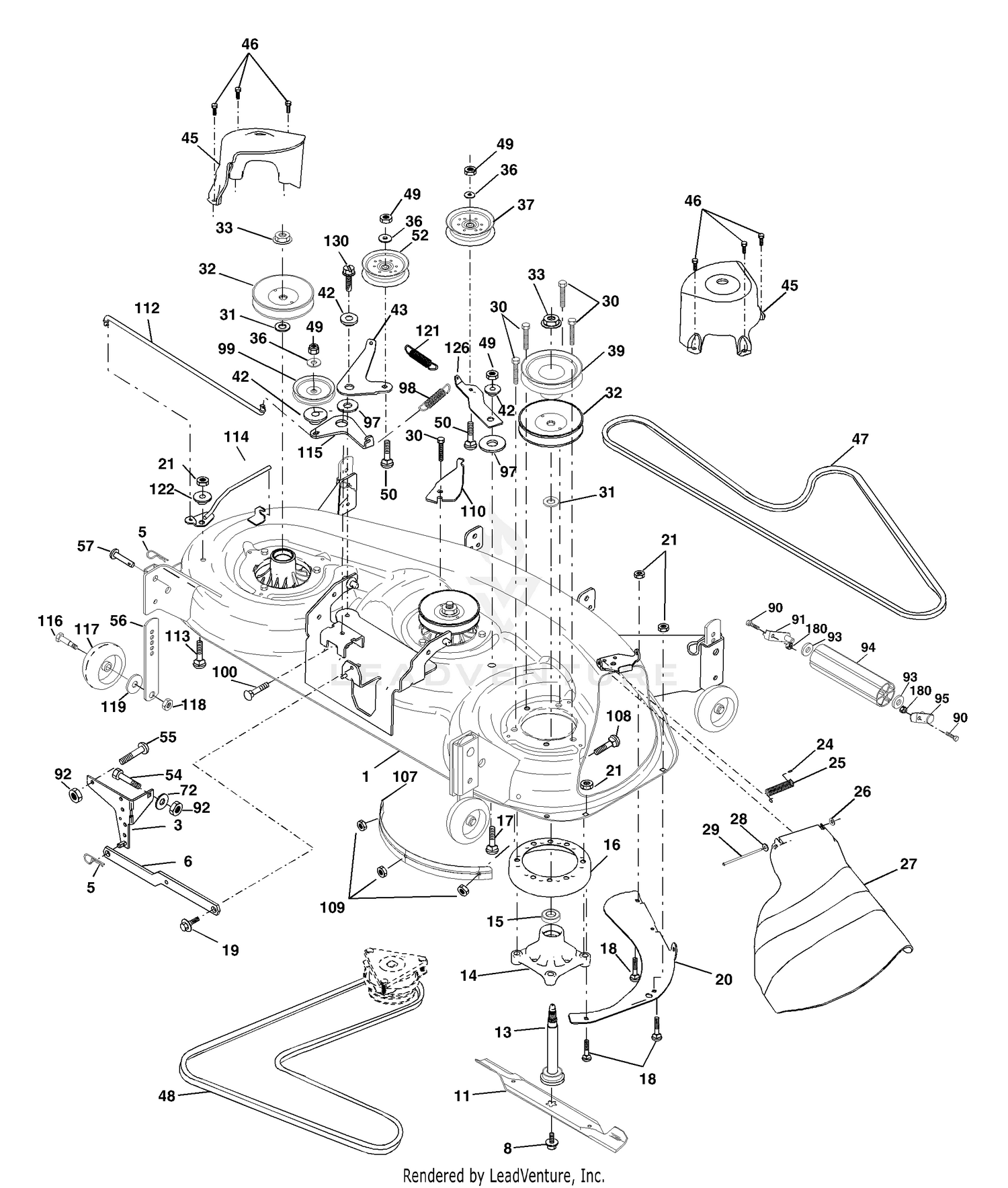

| Ref | Part Number | Description |
|---|
| 1 |
532184233 |
DECK.SVC.4.GA.WHLS.48".BLK This part replaces 532180358. Price: $349.99 |
| 1 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 2 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 3 |
531165401 |
SERVICE.KIT BRACKET BRKT ASM S This part replaces 532138017. Price: $12.99 |
| 3 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 4 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 6 |
531149301 |
SERVICE KIT BAR BAR SWAY DECK. This part replaces 532130832. Price: $9.99 |
| 7 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 This part replaces 532174365. Price: $6.99 |
| 8 |
76-2940 |
BUMPER Price: $9.73 |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 10 |
66-8610 |
DISCONTINUED Price: Call Us |
| 11 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 12 |
76-1910 |
DISCONTINUED Price: Call Us |
| 13 |
532174360 |
SHAFT ASM W/LOWER BEARING Price: $39.99 |
| 13 |
82-9060 |
DISCONTINUED Price: Call Us |
| 14 |
532174358 |
HOUSING, MANDREL 48" Price: $49.99 |
| 14 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 15 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 16 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 16 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 532174493. Price: $6.99 |
| 17 |
596987501 |
Bolts This part replaces 872110610. Price: $3.99 |
| 17 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 18 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 18 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 19 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 20 |
531167501 |
SERVICE KIT BAFFLE BAFFLE This part replaces 532174378. Price: $12.99 |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 23 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 24 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $4.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 26 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 27 |
532180655 |
DEFLECTOR.ASM.BLACK.48" This part replaces 532181031. Price: $39.99 |
| 27 |
93-3164 |
CAP Price: $11.64 |
| 28 |
819111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: $5.99 |
| 28 |
93-3163 |
SPRING Price: $26.01 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
322-6 |
SCREW-HH Price: $0.45 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 532129963. Price: $3.99 |
| 32 |
532173436 |
PULLEY MANDREL This part replaces 532177865. Price: $14.99 |
| 33 |
596134801 |
Nuts This part replaces 532178342. Price: $1.00 |
| 36 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 39 |
532174375 |
PULLEY.DRIVEN.DECK.48' Price: $34.99 |
| 42 |
532165723 |
SPACER.RETAINER.MOWER This part replaces 532122052. Price: $5.99 |
| 43 |
532174373 |
ARM, IDLER SECONDARY Price: $9.99 |
| 45 |
532180806 |
COVER.MANDREL.DECK.48" This part replaces 532174343. Price: $12.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
532180808 |
V-BELT, 48"SECONDARY This part replaces 532174369. Price: $49.99 |
| 48 |
532174368 |
V-BELT PRIMARY 48" Price: $49.99 |
| 49 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 52 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 54 |
596564401 |
Bolts This part replaces 874780616. Price: $3.99 |
| 55 |
596728201 |
Bolts This part replaces 872140608. Price: $3.99 |
| 56 |
532155986 |
BAR.ADJUST.WHEEL.ANTI.SCALP.BL Price: $17.99 |
| 57 |
532156941 |
RIVET.PIN.HEAD.YELLOW. Price: $4.99 |
| 72 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 90 |
596580801 |
Bolts This part replaces 874760516. Price: $2.99 |
| 91 |
532175384 |
BRKT ASM NOSEROLLER(L)48" Price: $6.99 |
| 92 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 93 |
819171416 |
Washer 17/32 x 7/8 x 16 Ga. Price: $3.99 |
| 94 |
532176066 |
NOSE ROLLER 48" Price: $11.99 |
| 95 |
532175996 |
BRKT, ASM NOSEROLLER(R)48 Price: $6.99 |
| 97 |
532178515 |
WASHER This part replaces 532133943. Price: $5.99 |
| 98 |
532179479 |
SPRING PRIMARY DRIVE Price: $3.99 |
| 99 |
532193195 |
PULLEY.V.IDLER This part replaces 532175080. Price: $49.99 |
| 100 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 107 |
532175294 |
BAFFLE.VAC.EDGE.MOWER.48" Price: $2.99 |
| 108 |
872110404 |
BOLT Price: $7.99 |
| 109 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 110 |
532175016 |
ARM, SPRING SECONDARY Price: $4.99 |
| 112 |
532174387 |
LEVER, TENSION RELIEF LINK Price: $14.99 |
| 113 |
596435701 |
Bolts This part replaces 872110508. Price: $2.99 |
| 114 |
532174384 |
LEVER ASM, TENSION RELIEF Price: $8.99 |
| 115 |
532174609 |
ARM, SPRING TENSION RELIEF Price: $4.99 |
| 116 |
596434404 |
Bolts This part replaces 532137644. Price: $4.99 |
| 117 |
532133957 |
WHEEL GAGE DONUT Price: $11.99 |
| 118 |
596322601 |
Nuts This part replaces 873930600. Price: $2.99 |
| 119 |
596134901 |
GSPH This part replaces 819121414. Price: $2.99 |
| 121 |
532174371 |
SPRING.DRIVE.SECONDARY.48".DEC Price: $5.99 |
| 122 |
532174606 |
BUSHING, PIVOT TENSION RELIEF Price: $3.99 |
| 126 |
532174372 |
ARM, IDLER PRIMARY DECK Price: $9.99 |
| 130 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 180 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 532181579 |
DECK |
ASM SVC 48" ELE.HD/HP ADJ This part replaces 532181591. Price: $899.99 532181579 |
