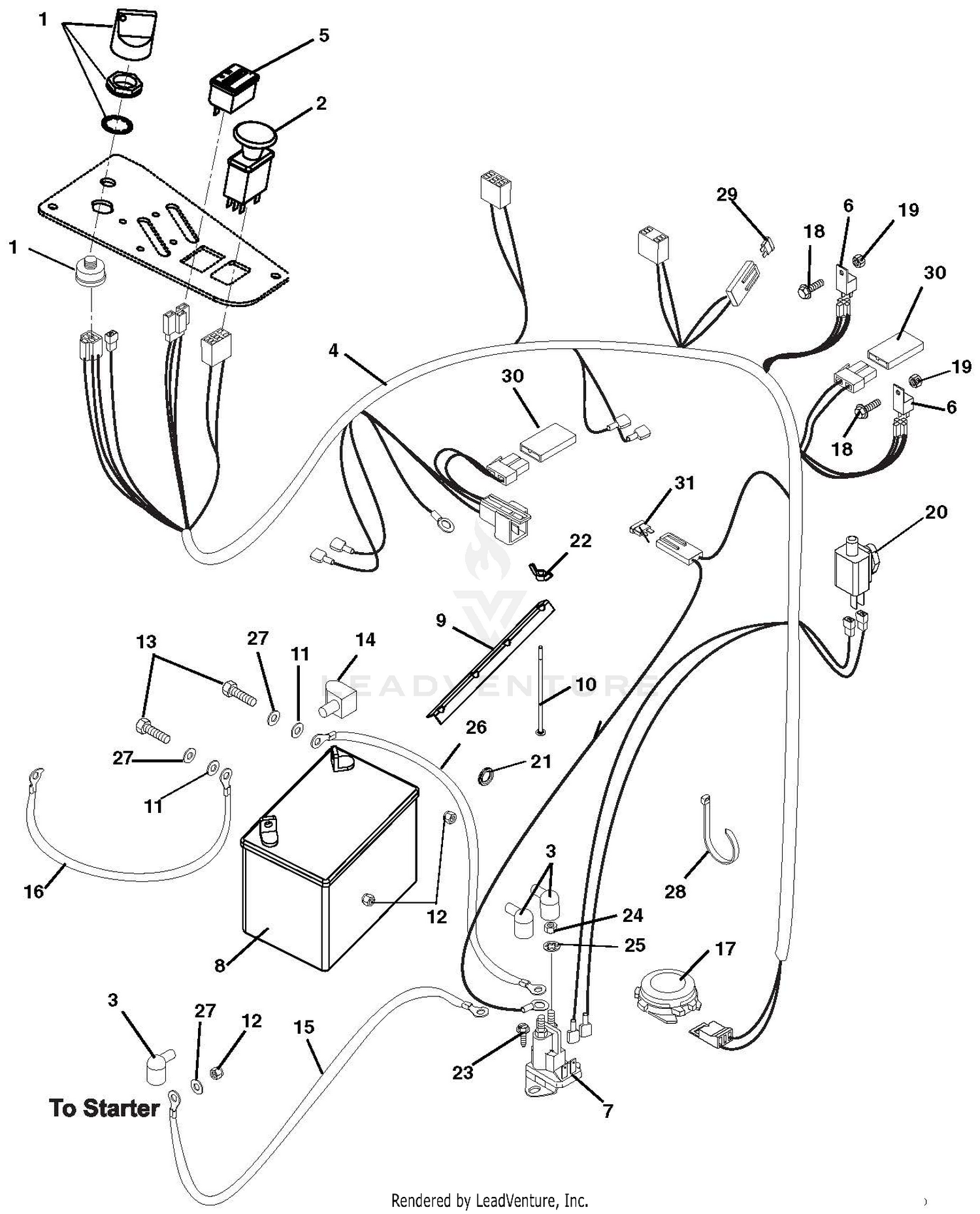

| Ref | Part Number | Description |
|---|
| 1 |
04331700 |
SWITCH, IGNITION This part replaces 09089700. Price: $38.95 |
| 2 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 3 |
07533200 |
BOOT, EYELET TERMINAL Price: $3.45 |
| 4 |
04762400 |
HARNESS-WIRE This part replaces 03288500. Price: $142.95 |
| 5 |
09497400 |
HOUR METER This part replaces 00456600. Price: $22.45 |
| 6 |
00432101 |
RELAY,SEALED W/DIODE This part replaces 00432100. Price: $19.95 |
| 7 |
59223400 |
KIT, SEALED SOLENOID ADAPTER This part replaces 00696900. Price: $55.45 |
| 8 |
01554800 |
BATTERY, 300 CCA 10U1L Price: $47.95 |
| 9 |
03494051 |
HOLD DOWN Price: $10.45 |
| 10 |
06200424 |
BTL,RHSN .250-20 X 7.5 G5 ZCC This part replaces 06226400. Price: $4.45 |
| 11 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 12 |
06500916 |
NUT-STD .250-20 G2 ZCC This part replaces 06533200. Price: $0.45 |
| 13 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 14 |
07505700 |
INSULATOR Price: $8.95 |
| 15 |
03286000 |
CABLE-POSITIVE BATTERY 9.00" Price: $7.45 |
| 16 |
03288100 |
CABLE-NEGATIVE BATTERY 24.00" Price: $15.95 |
| 17 |
03654200 |
SWITCH- SEAT Price: $13.45 |
| 18 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 19 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 20 |
03252300 |
SWITCH, SINGLE POLE N.O. Price: $12.45 |
| 21 |
07500036 |
GROMMET, 2.12" ID BUNA-N Price: $14.95 |
| 22 |
06500805 |
NUT, LK-WING .25-20 ZCC This part replaces 06537500. Price: $4.45 |
| 23 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC This part replaces 07412000. Price: $0.45 |
| 24 |
06500923 |
NUT-JAM .312-24 ZCC This part replaces 06536700. Price: $0.95 |
| 25 |
06300119 |
WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95 |
| 26 |
03492500 |
CABLE, STARTER .31X23.00X.31 Price: $19.45 |
| 27 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 28 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 29 |
00580600 |
FUSE 20AMP Price: $5.95 |
| 30 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
