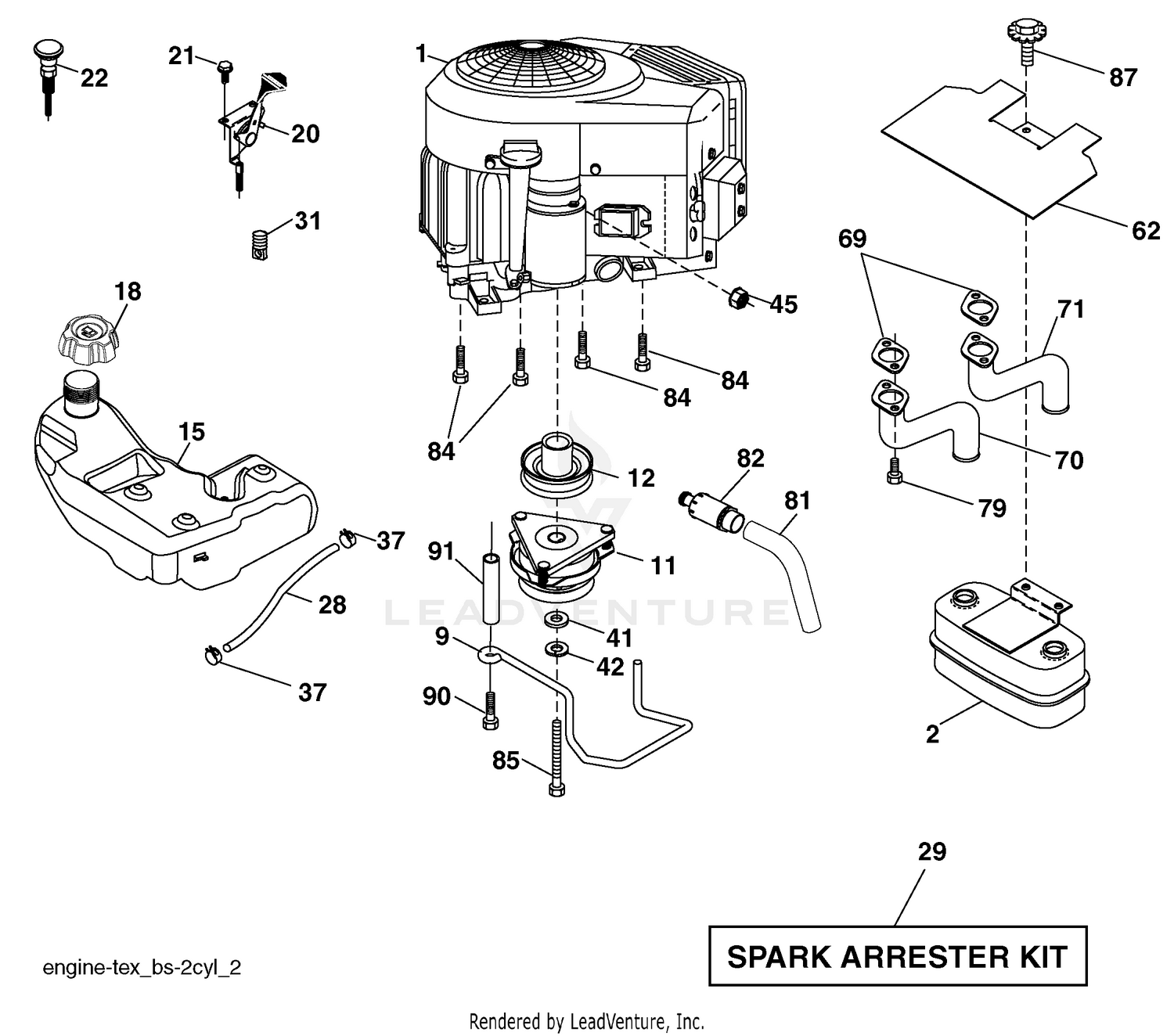

| Ref | Part Number | Description |
|---|
| 2 |
149723 |
Muffler Price: Call Us |
| 9 |
194320 |
Keeper Belt Engine Price: Call Us |
| 10 |
100-9237 |
STARTER ASM Price: $774.46 |
| 11 |
179335 |
Clutch Electric Price: Call Us |
| 12 |
194343 |
Pulley Engine Price: Call Us |
| 15 |
193499 |
Tank Fuel Price: Call Us |
| 18 |
195951 |
Cap Asm. Price: Call Us |
| 20 |
104-8608 |
YOKE ASM Price: $437.88 |
| 20 |
175437X421 |
Control Throttle Price: Call Us |
| 21 |
416358 |
Screw #10 x 0.750 BOS Thread Price: Call Us |
| 22 |
187767X428 |
Control Choke Price: Call Us |
| 28 |
401135 |
Fuel Line Price: Call Us |
| 29 |
137180 |
Spark Arrester Kit Price: Call Us |
| 30 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 31 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 37 |
123487X |
Clamp Hose Price: Call Us |
| 40 |
98-7744 |
BEARING Price: $35.64 |
| 41 |
126197X |
Washer 1-1/2 OD x 15/32 ID x .250 Price: Call Us |
| 42 |
10040700 |
Washer Lock 7/16 Price: Call Us |
| 45 |
73510400 |
Nut Keps Hex 1/4-20 unc Price: Call Us |
| 50 |
98-7743 |
BEARING Price: $37.48 |
| 60 |
98-7745 |
CLUTCH-RUNNING, OVER Price: $356.53 |
| 62 |
146629 |
Shield Heat Muffler Price: Call Us |
| 65 |
105-2887 |
PINION-BEVEL Price: $174.63 |
| 69 |
165391 |
Gasket Price: Call Us |
| 70 |
160589 |
Exhaust Tube LH Price: Call Us |
| 70 |
98-7746 |
FRAME-END, DRIVE Price: $131.70 |
| 71 |
159955 |
Exhaust Tube RH Price: Call Us |
| 79 |
183906 |
Screw Socket Head 5/16-18 x 1 Price: Call Us |
| 80 |
100-9239 |
MAGENTIC SWITCH ASM Price: $775.90 |
| 81 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 82 |
181654 |
Plug Drain Oil Price: Call Us |
| 84 |
17060620 |
Screw 3/8-16 x 1-1/4 Price: Call Us |
| 85 |
179953 |
Bolt Hex 7/16-20 x 3.75 Gr. 5 Price: Call Us |
| 87 |
198239 |
Bolt 5/16-18 x 1 Price: Call Us |
| 90 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 90 |
98-7748 |
FRAME-END Price: $82.65 |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7755 |
BALL Price: $0.42 |
| 160 |
98-7754 |
SPRING Price: $4.70 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
98-7758 |
BOLT ASM Price: $4.90 |
| 200 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 210 |
99-8371 |
NUT-HEX This part replaces 105-2873. Price: $3.75 |
| 220 |
99-8375 |
COVER Price: $24.86 |
| 230 |
100-9240 |
BOLT Price: $7.23 |
| 240 |
99-8376 |
NUT-HEX Price: $7.28 |
| 250 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 260 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
