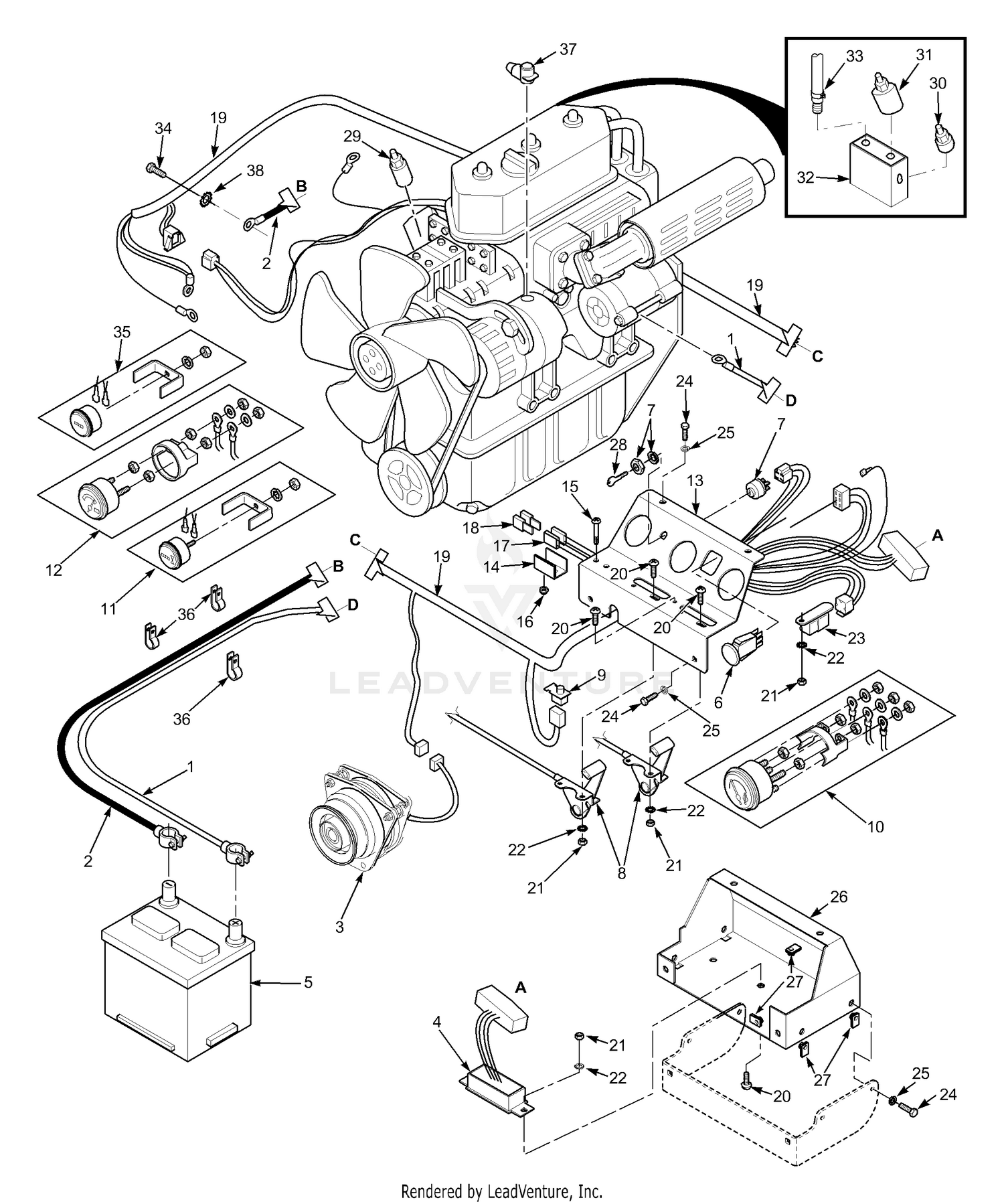

| Ref | Part Number | Description |
|---|
| 1 |
481176-08 |
Cable, Positive Battery Price: Call Us |
| 2 |
481176-07 |
Cable, Negative Battery Price: Call Us |
| 3 |
461827 |
CLUTCH UPGRADE PKG, STT-BSD GT5 This part replaces 461467. Price: Call Us |
| 4 |
484054 |
Electronic Control Module This part replaces 481808. Price: Call Us |
| 5 |
482283 |
Battery (Not Avail. through Scag, Exide P/N 26R) Price: Call Us |
| 6 |
463034 |
SEALED PTO SWITCH KIT This part replaces 481687. Price: Call Us |
| 8 |
481806 |
Cable, Control (Throttle, Choke) Price: Call Us |
| 9 |
481638 |
Switch, Seat Price: Call Us |
| 10 |
481183 |
Gauge, Water Temperature Price: Call Us |
| 11 |
481805 |
Gauge, Oil Pressure Price: Call Us |
| 12 |
481184 |
Gauge, Volts Price: Call Us |
| 13 |
461393 |
Panel, Instrument Panel Price: Call Us |
| 14 |
42413 |
Bracket, Fuse Holder Price: Call Us |
| 15 |
04010-11 |
Screw, #10-32 x 1.5" Phillips Price: Call Us |
| 16 |
04021-01 |
Nut, #10-32 Elastic Stop Price: Call Us |
| 17 |
48297 |
Fuse Holder w/ 20 Amp Fuse Price: Call Us |
| 18 |
48298 |
Fuse, 20 Amp Price: Call Us |
| 19 |
482523 |
Harness, Wiring Price: Call Us |
| 20 |
04010-01 |
Screw, #10-32 x .5" Phillips Price: Call Us |
| 21 |
04020-01 |
Nut, Hex #10-32 Price: Call Us |
| 22 |
04031-01 |
Lock Washer #10 Price: Call Us |
| 23 |
48788 |
Relay Price: Call Us |
| 24 |
04001-01 |
Bolt, Hex Head 1/4-20 x .75" Price: Call Us |
| 25 |
04030-02 |
Lock Washer 1/4" Price: Call Us |
| 26 |
451081 |
Base, Instrument Panel Price: Call Us |
| 27 |
04110-01 |
U-Nut, 1/4-20 Price: Call Us |
| 28 |
48017-02 |
Key & Ring Assembly Price: Call Us |
| 29 |
481791 |
Sender Unit, Water Temperature Price: Call Us |
| 30 |
481812 |
Switch, Low Oil Pressure Price: Call Us |
| 31 |
481811 |
Sender Unit, Oil Pressure Price: Call Us |
| 32 |
481813 |
Manifold, Oil Price: Call Us |
| 33 |
481919 |
Hose, Oil Pressure Sender Price: Call Us |
| 34 |
04002-17 |
Bolt, Hex Head M8-1.25 x 14 Price: Call Us |
| 35 |
48023 |
Hour Meter Price: Call Us |
| 36 |
48030-09 |
Clamp, Cable .5" ID Price: Call Us |
| 37 |
481335 |
Boot, Positive Battery Terminal Price: Call Us |
