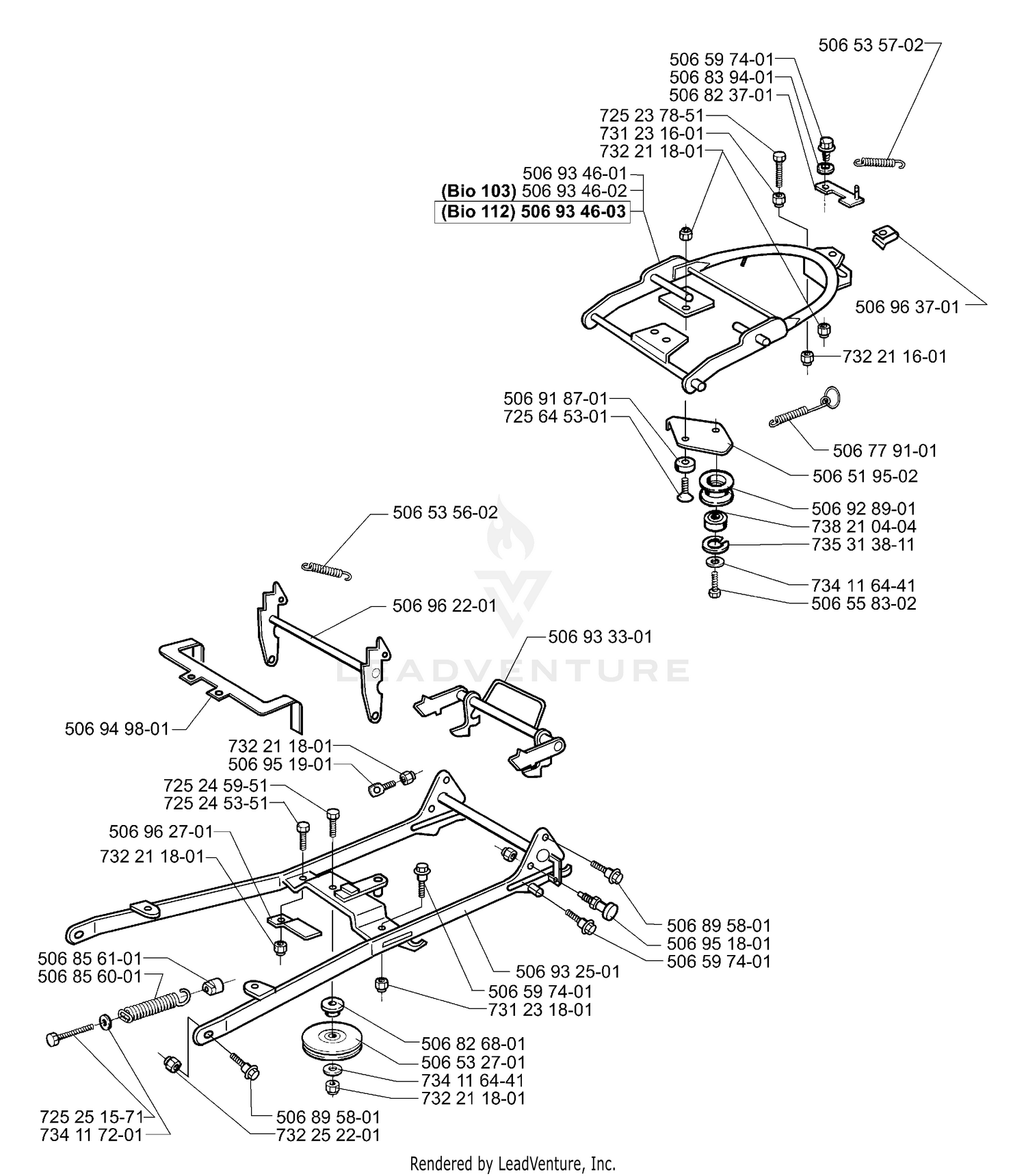

Deck Support
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 506519502 | 506519502 | Price: $30.55 |
| 506532701 | 506532701 | PULLEY Price: $39.99 |
| 506535602 | 506535602 | SPRING Price: $4.99 |
| 506535702 | 506535702 | SPRING Price: $5.99 |
| 506558302 | 506558302 | BOLT Price: $3.99 |
| 506597401 | 506597401 | BOLT Price: $5.99 |
| 506779101 | 506779101 | SPRING Price: $19.99 |
| 506823701 | 506823701 | Price: $42.60 |
| 506826801 | 506826801 | BUSHING Price: $14.99 |
| 506839401 | 506839401 | SPRINGWASHER Price: $3.99 |
| 506856001 | 506856001 | SPRING Price: $28.43 |
| 506856101 | 506856101 | NUT Price: $21.76 |
| 506895801 | 506895801 | BOLT Price: $6.99 |
| 506918701 | 506918701 | SPACER Price: $5.99 |
| 506928901 | 505153901 | BELT TENSIONER WHEEL ASSY This part replaces 506928901. Price: $54.99 |
| 506932501 | 506932501 | FRAME Price: $451.13 |
| 506933301 | 506933301 | CATCH Price: $183.50 |
| 506934601 | 506934601 | Price: $389.80 |
| 506934602 | 506934602 | Price: $366.03 |
| 506934603 | 506934603 | Price: $366.03 |
| 506949801 | 506949801 | STOP Price: $105.04 |
| 506951801 | 506951801 | Price: $30.34 |
| 506951901 | 506951901 | BRACKET Price: $7.64 |
| 506962201 | 506962201 | PROTECTOR Price: $128.08 |
| 506962701 | 506962701 | Price: $46.55 |
| 506963701 | 506963701 | BRACKET Price: $5.99 |
| 725237851 | 725237851 | SCREW Price: $1.58 |
| 725245351 | 725245371 | SCREW This part replaces 725245351. Price: $4.99 |
| 725245951 | 725245951 | SCREW Price: $4.99 |
| 725251571 | 725251571 | Price: $7.84 |
| 725645301 | 725645301 | SCREW Price: $3.99 |
| 731231601 | 731231601 | NUT Price: $2.99 |
| 731231801 | 731231801 | NUT Price: $3.99 |
| 732211601 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 732211801 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 732252201 | 732252201 | Nut Price: $2.65 |
| 734116441 | 734116441 | SPACER Price: $3.99 |
| 734117201 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 735313811 | 735313810 | RETAINING RING This part replaces 735313811. Price: $2.99 |
