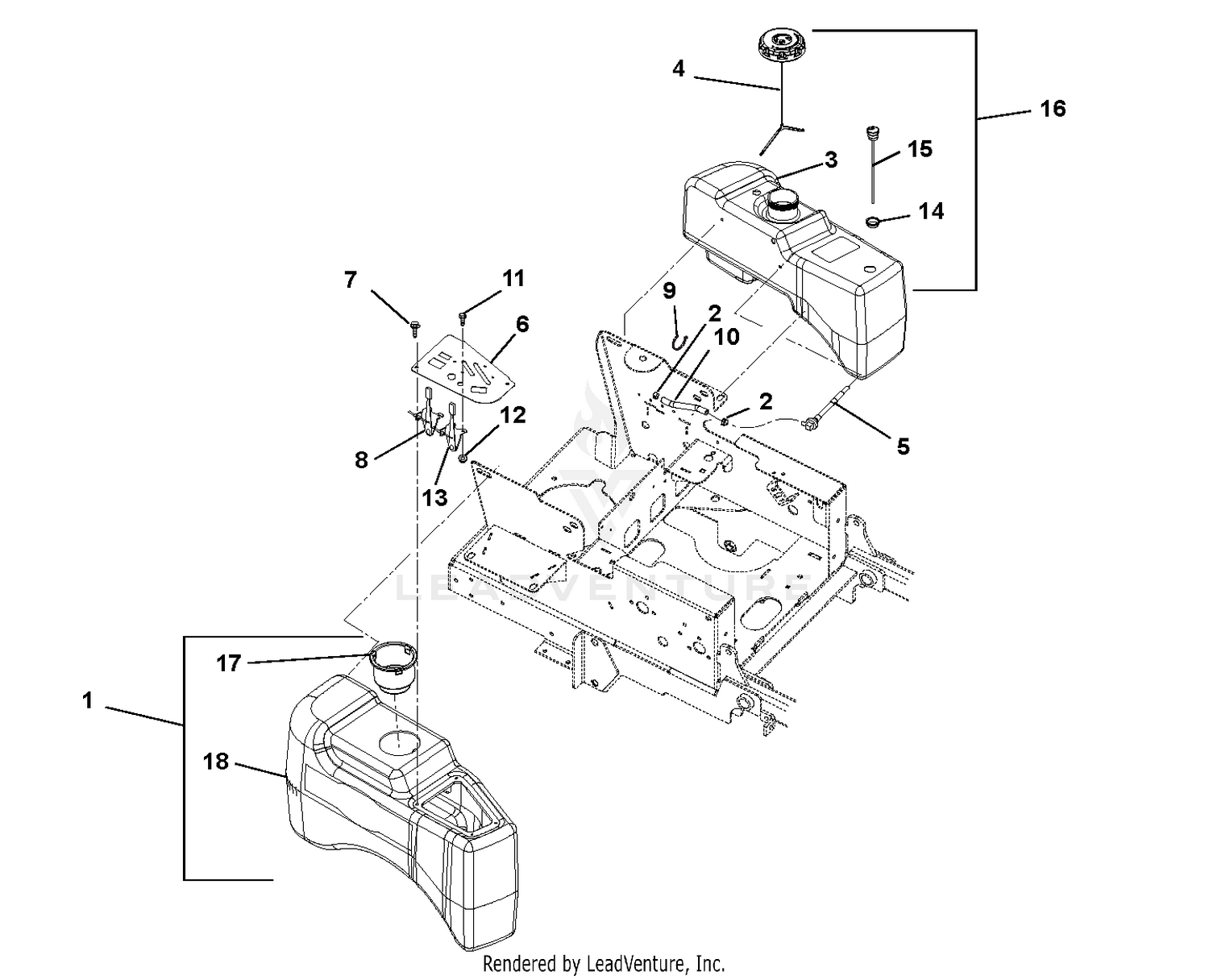

| Ref | Part Number | Description |
|---|
| 2 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 3 |
04739000 |
HD, FUEL TANK ASSEMBLY This part replaces 04391600. Price: $509.95 |
| 5 |
04320900 |
ASM, FUEL PICK-UP SML/MED TANK Price: $35.95 |
| 6 |
04391851 |
INSTRUMENT PANEL - BLK Price: $27.45 |
| 7 |
06100231 |
SCR, PLASTITE-HWH 0.25 X 0.75 ZC120 This part replaces 06100213. Price: $1.45 |
| 9 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 11 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 12 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 14 |
07500034 |
GROMMET, FUEL GAGE Price: $5.95 |
| 15 |
07500538 |
GUAGE-REMOTE SEALED FUEL-10.0" This part replaces 07500029. Price: $37.95 |
| 17 |
04192700 |
CUPHOLDER, SNAP-IN 3.75OD Price: $20.95 |
