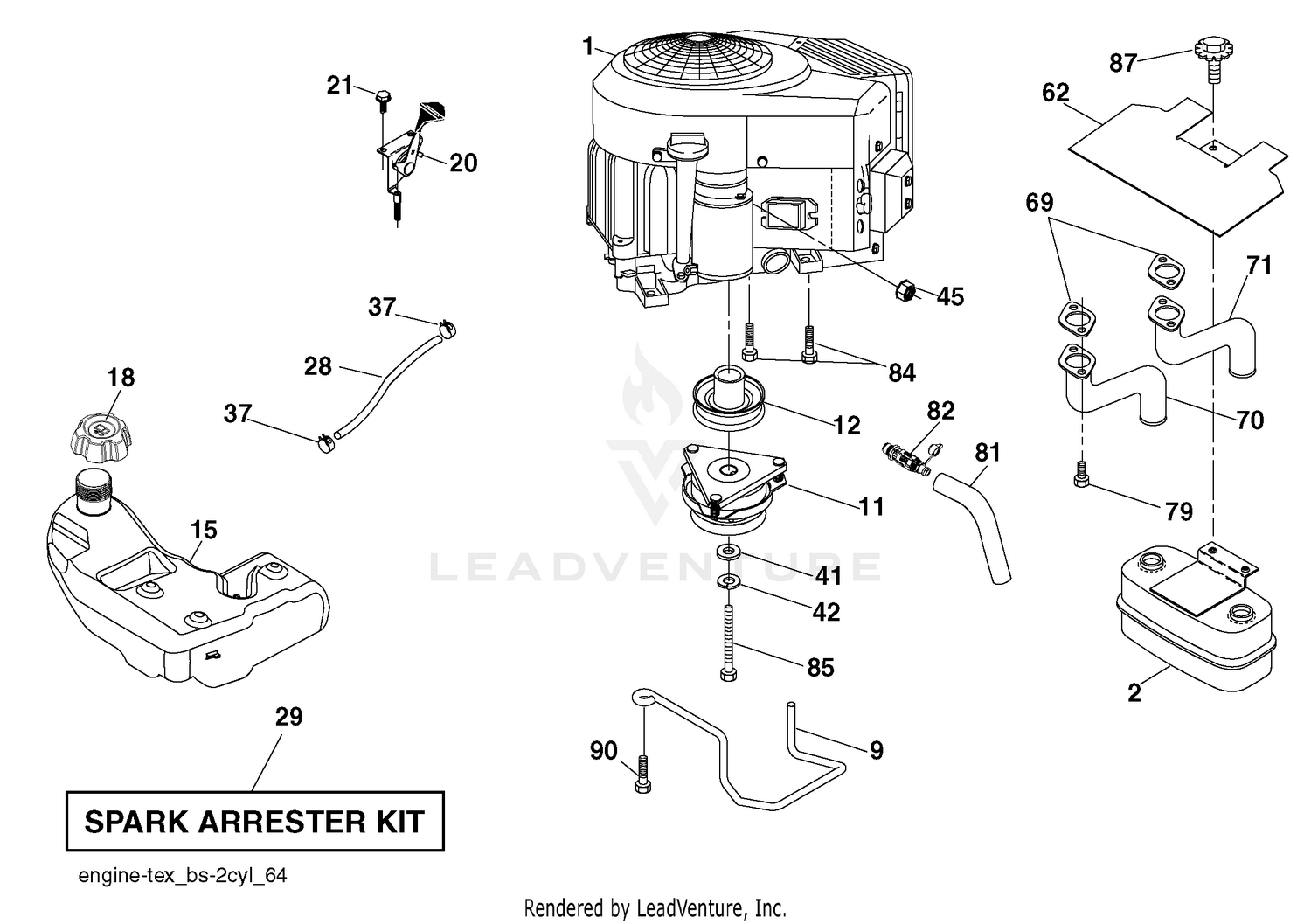

| Ref | Part Number | Description |
|---|
| 1 |
58-6780 |
PLUG Price: $47.43 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
60-6450 |
DISC Price: $12.41 |
| 3 |
58-6760 |
SPRING Price: $17.61 |
| 4 |
58-6770 |
PLUNGER Price: $46.54 |
| 5 |
58-6790 |
O-RING Price: $2.81 |
| 6 |
353-508 |
PLUG-HH This part replaces 58-6710. Price: $7.96 |
| 7 |
58-6720 |
O-RING Price: $1.30 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
60-5720 |
O-RING Price: $1.86 |
| 10 |
58-6370 |
WASHER Price: $40.36 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 11 |
58-6350 |
PLUG Price: $36.88 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 14 |
69-1830 |
PLUG ASM Price: $94.63 |
| 15 |
532400021 |
TANK.FUEL.SIDE-FILL.3.NON-EPA Price: $99.99 |
| 15 |
58-6750 |
O-RING Price: $1.77 |
| 16 |
58-6470 |
WASHER Price: $2.71 |
| 17 |
58-6480 |
WASHER Price: $1.57 |
| 18 |
58-6490 |
WASHER Price: $0.68 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 This part replaces 532430217. Price: $14.99 |
| 19 |
84-6450 |
SPRING Price: $34.35 |
| 20 |
532423502 |
CONTROL.TH/CK.COBRA.B&S.TWN.BK Price: $24.99 |
| 20 |
58-6440 |
POPPET Price: $56.35 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
58-6450 |
O-RING Price: $2.48 |
| 23 |
58-6400 |
BUSHING Price: $37.39 |
| 24 |
58-6700 |
WASHER Price: $1.67 |
| 25 |
58-6730 |
SPRING Price: $13.26 |
| 26 |
58-6310 |
SPACER Price: $108.75 |
| 27 |
58-6460 |
RING-RETAINING Price: $1.22 |
| 28 |
58-6420 |
CAP Price: $42.88 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
69-1840 |
PLUNGER This part replaces 84-6430. Price: $258.13 |
| 30 |
58-6380 |
PLUG Price: $325.92 |
| 31 |
58-6410 |
SPRING Price: $12.58 |
| 32 |
60-6440 |
EYELET Price: $2.04 |
| 33 |
58-6290 |
POPPET Price: $47.04 |
| 35 |
58-6330 |
SEAT Price: $39.50 |
| 36 |
58-6340 |
O-RING Price: $12.86 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
84-6420 |
PLUNGER Price: $346.48 |
| 38 |
58-6320 |
WIPER Price: $10.93 |
| 39 |
84-6400 |
DISC-ORIFICE (.046) Price: $18.55 |
| 40 |
84-6401 |
DISC-ORIFICE (.056) Price: $30.07 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 70 |
581881101 |
EXHAUST.TUBE.LH.BS/TWIN This part replaces 532159955. Price: $27.99 |
| 71 |
581881001 |
EXHAUST.TUBE.RH.B&S.TWIN.INTEK This part replaces 532160589. Price: $22.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
