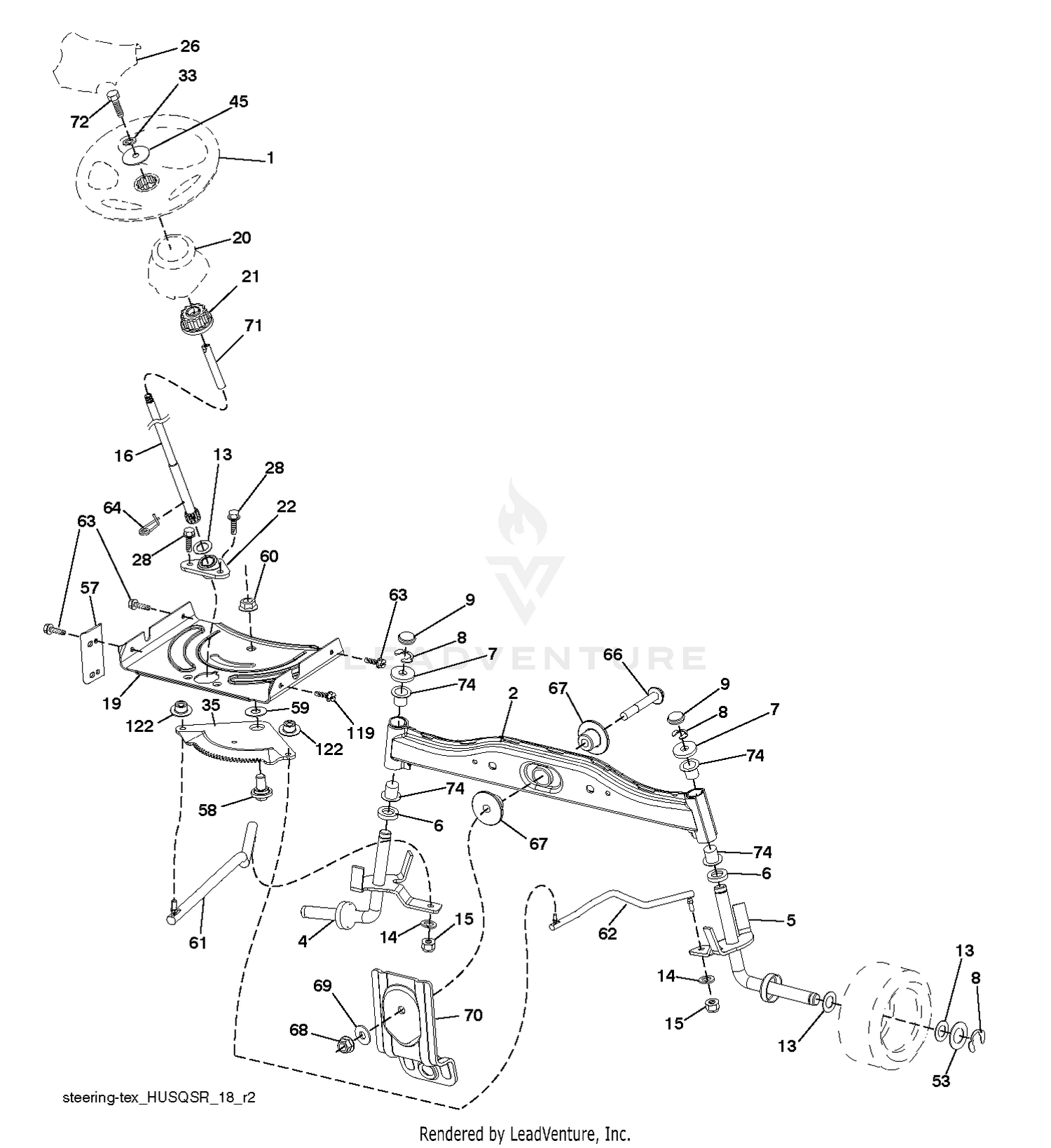

| Ref | Part Number | Description |
|---|
| 1 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 1 |
532439740 |
WHEEL.STEER.HUSQ.SR.498.OVMLD Price: $69.99 |
| 2 |
531171101 |
SERVICE KIT AXLE HALF ASM This part replaces 532418168. Price: $59.99 |
| 3 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 4 |
538690801 |
SPINDLE.WLDMT.LH.13IN BLK.X431 This part replaces 532416845. Price: $37.99 |
| 5 |
538690701 |
SPINDLE.WLDMT.RH.13IN BLK.X431 This part replaces 532416846. Price: $34.99 |
| 5 |
66-8230-01 |
BRACKET-SUPPORT This part replaces 66-8230. Price: $41.51 |
| 6 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 7 |
70-7920 |
PIN-LOCK Price: $21.78 |
| 8 |
12-3270 |
SCREW Price: $3.09 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
66-8420-03 |
END-SPRING ASM This part replaces 66-8420. Price: $52.26 |
| 10 |
46-3380 |
BOLT-SHOULDER Price: $9.57 |
| 11 |
66-8440-01 |
LINK-KNEE This part replaces 66-8440. Price: $9.75 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 13 |
66-8390-03 |
SPRING-EXTENSION This part replaces 66-8390. Price: $35.15 |
| 14 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 14 |
70-7940-03 |
END-SPRING ASM This part replaces 70-7940. Price: $52.21 |
| 15 |
283-69 |
PIN-CLEVIS Price: $3.32 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
587738903 |
KIT.SRVC.STEERINGSHAFT.3HISHFT This part replaces 532429373. Price: $44.99 |
| 16 |
99-1298 |
SPRING COVER ASM This part replaces 70-7970. Price: $56.24 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
532441425 |
STEERING.BOOT.HUSQ.LT Price: $7.99 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532420537. Price: $14.99 |
| 26 |
532439743 |
INSERT.CAP.WHL.STRG.HUSQ.PREM Price: $8.99 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 57 |
532407465 |
BRACKET.UPSTOP.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
532417065 |
BRACKET.SUSP.MWR.FRT.30"SRD Price: $19.99 |
| 71 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 72 |
596039701 |
Bolts This part replaces 532428982. Price: $3.99 |
| 74 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 119 |
532170165 |
SHOULDER BOLT 5/16-18TT Price: $3.99 |
| 122 |
583576601 |
CAP.GEAR.SECTOR.TEX This part replaces 532444962. Price: $4.99 |
