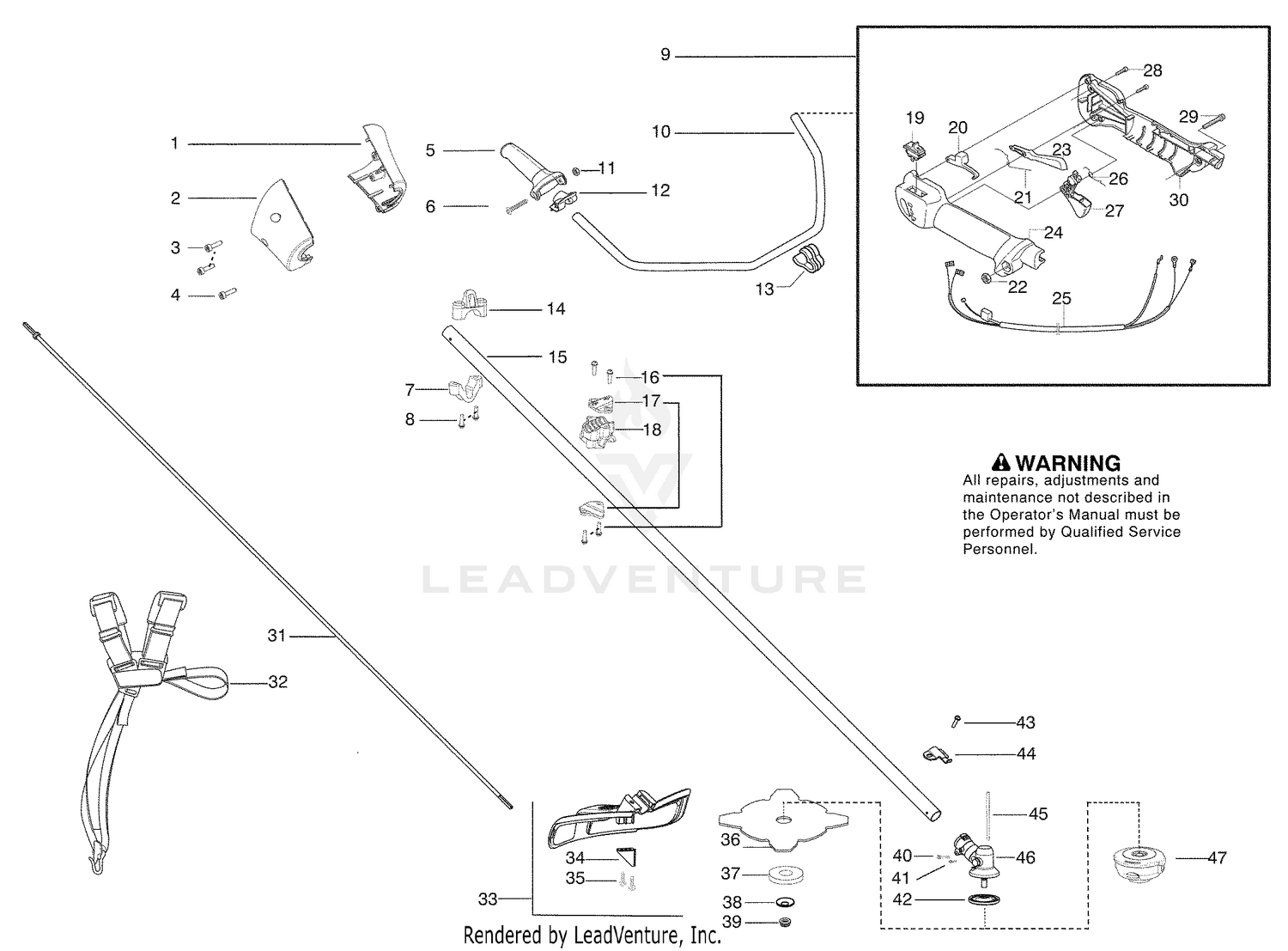

| Ref | Part Number | Description |
|---|
| 1 |
3234-11 |
SCREW-HHF This part replaces 3243-11. Price: $1.23 |
| 1 |
545036401 |
NOSE CONE BH LEFT Price: $3.99 |
| 2 |
545036501 |
NOSE CONE BH RIGHT Price: $3.99 |
| 2 |
76-4230 |
DISCONTINUED Price: Call Us |
| 3 |
530016448 |
SCREW Price: $2.99 |
| 3 |
74-5590 |
GASKET-EXHAUST MANIFOLD Price: $19.77 |
| 4 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 4 |
530016449 |
SCREW M4 X 1.75 PT 16MM Price: $3.99 |
| 5 |
537172802 |
HANDLE Price: $6.99 |
| 5 |
74-6020 |
HOSE-RADIATOR, LOWER Price: $48.93 |
| 6 |
503200245 |
SCREW Price: $3.99 |
| 6 |
74-6000 |
DISCONTINUED Price: Call Us |
| 7 |
76-9980 |
DISCONTINUED Price: Call Us |
| 8 |
530015940 |
SCREW Price: $2.99 |
| 8 |
76-9990 |
FOAM - AIR CLEANER Price: $45.17 |
| 9 |
76-8770 |
DECAL - CAUTION, STRT Price: $16.97 |
| 10 |
322-3 |
SCREW-HH Price: $0.79 |
| 10 |
502199503 |
HANDLE Price: $29.99 |
| 11 |
3234-15 |
SCREW-HHF Price: $1.97 |
| 11 |
731231401 |
NUT Price: $1.99 |
| 12 |
537172901 |
BRACKET Price: $4.99 |
| 12 |
77-3880 |
AIR CLEANER BRKT * B Price: $176.43 |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
502211201 |
GROMMET Price: $3.99 |
| 14 |
74-5980 |
DISCONTINUED Price: Call Us |
| 15 |
2112-9 |
CLAMP Price: $7.78 |
| 16 |
530015814 |
SCREW Price: $0.17 |
| 16 |
74-6090 |
EXHAUST PIPE Price: $67.31 |
| 17 |
32128-13 |
NUT-HF Price: $1.79 |
| 17 |
530058563 |
CLAMP BRACKET Price: $2.99 |
| 18 |
32128-19 |
NUT-HF Price: $0.99 |
| 18 |
545058501 |
CLAMP Price: $9.99 |
| 19 |
537419001 |
STOP BUTTON Price: $7.99 |
| 19 |
92-2565 |
DISCONTINUED Price: Call Us |
| 20 |
537160703 |
STARTER THROTTLE LOCK This part replaces 537160701. Price: $4.99 |
| 20 |
77-3700 |
GASKET-MUFFLER, EXHAUST Price: $27.34 |
| 21 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 21 |
537174301 |
SPRING Price: $3.99 |
| 22 |
503221013 |
NUT Price: $3.99 |
| 22 |
74-6030 |
DISCONTINUED Price: Call Us |
| 23 |
506495101 |
THROTTLE LOCKOUT Price: $3.99 |
| 23 |
74-4900 |
DISCONTINUED Price: Call Us |
| 24 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 24 |
537160203 |
HANDLE Price: $17.99 |
| 25 |
545125801 |
ASSY CABLE WIRE HARNESS Price: $27.99 |
| 25 |
74-6490 |
HOSE-LINE, WATER Price: $4.86 |
| 26 |
537174201 |
SPRING Price: $4.99 |
| 27 |
506495001 |
THROTTLE CONTROL Price: $4.99 |
| 28 |
503216618 |
SCREW Price: $3.99 |
| 29 |
503200782 |
SCREW IHSCFM This part replaces 503200735. Price: $3.99 |
| 30 |
537160301 |
HANDLE Price: $14.99 |
| 31 |
545007507 |
FLEXSHAFT 57" Price: $24.99 |
| 32 |
537216301 |
HARNESS DUO Price: $49.99 |
| 34 |
530052286 |
Limiter - Line Price: $0.68 |
| 35 |
530015814 |
SCREW Price: $0.17 |
| 36 |
596278001 |
HUS 10" GRASSBLADE 255-4T 1" This part replaces 504001303. Price: $22.99 |
| 37 |
503890101 |
SUPPORTING CUP Price: $14.99 |
| 38 |
537285601 |
SUPPORT FLANGE Price: $9.99 |
| 39 |
503856301 |
GEARHEAD NUT - BRUSHCUTTER Price: $5.99 |
| 40 |
530016014 |
SCREW - CARB. ADAPTOR Price: $2.99 |
| 41 |
545003902 |
SCREW Price: $2.99 |
| 42 |
537234901 |
DRIVE DISC Price: $19.99 |
| 43 |
530015771 |
SCREW 1/4-20 X 7/8 (TAP Price: $3.99 |
| 44 |
530057554 |
BRACKET SHIELD STRAIGHT SHAFT Price: $4.99 |
| 45 |
502285901 |
LOCKING PIN Price: $4.99 |
| 46 |
530096295 |
ASSY GEARBOX Price: $34.99 |
| 47 |
537338310 |
TRIMMER HEAD T25 This part replaces 537338306. Price: $27.99 |
