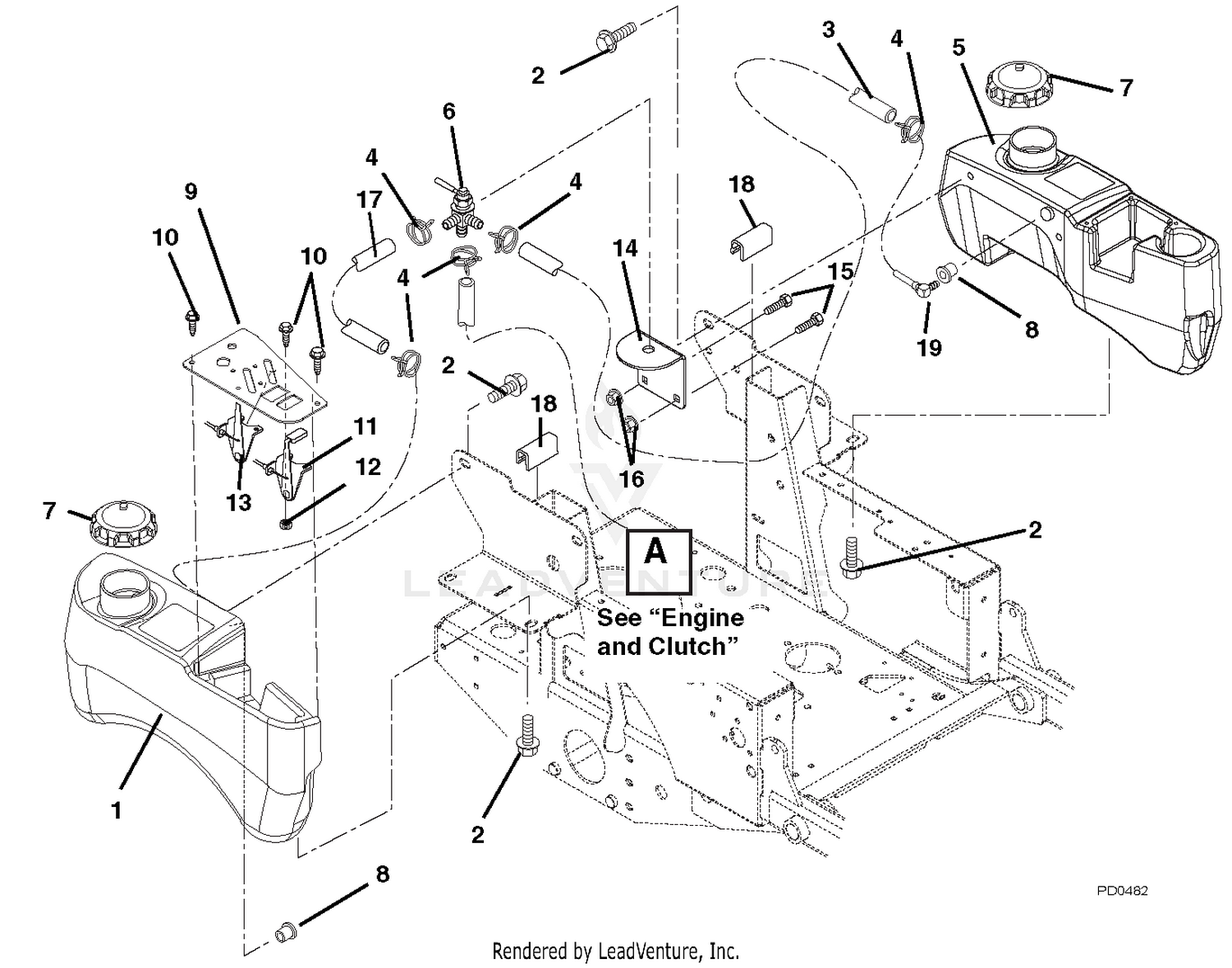

| Ref | Part Number | Description |
|---|
| 1 |
03973100 |
TANK,RH FUEL,HD Price: $230.55 |
| 2 |
07000018 |
BOLT, SEMS .31-18 X .62 Price: $3.45 |
| 4 |
03278800 |
CLAMP, FUEL LINE Price: $0.95 |
| 5 |
03973200 |
TANK,LH FUEL,HD Price: $231.45 |
| 6 |
09258200 |
VALVE, FUEL Price: $42.95 |
| 7 |
03859100 |
CAP, FUEL Price: $25.45 |
| 9 |
04041751 |
PANEL - CONTROL Price: $13.95 |
| 10 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 11 |
06900002 |
CABLE, THROTTLE-CHOKE Price: $46.95 |
| 12 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 13 |
06949500 |
CABLE, CHOKE Price: $36.45 |
| 14 |
00361951 |
BRKT, FUEL VALVE MNTG Price: $6.45 |
| 15 |
06200232 |
BLT,RHSN .31-18X.75 G5 ZCC This part replaces 06215700. Price: $2.45 |
| 16 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 18 |
00918200 |
STRIP, COWL Price: $5.45 |
