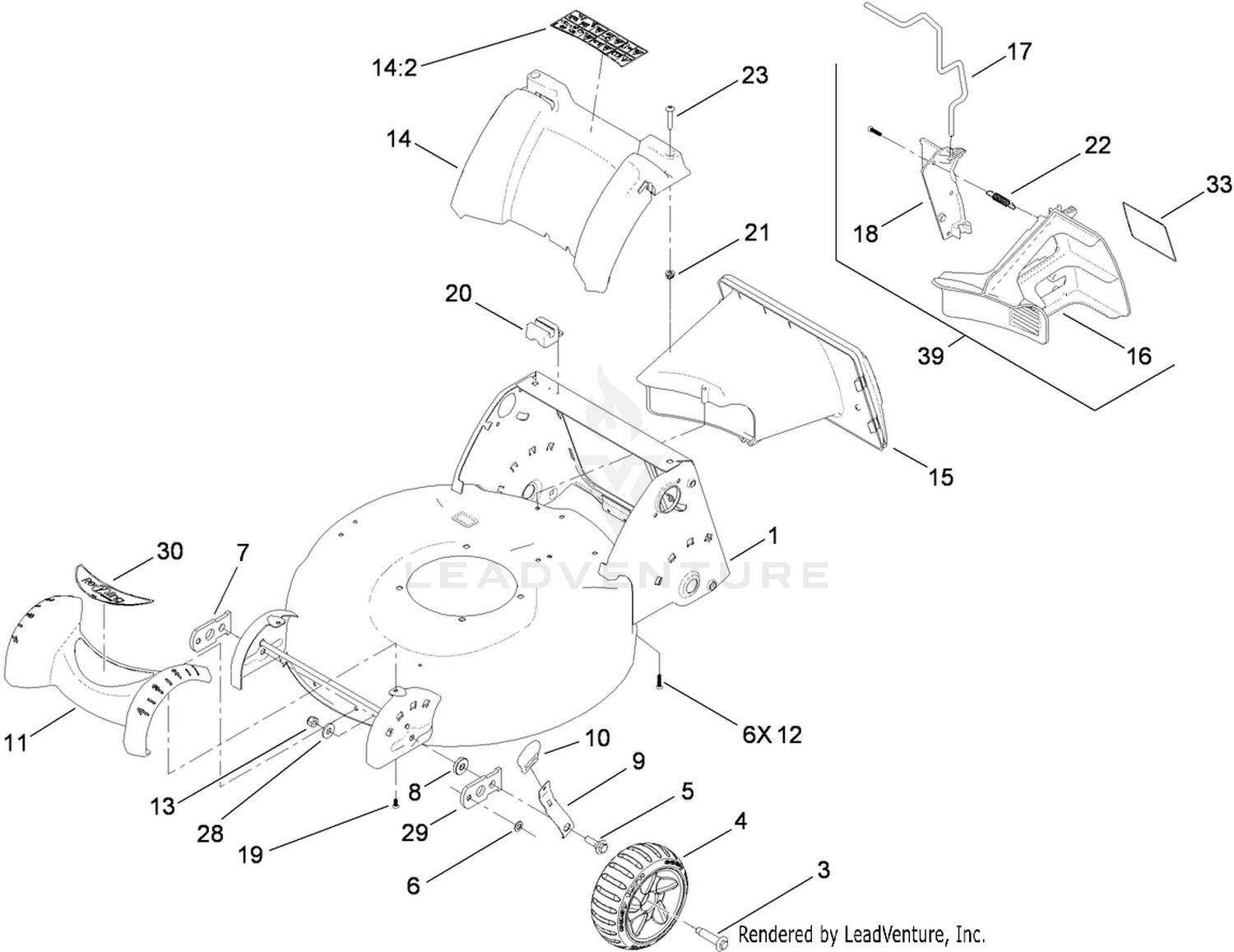

| Ref | Part Number | Description |
|---|
| 1 |
117-4193 |
DECK ASM Price: $150.74 |
| 3 |
614650 |
BOLT-SHOULDER Price: $3.28 |
| 5 |
614672 |
SCREW-SHOULDER, HWH Price: $2.59 |
| 6 |
40-1940 |
WASHER Price: $1.59 |
| 7 |
107-3877 |
ARM-PIVOT, RH Price: $8.02 |
| 8 |
92-4890 |
WASHER Price: $5.67 |
| 9 |
107-3878 |
ARM-SPRING Price: $7.85 |
| 10 |
110-0549 |
KNOB-HOC Price: $1.08 |
| 11 |
107-3926 |
COVER-FRONT Price: $26.90 |
| 12 |
108-7476 |
SCREW-PLASTITE Price: $0.61 |
| 13 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 14 |
115-3177 |
REAR COVER ASM Price: $32.26 |
| 15 |
110-9455 |
TUNNEL Price: $28.58 |
| 16 |
110-9446 |
PLUG-MULCH, LH Price: $15.50 |
| 17 |
110-9448 |
LATCH-PLUG, MULCH Price: $11.41 |
| 18 |
110-9447 |
PLUG-MULCH, RH Price: $6.93 |
| 19 |
108-7475 |
SCREW-PLASTITE Price: $2.63 |
| 20 |
108-0993 |
MODULE-SWITCH Price: Call Us |
| 21 |
94-1610 |
NUT-CLIP Price: $0.66 |
| 22 |
110-9458 |
SPRING-EXTENSION Price: $2.31 |
| 23 |
108-0965 |
SCREW-PTH Price: $0.88 |
| 28 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 29 |
108-1044 |
ARM-PIVOT, LH Price: $6.44 |
| 30 |
117-5916 |
DECAL-FRONT Price: $5.65 |
| 33 |
110-9457 |
DECAL-PLUG, MULCH Price: $5.79 |
