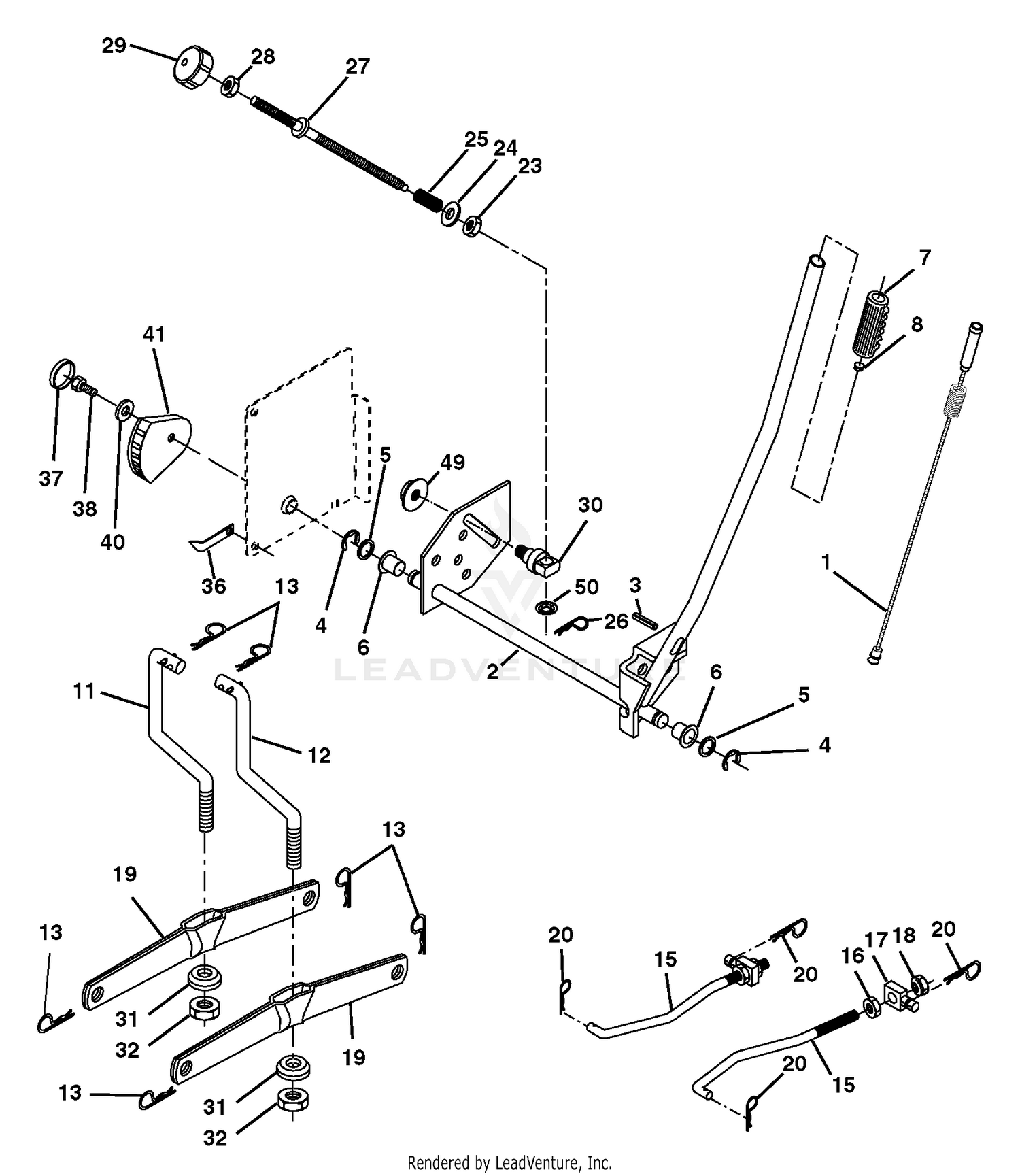

Lift Assembly

Lift Assembly

Parts (33)

RefPart NumberDescription
1 159460 Lift Lever Inner Wire Assembly Price: Call Us
2 159471 Shaft Assembly, Lift Price: Call Us
3 105767X Pin, Groove Price: Call Us
4 12000002 E-Ring Price: Call Us
5 19211621 Washer 21/32 x 1 x 21 Gauge Price: Call Us
6 120183X Bearing, Nylon Price: Call Us
7 109413X Grip, Handle Price: Call Us
8 124526X Button, Plunger Price: Call Us
11 139865 Link, Lift, L.H. Price: Call Us
12 139866 Link, Lift, R.H. Price: Call Us
13 4939M Retainer Spring Price: Call Us
15 173288 Link, Front Price: Call Us
16 73350800 Nut, Hex, Jam 1/2-13 Unc Price: Call Us
17 175689 Trunnion Price: Call Us
18 73800800 Locknut, Hex, with Washer Insert 1/2-13 Unc Price: Call Us
19 139868 Arm, Suspension, Rear Price: Call Us
20 163552 Retainer Spring Price: Call Us
23 110807X Nut Special Price: Call Us
24 19131016 Washer 13/32 x 5/8 x 16 Ga. Price: Call Us
25 2876H Spring 2-1/8 Price: Call Us
26 169484 Retainer Clip Price: Call Us
27 126971X Rod Adj. Lift Price: Call Us
28 73350600 Nut Hex Jam 3/8-16 Price: Call Us
29 138057 Knob Inf. 3/8-16 Price: Call Us
30 150233 Trunnion Infin. Height Price: Call Us
31 169865 Bearing, Pvt, Lift Price: Call Us
32 73540600 Nut, Crownlock 3/8-24 Price: Call Us
36 155097 Pointer Height Indicator Price: Call Us
37 123935X Plug Hole Price: Call Us
38 17060516 Screw 5/16-18 x 1 Price: Call Us
40 19112410 Washer 11/32 x 1-1/2 10 Ga. Price: Call Us
41 155098 Indicator Height Price: Call Us
49 145212 Nut Hex Flange Lock Price: Call Us
