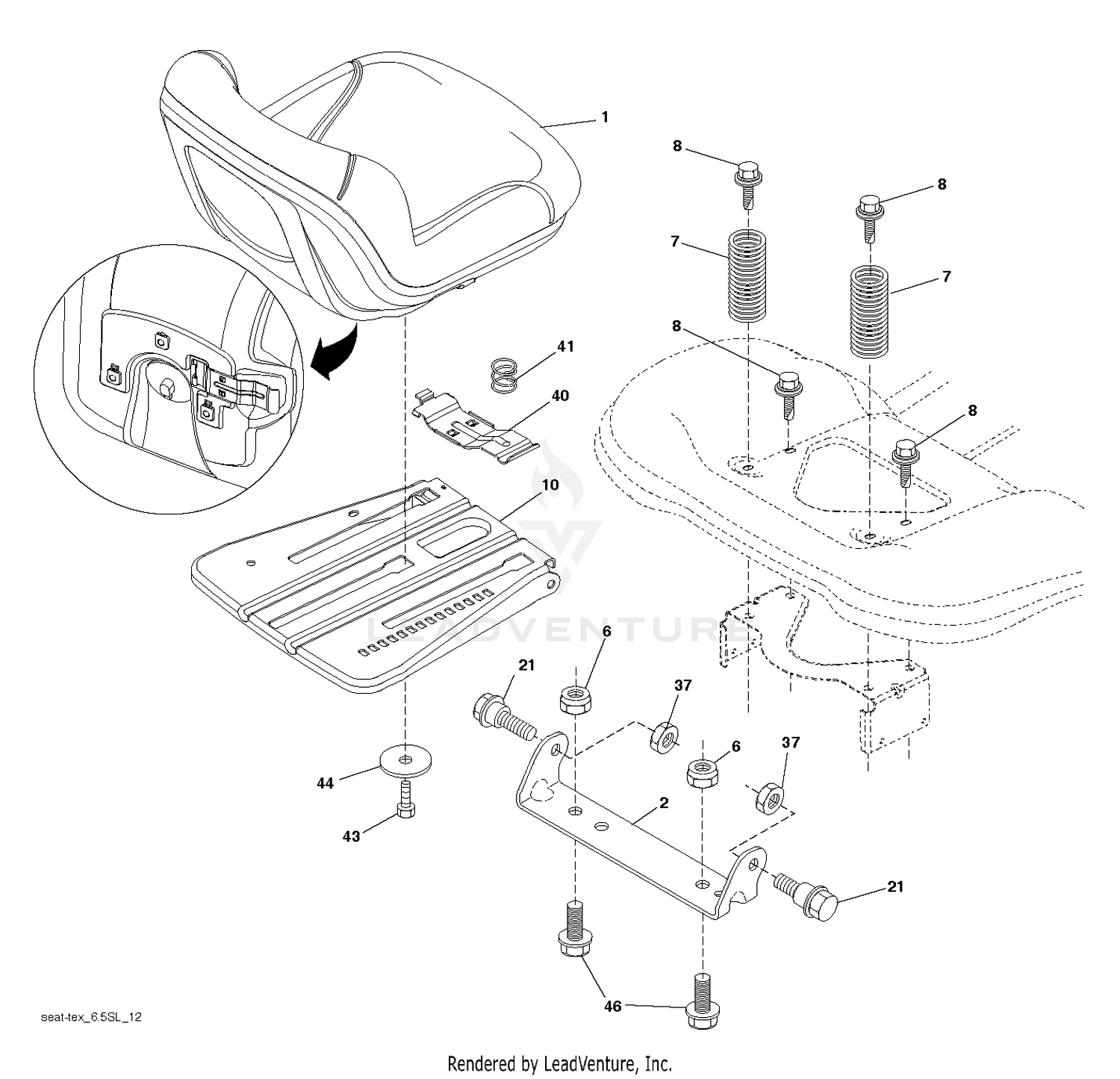

| Ref | Part Number | Description |
|---|
| 1 |
532439822 |
SEAT.TH150.MS498.GRY.HUSQ.TEX Price: $159.99 |
| 2 |
532180166 |
BRKT.PIVOT.FENDER Price: $11.99 |
| 2 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 3 |
2412-133 |
CLAMP-R Price: $3.19 |
| 4 |
67-8820-01 |
RH HINGE ASM This part replaces 67-8820. Price: $26.10 |
| 5 |
43-3900-03 |
FAN BELT GUARD ASM This part replaces 43-3900. Price: $290.98 |
| 6 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
589483501 |
SPRING.COMPRESS.SEAT.TAPERED Price: $7.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 9 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 10 |
596768801 |
KIT.PLATE.SEAT This part replaces 532196977. Price: $49.99 |
| 10 |
67-8810-01 |
LH HINGE ASM This part replaces 67-8810. Price: $26.95 |
| 11 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 12 |
67-8190-01 |
BRACKET-SUPPORT, ENGINE This part replaces 67-8190. Price: $50.66 |
| 13 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 14 |
3290-357 |
NUT-HHF, WHIZ Price: $0.61 |
| 15 |
321-2 |
SCREW-HH Price: $2.79 |
| 16 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 17 |
27-9810-01 |
SEAT PIVOT ASM This part replaces 27-9810. Price: $80.36 |
| 18 |
212-93 |
CLAMP-CASING Price: $3.46 |
| 19 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 20 |
29-6930 |
DISCONTINUED-SEE PB#936 Price: Call Us |
| 21 |
322-2 |
SCREW-HH Price: $0.69 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER Price: $2.99 |
| 37 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 40 |
595088102 |
Handles This part replaces 532439871. Price: $4.99 |
| 41 |
532198200 |
SPRING.LATCH.SEAT.TEX Price: $3.99 |
| 43 |
874760612 |
BOLT Price: $3.99 |
| 44 |
583789501 |
WASHER.13/32x2 3/8x12GA This part replaces 819133812. Price: $4.99 |
