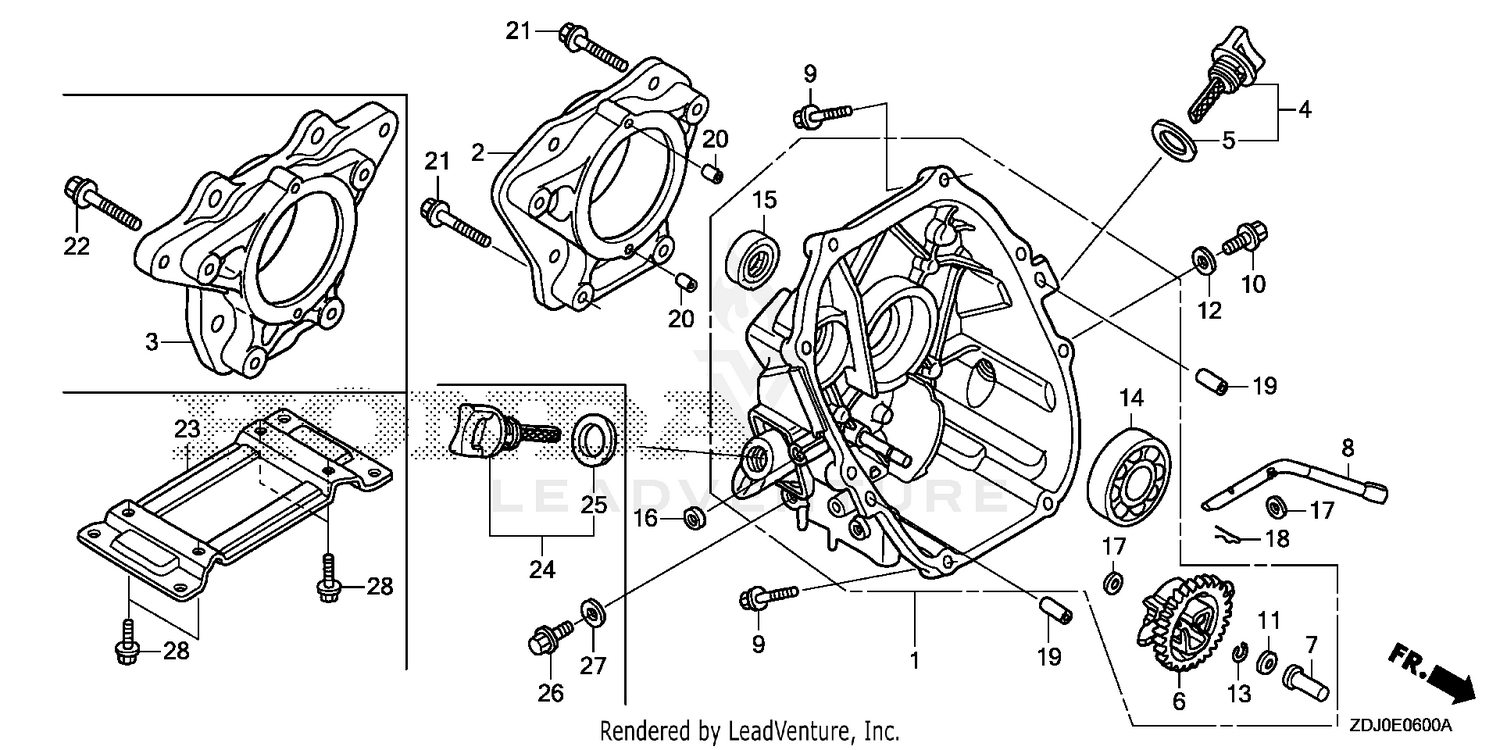

| Ref | Part Number | Description |
|---|
| 1 |
11300-ZDJ-407 |
COVER ASSY., CRANKCASE Price: Call Us |
| 4 |
15600-ZDF-000 |
CAP ASSY., OIL FILLER Price: $1.58 |
| 5 |
15625-Z0T-800 |
GASKET, OIL FILLER CAP (Honda Code 7346588). Price: $4.92 |
| 6 |
16510-ZL8-000 |
GOVERNOR ASSY. Price: $11.88 |
| 7 |
16531-ZE1-000 |
SEE PART DETAILS - PRI; SLIDER, GOVERNOR Price: $3.54 |
| 8 |
16541-Z0D-000 |
SHAFT, GOVERNOR ARM Price: $8.36 |
| 9 |
90121-952-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819. Price: $2.82 |
| 10 |
90131-ZE1-000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG Price: $3.04 |
| 11 |
90451-ZE1-000 |
SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862). Price: $1.98 |
| 12 |
90601-ZE1-000 |
WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583). Price: $0.68 |
| 13 |
90602-ZE1-000 |
SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697). Price: $1.74 |
| 14 |
91001-878-003 |
BEARING, RADIAL BALL (62/22) (Honda Code 0442061). Price: $37.88 |
| 15 |
91203-ZE0-013 |
SEE PART DETAILS - PRI; OIL SEAL (22X41X6) (Honda Code 7424484). Price: $10.48 |
| 17 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 18 |
94251-08000 |
SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527). Price: $1.54 |
| 19 |
94301-08200 |
SEE PART DETAILS - PRI; PIN, DOWEL (8X20) Price: $2.82 |
| 23 |
12351-Z0D-T00 |
BED, ENGINE Price: $28.74 |
| 24 |
15600-ZDF-000 |
CAP ASSY., OIL FILLER Price: $1.58 |
| 25 |
15625-Z0T-800 |
GASKET, OIL FILLER CAP (Honda Code 7346588). Price: $4.92 |
| 26 |
90131-ZE1-000 |
SEE PART DETAILS - PRI; BOLT, DRAIN PLUG Price: $3.04 |
| 27 |
90601-ZE1-000 |
WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583). Price: $0.68 |
