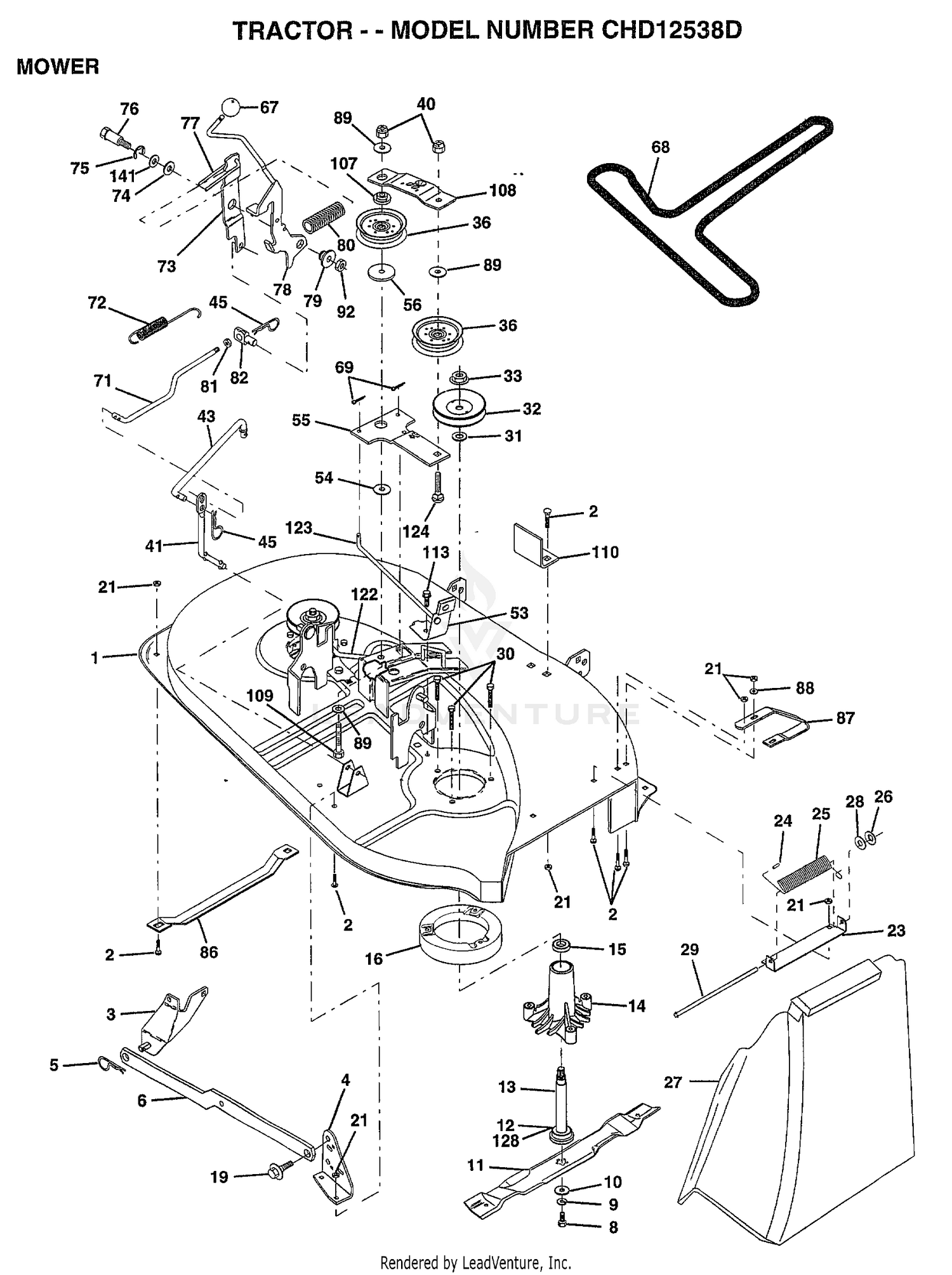

| Ref | Part Number | Description |
|---|
| 1 |
142829 |
SUB= 145775 Price: Call Us |
| 1 |
3250-20 |
SCREW-PPH Price: $5.39 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
86-0790 |
INSERT-COVER Price: $6.89 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
86-1900-03 |
DISCONTINUED This part replaces 86-1900. Price: Call Us |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 5 |
86-1840 |
DISCONTINUED Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
86-0770 |
DECAL-QUADFLOAT Price: $62.08 |
| 7 |
86-1860 |
DISCONTINUED Price: Call Us |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 8 |
86-1870 |
DISCONTINUED Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
86-1890-03 |
HINGE This part replaces 86-1890. Price: $5.75 |
| 11 |
86-1920 |
SPRING-TORSION Price: $25.52 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
32128-20 |
NUT-HF Price: $0.99 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 13 |
323-15 |
SCREW-HH Price: $1.53 |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
86-2660-01 |
STOP-COVER This part replaces 86-2660. Price: $25.82 |
| 15 |
110485X |
BEARING Price: Call Us |
| 15 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 16 |
86-1880 |
COVER-CENTER, LH Price: $257.23 |
| 17 |
86-1850 |
COVER-DECK, LH Price: $303.18 |
| 18 |
3256-67 |
WASHER Price: $0.49 |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 23 |
137607 |
BRKT DEFLECTOR Price: Call Us |
| 24 |
105304X |
CAP-SLEEVE LT Price: Call Us |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 26 |
110452X |
NUT PUSH M Price: Call Us |
| 27 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 28 |
19111016 |
WASHER Price: Call Us |
| 29 |
106735X |
ROD-HINGE T Price: Call Us |
| 31 |
129963 |
WASHER Price: Call Us |
| 32 |
153532 |
PULLEY.MANDREL.38 Price: Call Us |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 43 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 45 |
4497H |
RETAINER M Price: Call Us |
| 53 |
130840 |
BRAKE ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
133840 |
IDLER ARM ASSY Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 67 |
162132 |
KNOB.RD.7/16-14 Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 69 |
76020312 |
SUB= 3145 Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
160570 |
LEVER.ASM.CLUTCH Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 86 |
7631J |
RUNNER-LH M Price: Call Us |
| 87 |
128772 |
RUNNER RH Price: Call Us |
| 88 |
19111216 |
WASHER M Price: Call Us |
| 89 |
19131612 |
WASHER GT Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 107 |
133502 |
RETAINER SPACER Price: Call Us |
| 108 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 109 |
74760640 |
BOLT Price: Call Us |
| 110 |
142587 |
UPSTOP DECK FT 38 Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 122 |
131289 |
BRAKE ROD LH Price: Call Us |
| 123 |
131288 |
BRAKE ROD RH Price: Call Us |
| 124 |
72110614 |
BOLT Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 141 |
6266H |
WASHER .T Price: Call Us |
| 145758 |
DECK.SERV.38.HLMC |
Price: Call Us 145758 |
