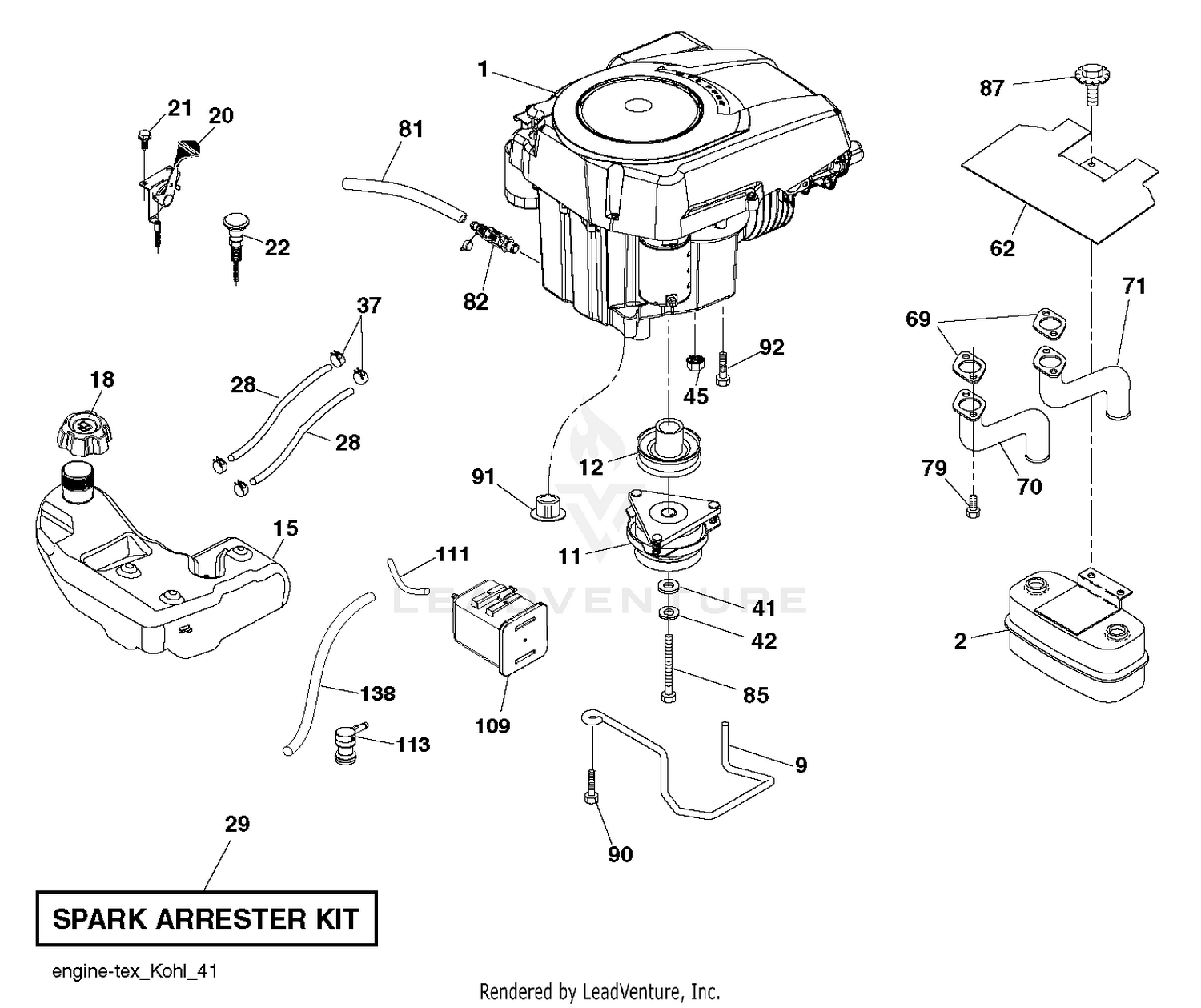

| Ref | Part Number | Description |
|---|
| 1 |
161-8350 |
COIL ASM This part replaces 88-9190. Price: $111.53 |
| 2 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 2 |
93-7491 |
CARTRIDGE-PILOT CHECK Price: $237.81 |
| 4 |
93-7492 |
CARTRIDGE-RELIEF Price: $254.78 |
| 5 |
353-990 |
PLUG ASM Price: $10.01 |
| 6 |
237-78 |
O-RING Price: $3.85 |
| 7 |
94-2685 |
CARTRIDGE-N.C., SPOOL This part replaces 88-6990. Price: $395.76 |
| 8 |
95-5639 |
VALVE-SOLENOID This part replaces 92-3071. Price: $325.77 |
| 9 |
596501502 |
Keepers This part replaces 532194320. Price: $9.99 |
| 9 |
95-3459 |
CARTRIDGE-N.O. FLOW CONTROL Price: $394.99 |
| 10 |
88-9200 |
COIL-SOLENOID Price: $171.88 |
| 11 |
237-156 |
O-RING Price: $1.07 |
| 11 |
532414336 |
KIT.SVC.CLUTCH.ELECTRIC. This part replaces 532400008. Price: $329.99 |
| 12 |
353-991 |
PLUG-HEX, HOLLOW Price: $10.21 |
| 13 |
161-8352 |
VALVE AND COIL KIT This part replaces 93-7494. Price: $347.93 |
| 14 |
353-989 |
PLUG-HEX, HOLLOW Price: $21.59 |
| 15 |
237-42 |
O-RING Price: $2.78 |
| 15 |
529999102 |
TANK ASSY W/CAP 3 GAL CARB This part replaces 532414151. Price: $329.99 |
| 16 |
75-0920 |
CARTRIDGE-RELIEF Price: $370.39 |
| 17 |
139-6007 |
CARTRIDGE-POPPET, NC This part replaces 88-6980. Price: $531.50 |
| 18 |
139-6007 |
CARTRIDGE-POPPET, NC This part replaces 92-6315. Price: $531.50 |
| 18 |
532439208 |
CAP.ASM.FL.RITCH.3"E10.SYM.498 Price: $37.99 |
| 19 |
94-5438 |
SEAL-WASHER Price: $3.56 |
| 20 |
532175437 |
CONTROL.THROTTLE.BLACK This part replaces 532178385. Price: $24.99 |
| 20 |
94-3077 |
PLUG - ORIFICE (.060) Price: $26.07 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 21 |
94-8140 |
PLUG-ORIFICE (.047) Price: $24.85 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 85 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 87 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 111 |
532420718 |
PURGE.LINE.36"REAR.CALIFORNIA Price: $6.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
| 138 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
