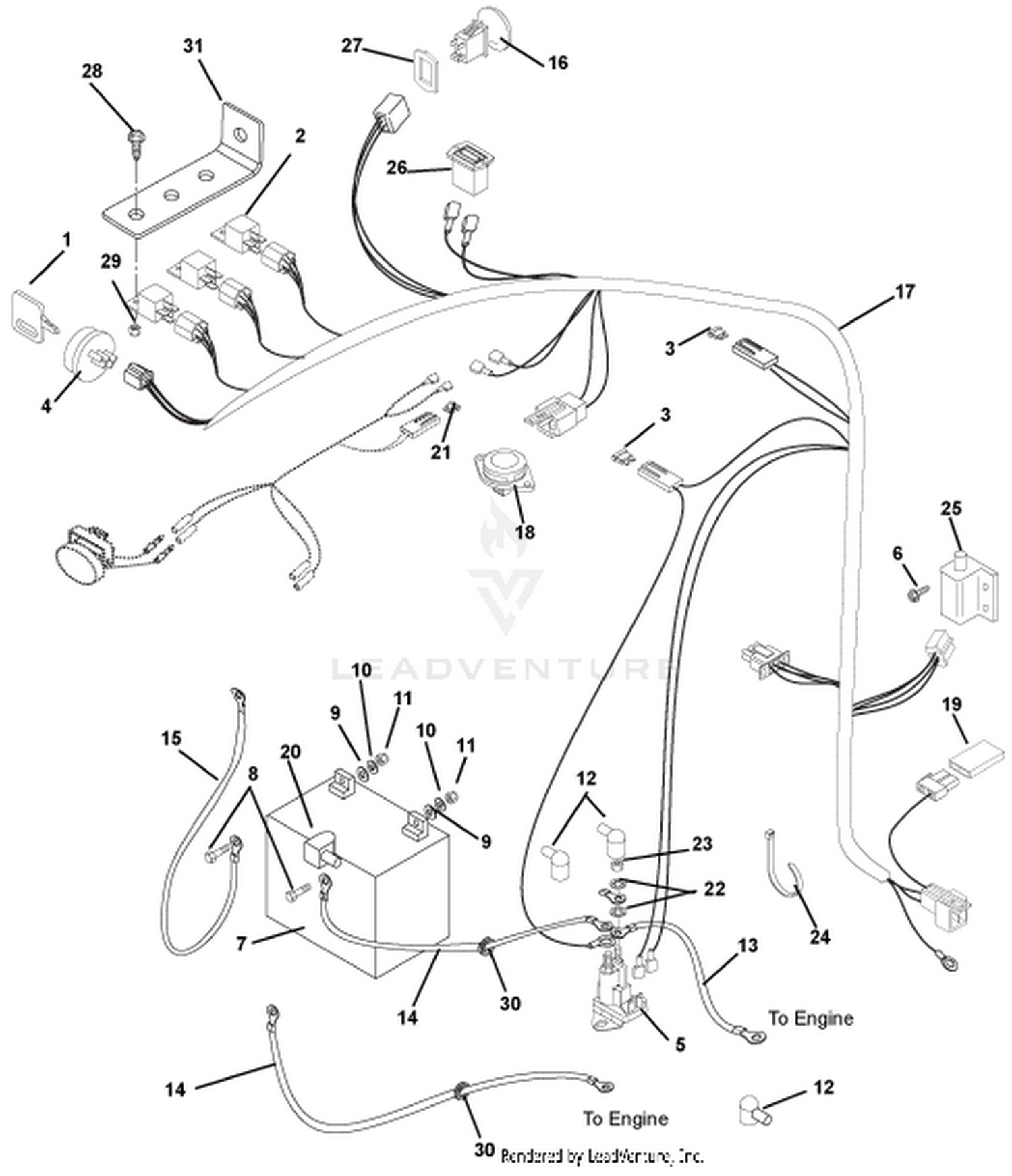

| Ref | Part Number | Description |
|---|
| 1 |
02460700 |
KEY -W/CAP Price: $9.45 |
| 2 |
00432101 |
RELAY,SEALED W/DIODE This part replaces 00432100. Price: $19.95 |
| 3 |
08961800 |
FUSE,25 AMP This part replaces 09351100. Price: $3.45 |
| 4 |
01588300 |
KEY SWITCH Price: $28.95 |
| 5 |
59223400 |
KIT, SEALED SOLENOID ADAPTER This part replaces 00696900. Price: $55.45 |
| 6 |
07400130 |
SCR,TAP #10-24X.50 HWH TR ZCC This part replaces 07415800. Price: $1.95 |
| 7 |
01554800 |
BATTERY, 300 CCA 10U1L Price: $47.95 |
| 8 |
05901716 |
BLT- HEX .25-20X.75 G5 ZCC This part replaces 05946800. Price: $0.95 |
| 9 |
06401001 |
WSHR,FLT .281X.625X.065 ZCC This part replaces 06437300. Price: $0.45 |
| 10 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 11 |
06500916 |
NUT-STD .250-20 G2 ZCC This part replaces 06533200. Price: $0.45 |
| 12 |
07533200 |
BOOT, EYELET TERMINAL Price: $3.45 |
| 13 |
00145900 |
STARTER CABLE 6.75" Price: $11.95 |
| 14 |
02727900 |
STARTER CABLE 16" Price: $32.45 |
| 15 |
03111101 |
CABLE, GROUND 22.00" This part replaces 03111100. Price: $18.45 |
| 16 |
01545600 |
SWITCH, CLUTCH Price: $23.95 |
| 17 |
00363401 |
WIRE HARNESS, ZT XL/ZOOM CE This part replaces 00363400. Price: $164.95 |
| 19 |
09293501 |
DIODE, CONNECTOR SHELL This part replaces 09293500. Price: $10.45 |
| 20 |
07505700 |
INSULATOR Price: $8.95 |
| 21 |
00580600 |
FUSE 20AMP Price: $5.95 |
| 22 |
06310500 |
WSHR-LOCK INT .31 YWZC Price: $0.45 |
| 23 |
06500923 |
NUT-JAM .312-24 ZCC This part replaces 06536700. Price: $0.95 |
| 24 |
07517300 |
CABLE TIE LG 5-1/2 Price: $2.95 |
| 25 |
03606600 |
SWITCH- DOUBLE POLE N.O./N.O. Price: $15.45 |
| 26 |
59208200 |
KIT - HOUR METER This part replaces 04935700. Price: $55.45 |
| 27 |
00289200 |
SHIM,PTO SW (DELTA #972301) Price: $2.55 |
| 28 |
05901825 |
BLT, HWH #10-24X.50 ZCC This part replaces 06116700. Price: $0.45 |
| 29 |
06500915 |
NUT-LK-NYL #10-24 G2 ZCC This part replaces 06536000. Price: $0.45 |
| 30 |
07506500 |
GROMMET 1.0ID X 1.38 OD Price: $3.45 |
