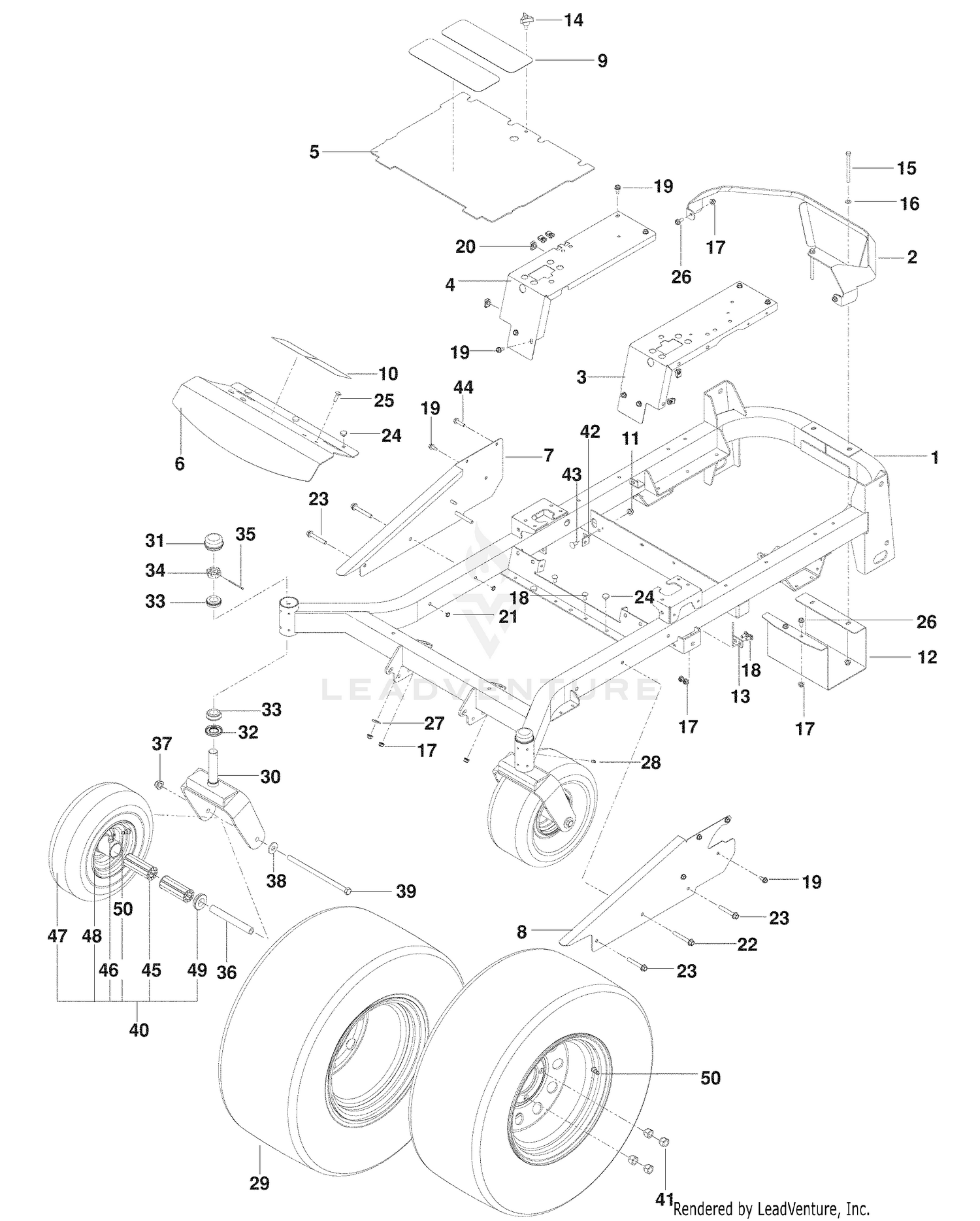

| Ref | Part Number | Description |
|---|
| 1 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 1 |
575608701 |
FRAME W/DECALS Price: $1,599.99 |
| 2 |
575348402 |
GUARD, REAR MZ, GRAY Price: $219.99 |
| 2 |
66-6480 |
WASHER Price: $1.29 |
| 3 |
26-1890 |
DISCONTINUED Price: Call Us |
| 3 |
539131589 |
PANEL, FILLER, LT Price: $49.99 |
| 4 |
32128-21 |
NUT-HF Price: $0.39 |
| 4 |
575223802 |
PANEL, FILLER RH ZT, ORG Price: $54.99 |
| 5 |
539132744 |
PLATE, FLOOR W/DECALS Price: $159.99 |
| 5 |
63-8410 |
WASHER Price: $1.76 |
| 6 |
539132380 |
PLATE, FOOTREST Price: $99.99 |
| 6 |
93-6697 |
DECAL-LUBE This part replaces 70-2560. Price: $11.38 |
| 7 |
39-3330-01 |
PLATE-CLAMP, CASTOR ARM This part replaces 39-3330. Price: $36.10 |
| 7 |
539131579 |
SIDE.RT.ORANGE Price: $34.99 |
| 8 |
325-14 |
SCREW-HH Price: $2.64 |
| 8 |
539131577 |
SIDE.LT.ORANGE Price: $59.99 |
| 9 |
39-3340-01 |
BRACKET-ARM CLAMP This part replaces 39-3340. Price: $101.90 |
| 9 |
539977778 |
ANTI-SKID PAD Price: $3.99 |
| 10 |
32128-23 |
NUT-HF Price: $1.51 |
| 10 |
539121322 |
FOOT PAD Price: $3.99 |
| 11 |
108-1370 |
GEARBOX REPLACEMENT KIT This part replaces 68-6810. Price: $862.61 |
| 11 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 12 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 12 |
575230402 |
SHIELD.MUFFLER.BLACK Price: $79.99 |
| 13 |
505256401 |
STOP, DECK, EZ+ Price: $11.99 |
| 13 |
93-9838-03 |
SHROUD-SHAFT, DRIVE This part replaces 63-1970. Price: $56.70 |
| 14 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 14 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 15 |
26-1900 |
DISCONTINUED Price: Call Us |
| 15 |
596435501 |
Bolts This part replaces 539102335. Price: $3.99 |
| 16 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 16 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 17 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 17 |
63-0070 |
SPACER Price: $1.82 |
| 18 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 18 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 19 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 19 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 20 |
38-9420 |
LH CASTOR ARM ASM Price: $993.47 |
| 20 |
539104763 |
U-CLIP 5/16-18 NUT RETAINER Price: $4.99 |
| 21 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 21 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 22 |
539131781 |
HHFS 3/8-16 X 2 3/4 Price: $4.99 |
| 22 |
75-9680-01 |
FORK-CASTOR This part replaces 75-9680. Price: $151.01 |
| 23 |
325-18 |
SCREW-HH Price: $3.19 |
| 23 |
596581901 |
Bolts This part replaces 539133006. Price: $1.99 |
| 24 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 24 |
539102587 |
GROMMET, BUMPER Price: $4.99 |
| 25 |
595901501 |
Bolts This part replaces 539990208. Price: $3.99 |
| 25 |
62-5580 |
BEARING-OUTSIDE Price: $6.58 |
| 26 |
525464701 |
HHFS 5/16-18 X 3/4 Price: $2.99 |
| 26 |
63-1770 |
SPANNER Price: $17.94 |
| 27 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 27 |
595086801 |
Washers This part replaces 539990250. Price: $2.99 |
| 28 |
596623501 |
Zerks This part replaces 539101474. Price: $2.99 |
| 28 |
63-8400 |
CASTER WHEEL ASM Price: $75.13 |
| 29 |
576356701 |
WHEEL ASM, 23 X 10.5 This part replaces 539108881. Price: $329.99 |
| 29 |
63-8580 |
BEARING-ROLLER Price: $12.48 |
| 30 |
3233-2 |
SCREW-CARR Price: $1.49 |
| 30 |
586921902 |
FORK.CASTER.ASM.PNT.668 This part replaces 575329202. Price: $54.99 |
| 31 |
32128-49 |
NUT-HHF Price: $1.04 |
| 31 |
595281301 |
Caps This part replaces 539102535. Price: $4.99 |
| 32 |
32128-42 |
NUT-HF Price: $0.98 |
| 32 |
539102851 |
SEAL Price: $6.99 |
| 33 |
325-22 |
SCREW-HH Price: $4.26 |
| 33 |
539102543 |
TAPERED ROLLER BRG Price: $17.99 |
| 34 |
596241501 |
Nuts This part replaces 539102852. Price: $9.99 |
| 34 |
62-5570 |
BEARING-ROLLER Price: $18.63 |
| 35 |
302-40 |
FITTING-GREASE, 90 DEG Price: $1.70 |
| 35 |
539124704 |
COTTER PIN 1/8 X 2 This part replaces 539102889. Price: $2.99 |
| 36 |
575334901 |
SPACER, PIVOT Price: $12.99 |
| 37 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 37 |
62-4340 |
SPANNER Price: $16.93 |
| 38 |
26-1530-01 |
FORK-CASTOR This part replaces 26-1530. Price: $178.41 |
| 38 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 39 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 39 |
594946501 |
GSPW Screws This part replaces 539105517. Price: $5.99 |
| 40 |
3247-4 |
SCREW-SET Price: $0.54 |
| 40 |
581199501 |
TIRE.ASSEM.CASTER.13X6.5-6.SIL This part replaces 575348701. Price: $169.99 |
| 41 |
26-1400 |
PULLEY-DECK Price: $539.17 |
| 41 |
587653903 |
Nuts This part replaces 539101173. Price: $3.99 |
| 42 |
3231-26 |
SCREW-CARR Price: $0.86 |
| 42 |
575245202 |
BRACKET.DAMPENER.BLACK Price: $5.99 |
| 43 |
539109117 |
RHSNB 3/8-16 X 3/4 GR 5 BLK ZN Price: $2.99 |
| 43 |
68-9890-01 |
COVER-GEARBOX, FRONT This part replaces 68-9890. Price: $47.21 |
| 44 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 44 |
63-9750 |
MOUNT Price: $18.92 |
| 45 |
539105307 |
ROLLER BEARING-CAGED 3 1/4' Price: $9.99 |
| 45 |
68-8560-03 |
BRACKET-GEARBOX This part replaces 68-8560. Price: $57.56 |
| 46 |
323-4 |
SCREW-HH Price: $1.02 |
| 46 |
539103300 |
ZERK Price: $2.99 |
| 47 |
38-9370 |
RH CASTOR ARM ASM Price: $946.82 |
| 47 |
575622201 |
TIRE.13X6.50-6.4.PLY Price: $69.99 |
| 48 |
575622101 |
WHEEL.6X4.50.CASTER.SILVER Price: $64.99 |
| 49 |
539102484 |
BEARING RETAINER Price: $4.99 |
