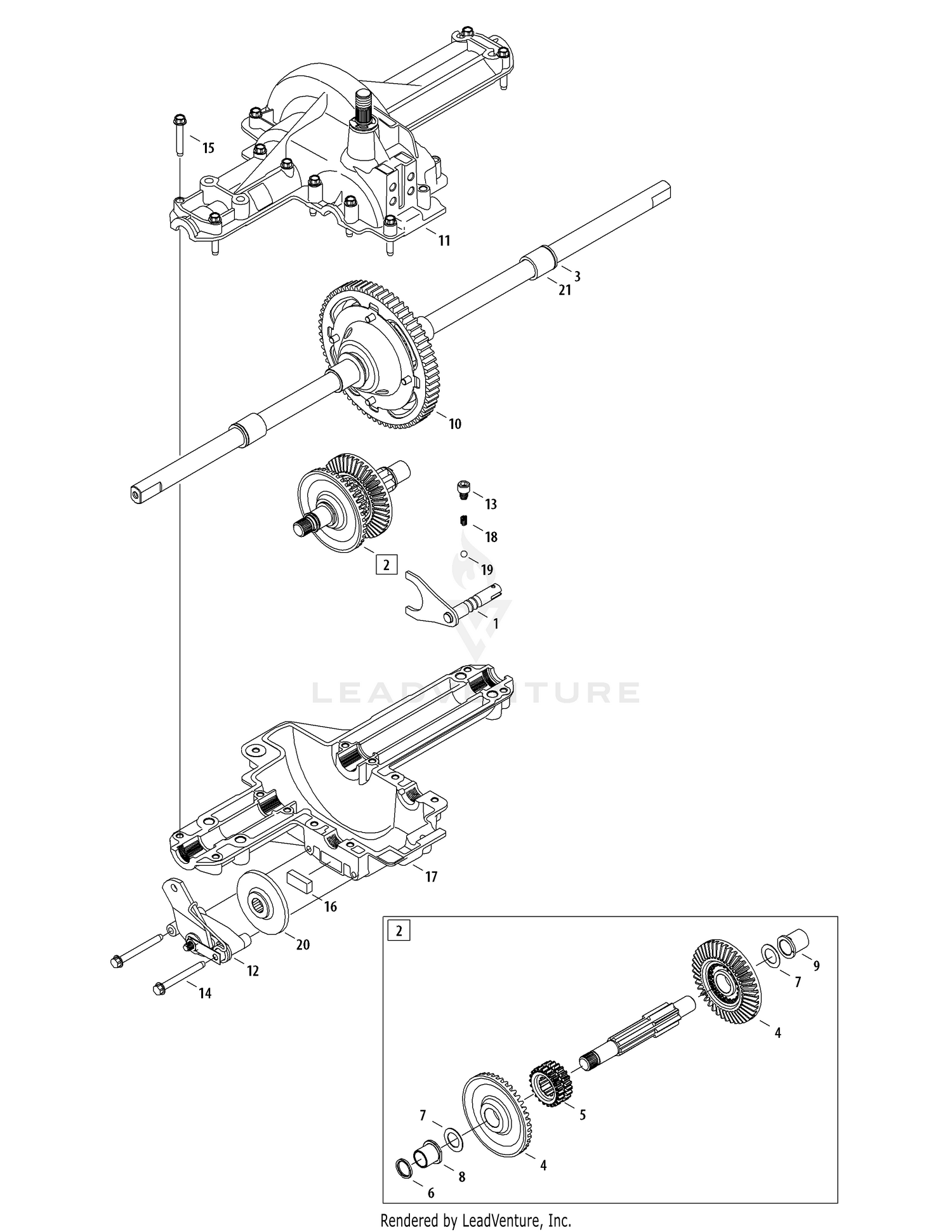

| Ref | Part Number | Description |
|---|
| 1 |
911-0011 |
Detent Shaft Assembly Price: $37.23 |
| 3 |
921-0338 |
Seal Price: $6.59 |
| 4 |
917-04479B |
Bevel Gear 42T Price: $25.69 |
| 5 |
718-04381P |
Single Speed Clutch Collar Price: $15.85 |
| 6 |
721-0213 |
Seal .625 x .812 x .94 Price: $9.93 |
| 7 |
736-0494 |
Shim Washer .632 ID x 1.0 OD x .035 Price: $3.95 |
| 7 |
736-0495 |
THRUST WASHER This part replaces 936-0495. Price: $3.90 |
| 7 |
936-0337 |
Shim Washer .634 ID x 1.0 OD x 0.04 Price: $3.93 |
| 7 |
936-0349 |
Shim Washer .630 ID x 1.0 OD x .020 Price: $3.86 |
| 10 |
918-04619 |
Differential Assembly Price: $209.56 |
| 11 |
919-04187A |
UPPER HOUSING ASSEMBLY Not Available This part replaces 919-04187. Price: |
| 12 |
961-0001 |
Brake Assembly Price: $50.91 |
| 13 |
710-04731 |
S-Tapping Screw 5/16-18 x .375 Price: $7.38 |
| 14 |
710-1206 |
Hex Wash. Hd. Self-Tap Scr. 1/4-20 Price: $6.20 |
| 15 |
710-1325 |
S-Tapping Screw 1/4-10 x 1.625 Price: $4.11 |
| 16 |
917-0678 |
Brake Puck Price: $6.87 |
| 17 |
919-04329B |
LOWER TRANSAXLE HOUSING This part replaces 919-04329. Price: $74.85 |
| 18 |
932-05125 |
DETENT SHAFT SPRING This part replaces 932-0863. Price: $3.66 |
| 19 |
741-0862 |
DETENT BALL .250 Price: $3.90 |
| 20 |
761-0202 |
Brake Disc Price: $14.48 |
| 21 |
741-05060 |
SLEEVE BEARING .75X1.00X1.00 This part replaces 941-0340. Price: $7.69 |
