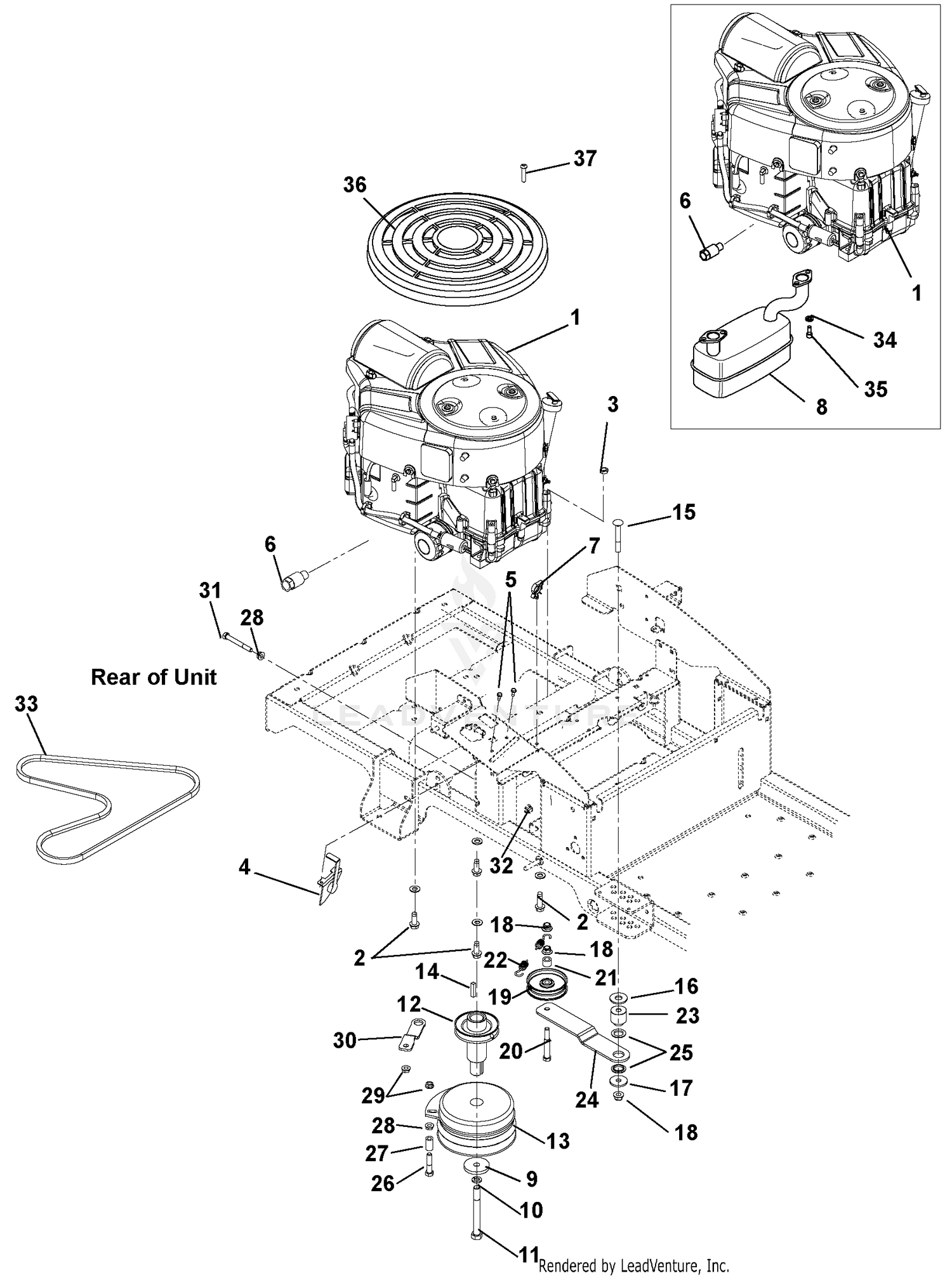

Engine, Exhaust, Belts And Idlers

Engine, Exhaust, Belts And Idlers

Parts (33)

RefPart NumberDescription
2 07400128 SCR,TAP .375-16X1.25HWH TR ZCC This part replaces 07414700. Price: $2.95
4 51532800 KIT, THR/CHOKE 06900520 REPL. This part replaces 06900520. Price: $58.45
5 07400130 SCR,TAP #10-24X.50 HWH TR ZCC This part replaces 07415800. Price: $1.95
6 03943600 DRAIN, OIL Price: $13.95
8 02997300 MUFFLER - TWIN BRIGGS Price: $103.40
9 06401111 WSHR, FLT .469X2.00X.250 ZCC This part replaces 06443600. Price: $6.95
10 06300121 WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45
11 05901821 BLT, HEX .44-20X4.50 G8 ZCC This part replaces 05966700. Price: $6.45
12 07338600 WLDMT, CRANKSHAFT EXTENSION Price: $76.45
13 03972700 CLUTCH, 105 FT*LB MONO POLE Price: $203.95
14 06603400 KEY-SQ .25 X 1.25 X .25 SAE Price: $3.45
15 06200316 BLT, RHSN .38-16X2.75 G5 ZCC This part replaces 06225400. Price: $3.95
16 06401012 WSHR,FLT .563X1.375X.109 ZCC This part replaces 06442000. Price: $2.45
17 06401121 WSHR,FLT .406X1.375X.135 ZCC This part replaces 06442400. Price: $5.45
18 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
19 07355900 PULLEY, IDLER 2.75" FLAT This part replaces 07300221. Price: $30.95
20 05901611 BLT, HEX .38-16X2.75 G5 ZCC This part replaces 05961400. Price: $3.95
21 08553700 BSHG-SLV .391X.688X.52 PM Price: $5.45
22 08300512 SPRING, EXTENSION Price: $15.45
23 03961100 SPACER, GROUND DRIVE IDLER Price: $5.45
24 03961067 IDLER ARM, GROUND DRIVE Price: $18.10
25 03960700 BUSHING, IDLER ARM Price: $5.95
26 05901418 SCR-CAP .31-18X1 3/4 S/HD YWZC Price: $2.45
27 03980200 SPACER, RUBBER 5/16 IDX1.0 LG Price: $2.45
28 06500815 NUT,SPNLK-FLG .31-18 G5 ZCC This part replaces 06530400. Price: $1.45
29 06500904 NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95
30 03956751 BRKT, CLUTCH STOP Price: $10.45
31 05901807 BLT, HEX .31-18X2.75 G5 ZCC This part replaces 05960600. Price: $2.45
32 06500809 NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45
33 07200010 V-BELT, HA-RAW EDGE Price: $32.95
34 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
35 05901827 BLT, SHCS .312-18X.75 ZCC This part replaces 05933100. Price: $2.45
36 03275500 GUARD, BRIGGS ENGINE Price: $27.45
