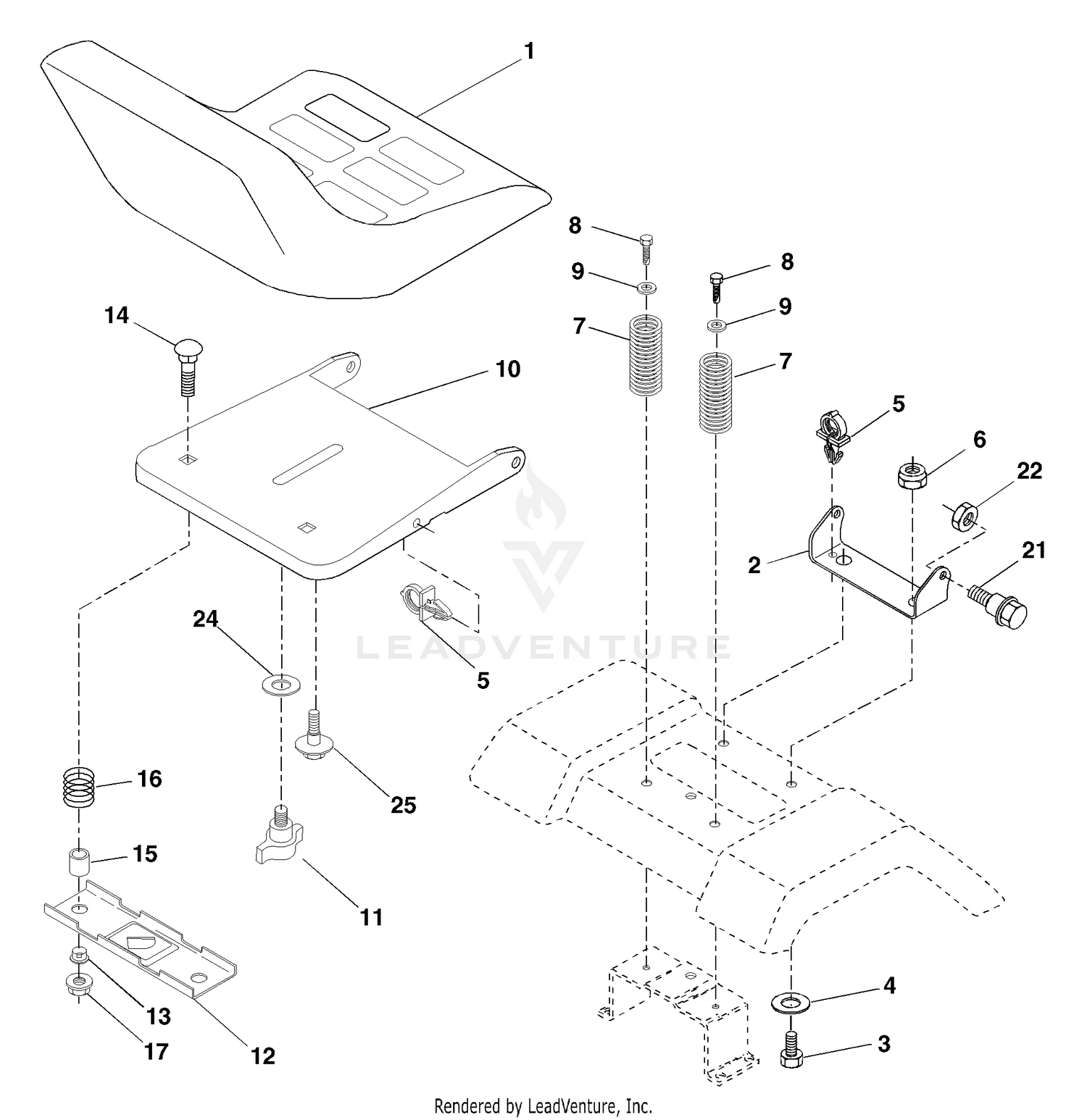

| Ref | Part Number | Description |
|---|
| 1 |
171683 |
Seat Price: Call Us |
| 2 |
140551 |
Bracket Pivot Seat 8 720 Price: Call Us |
| 2 |
26-3790 |
NUT-LOCK Price: $24.46 |
| 3 |
10-6821 |
BRAKE DRUM ASM Price: $170.90 |
| 3 |
71110616 |
Bolt Fin Hex 3/8-16unc X 1 Price: Call Us |
| 4 |
104-7705 |
BRAKE ASM Price: $175.69 |
| 4 |
19131610 |
Washer 13/32 X 1 X 10 Ga Price: Call Us |
| 5 |
145006 |
Clip Push-In Price: Call Us |
| 5 |
325-11 |
SCREW-HH Price: $1.93 |
| 6 |
147-3595 |
BRACKET-BRAKE This part replaces 84-2000-03. Price: $8.08 |
| 6 |
73800600 |
Nut Hex w/Ins. 3/8-16 Unc Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 7 |
340-14 |
FITTING-HYD, 45 DEG Price: $42.29 |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Smgml Price: Call Us |
| 8 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 9 |
105-0433-01 |
CHANNEL-STEP, RH Price: $65.59 |
| 9 |
19131614 |
Washer 13/32 X 1 X 14 Ga. Price: Call Us |
| 10 |
182493 |
Pan Seat Price: Call Us |
| 10 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 11 |
166369 |
Knob Seat Price: Call Us |
| 12 |
121246X |
Bracket Mounting Switch Price: Call Us |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 14 |
72050412 |
Bolt Rdhd Sqnk 1/4-20x1-1/2 Price: Call Us |
| 14 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 15 |
134300 |
Spacer Split 28x 88 Price: Call Us |
| 15 |
93-2096 |
LEVER-BRAKE Price: $89.45 |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 16 |
92-9199 |
MOTOR-WHEEL, HYD Price: $923.71 |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr 5 Zinc Price: Call Us |
| 17 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 18 |
321-5 |
SCREW-HH Price: $0.22 |
| 19 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 20 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc Price: Call Us |
| 22 |
73800500 |
Nut Hex Lock W/Ins 5/16-18 Price: Call Us |
| 22 |
93-2509 |
CLAMP-TUBE Price: $14.32 |
| 23 |
105-8282-01 |
SHIELD-SIDE Price: $77.28 |
| 24 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 24 |
19171912 |
Washer 17/32 X 1-3/16 X 12 Ga. Price: Call Us |
| 25 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 26 |
105-5470 |
DECAL Price: $29.92 |
| 27 |
325-5 |
SCREW-HH Price: $1.20 |
| 28 |
32128-52 |
NUT-LOCK, FLANGE Price: $1.69 |
| 29 |
105-8263-01 |
BRACKET-ROPS Price: $37.76 |
| 30 |
340-76 |
FITTING-BULKHEAD UNION, STRAIGHT Price: $37.98 |
| 31 |
69-9010 |
WASHER Price: $1.83 |
| 32 |
240-3 |
GROMMET-RUBBER Price: $17.44 |
| 33 |
340-74 |
NUT-LOCK, BULKHEAD Price: $4.83 |
| 34 |
125-1984 |
SPACER This part replaces 69-9000. Price: $0.68 |
| 35 |
321-11 |
SCREW-HH Price: $0.36 |
| 36 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 37 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 38 |
340-70 |
NUT-LOCK Price: $2.10 |
| 39 |
340-68 |
FITTING-TEE, BULKHEAD Price: $36.00 |
