Home / OPE / Cub Cadet OHV Engines / 990-WU 420cc Engine / General Assembly

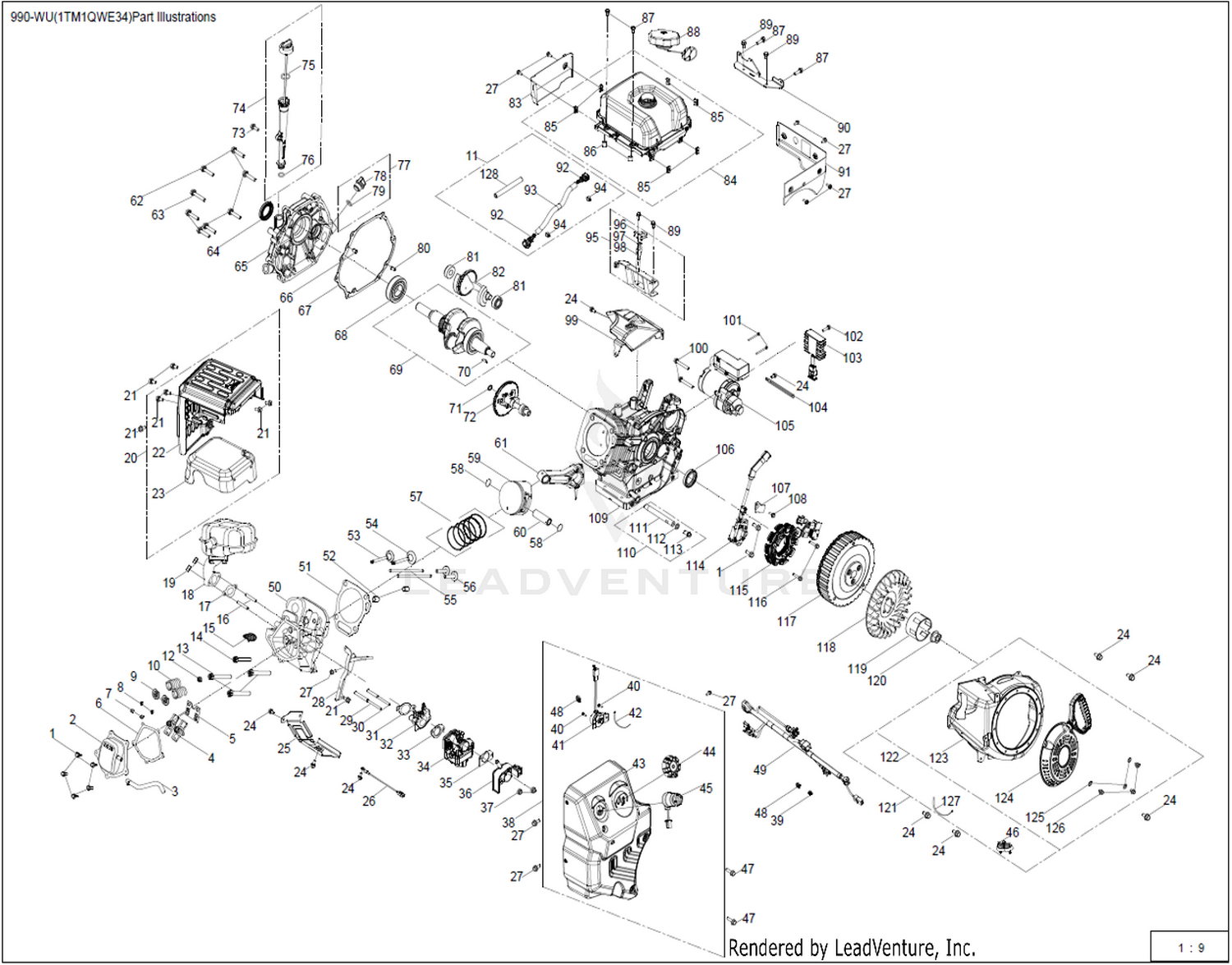

General Assembly

General Assembly

Parts (128)

RefPart NumberDescription
1 710-04968 BOLT M6 x 16 Price: $5.77
2 951-11220 VALVE COVER Price: $31.06
3 751P20188 BREATHER HOSE Price: $3.95
4 951-11981A ROCKER ARM ASSEMBLY Price: $35.16
5 951-11965B PUSH ROD GUIDE Price: $5.75
6 951-15425A VALVE COVER GASKET This part replaces 951-15425. Price: $9.59
7 951-12269 EXHAUST VALVE ADJUSTER Price: $5.48
8 951-14912A VALVE CAP Price: $3.03
9 951-14911A VALVE SPRING SEAT Price: $4.64
10 951-15812A SPRING VALVE Price: $6.25
11 751P20268 FUEL LINE ASSEMBLY Price: $31.06
12 951-11964A INTAKE VALVE SEAL Price: $9.96
13 710-06064 SCREW M10-1.25 x 87 x GR10.9 Price: $5.72
14 710-06065 SCREW M10-1.25 x 65 x GR10.9 Price: $5.53
15 951-10292A SPARK PLUG (F6RTC/RN11YC/BPR6ES) Price: $6.35
16 710-04964 STUDS M8-1.25 x 48.5 Price: $5.48
17 951-11212A MUFFLER GASKET Price: $4.81
18 951-15426A MUFFLER Price: $80.84
19 751-15427 NUT M8 Price: $3.64
20 651P08802 MUFFLER SHIELD Price: $42.15
21 710-04914 BOLT M6-1 x 10 GR8.8 Price: $3.71
22 751P15428 MUFFLER SHIELD (OUTER) Price: $54.16
23 751P15429A MUFFLER SHIELD (INNER) Price: $29.17
24 710-04915 BOLT M6-1 x 12 GR8.8 Price: $3.82
25 951-11317 CYLINDER BAFFLE Price: $25.21
26 751P20208 TEMP SENSOR Price: $12.22
27 710-04916 BOLT M6-1 x 14 GR8.8 Price: $3.86
28 951-15430 RECOIL SNOW GUARD Price: $13.06
29 751-20209 STUD M6 x 123 Price: $2.45
30 710-04963 STUD M6-1 x 104 Price: $6.07
31 951-15434A CARBURETOR INSULATOR GASKET Price: $6.24
32 751P20210 INSULATOR Price: $3.53
33 751P20211 CARB GASKET Price: $4.45
34 751P22767 FUEL INJECTOR Price: $370.32
35 751P20213 AIR FILTER GASKET Price: $4.45
36 751P20214 HEATER BOX Price: $4.27
37 712-05015 HEX NUT Price: $5.78
38 751P20215 CONTROL PANEL ASSEMBLY Price: $18.53
39 723-04071A FUEL LINE SUPPORT CLAMP Price: $2.77
40 751-20216 SCREW Price: $2.45
41 751P20217 SPEED CONTROL SWITCH Price: $17.06
42 751-21910 CABLE TIE Price: $1.70
43 751P20219 CONTROL PANEL (Plastic Body Only) Price: $14.49
44 751P18286 SPEED CONTROL KNOB Price: $4.96
45 751P20068 KEY SWITCH Price: $16.15
46 751P20264 KEY Price: $3.37
47 710-05192 SCREW M6-1 x 20 CL5.8 Price: $5.38
48 931-10630A WIRE SUPPORT CLAMP Price: $4.75
49 751P22715 WIRE HARNESS Price: $66.08
50 751P15813A CYLINDER HEAD Price: $125.53
51 751P22769 HEAD GASKET Price: $3.40
52 715-04097A DOWEL PIN 12x20 Price: $4.64
53 951-15814A EXHAUST VALVE Price: $15.29
54 951-15777 INTAKE VALVE Price: $17.52
55 951-14226A PUSH ROD Price: $9.70
56 951-11962A TAPPET Price: $5.88
57 951-05156 PISTON RING SET Price: $23.52
58 951-11953A PISTON PIN SNAP RING Price: $3.42
59 951-14677 PISTON Price: $47.15
60 951-11954A PISTON PIN Price: $7.31
61 951-11951 CONNECTING ROD ASSEMBLY Price: $68.39
62 710-06061 SCREW M8-1.25 x 38 GR10.9 Price: $5.67
63 710-06289 BOLT M8 x 45 Price: $3.89
64 951-11375A OIL SEAL Price: $13.55
65 751P20248 CRANKCASE COVER Price: $56.32
66 715-04102 DOWEL PIN Price: $4.93
67 951-15455A CRANKCASE COVER GASKET Price: $12.54
68 951-15456 BALL BEARING Price: $24.17
69 951-05407 CRANKSHAFT ASSEMBLY Price: $176.98
70 751P10307A WOODRUFF KEY Price: $2.01
71 736-04476 WASHER Price: $5.01
72 951-11959B CAMSHAFT Price: $59.85
73 710-05003A BOLT M6-1 x 18 This part replaces 710-05003. Price: $3.11
74 951-05391A DIPSTICK OIL ASSEMBLY Price: $23.25
75 921-04663A O-RING Price: $5.05
76 951-15459 O-RING Price: $3.56
77 951-05392A OIL DRAIN PLUG Price: $6.35
78 751P15462A OIL PLUG This part replaces 751P15462. Price: $2.47
79 951-11960A O-RING Price: $3.13
80 715-04096A DOWEL PIN 9 X 14 This part replaces 715-04096. Price: $3.66
81 951-15463A BALL BEARING Price: $8.86
82 951-12095 BALANCE GEAR ASSEMBLY Price: $105.41
83 951-15464A FUEL TANK BACK PANEL Price: $5.60
84 651P06335 FUEL TANK Price: $238.34
85 951-15465A THREADED TAB Price: $2.82
86 951-15466 BUSHING Price: $2.94
87 710-06537 BOLT Price: $3.23
88 951-15172A FUEL CAP Price: $15.87
89 710-04921 BOLT M8-1.25 x 14 GR8.8 Price: $4.75
90 951-15475 FUEL TANK BASE BRACKET Price: $13.41
91 951-15474A FUEL TANK FRONT PANEL Price: $10.04
92 751P20250 QUICK DISCONNECT FUEL LINE Price: $4.75
93 751P20251 FUEL HOSE 8 x 14 x 290 Price: $17.19
94 751P20252 CLAMP Price: $2.45
95 951-05395 FUEL TANK MOUNTING BRACKET Price: $20.39
96 951-15469 RUBBER GROMMET Price: $3.38
97 951-15470 RUBBER GROMMET Price: $3.71
98 951-15471 FUEL TANK MOUNTING BRACKET Price: $19.19
99 751P20253 GOVERNOR GEAR BRACKET Price: $7.36
100 710-04967 BOLT M8-1.25 x 55 GR8.8 Price: $5.59
101 751-15472 SCREW Price: $4.29
102 710-04919 BOLT M6-1 x 25 GR8.8 Price: $3.86
103 751P20254 REGULATOR Price: $54.59
104 951-15645 SUPPORT CLAMP Price: $3.25
105 951-15492 ELECTRIC STARTER Price: $386.66
106 951-11499A OIL SEAL Price: $12.13
107 951-11186 ALTERNATOR WIRE CLAMP BRACKET Price: $4.44
108 710-04966 BOLT M6-1 x 8 GR8.8 Price: $5.30
109 751P22771 CRANKCASE Price: $222.19
110 751P19228A OIL DRAIN PIPE Price: $12.19
111 951-11350A OIL DRAIN PIPE This part replaces 951-11350. Price: $7.05
112 736-04440A FLAT WASHER Price: $6.01
113 710-04906 OIL DRAIN PLUG Price: $5.86
114 751P20256B IGNITION COIL (RUBBER BOOT) Price: $33.68
115 751P20257 CHARGING COIL Price: $46.91
116 710-04969 BOLT-M6-1 x 30 GR8.8 Price: $3.66
117 751P20258 FLYWHEEL Price: $113.87
118 951-11313A COOLING FAN Price: $44.17
119 951-11314 STARTER CUP Price: $16.55
120 712-05169 FLYWHEEL NUT M16X1.5 Price: $7.30
121 NSCO Not Serviceable/ Components Only Price: Call Us
122 751P20262 RECOIL START Price: $58.97
123 751P20263 BLOWER HOUSING Price: $24.59
124 951-05397A RECOIL START ASSEMBLY Price: $49.96
125 736-04455B FLAT WASHER Price: $5.94
126 710-06354 BOLT M6 x 10 Price: $5.73
127 725-06031 CABLE TIE - 3 x 150 Price: $2.04
128 751P22772 PROTECTIVE FOAM TUBE Price: $2.27
