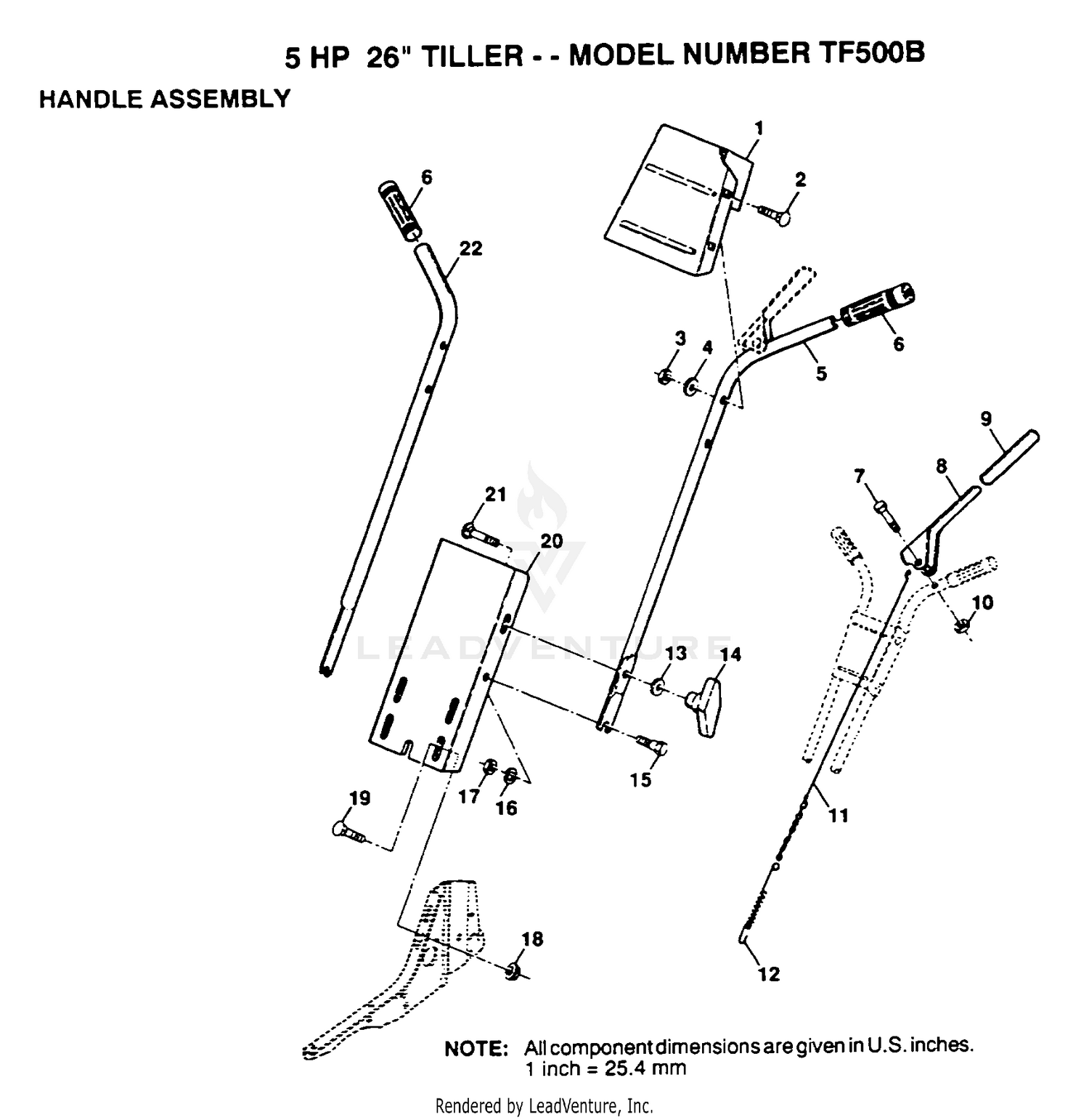

| Ref | Part Number | Description |
|---|
| 1 |
131268X419 |
HANDLE BRACKET Price: Call Us |
| 1 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 2 |
110-4149 |
KIT-SEAT PLATE This part replaces 98-2350-03. Price: $166.30 |
| 2 |
72140512 |
BOLT Price: Call Us |
| 3 |
322-3 |
SCREW-HH Price: $0.79 |
| 3 |
73680500 |
SUB= 73690500 Price: Call Us |
| 4 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 4 |
19111116 |
WASHER Price: Call Us |
| 5 |
2621J |
SUB= 154127 Price: Call Us |
| 5 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 6 |
105-0102 |
CABLE-THROTTLE Price: $55.32 |
| 6 |
9266R |
SUB= 624A78 Price: Call Us |
| 7 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 7 |
74760524 |
BOLT.HEX.5/16-1.5 Price: Call Us |
| 8 |
3069J |
SUB= 164937 Price: Call Us |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 9 |
8206H |
GRIP T Price: Call Us |
| 9 |
98-2352-03 |
FRAME-SEAT Price: $456.00 |
| 10 |
1685H |
SUB= 68478 Price: Call Us |
| 10 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 11 |
3067J |
SUB= 100382K Price: Call Us |
| 11 |
70-1480 |
RELAY Price: $105.19 |
| 12 |
3070J |
SPRING EXT TI Price: Call Us |
| 12 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 13 |
19121414 |
WASHER Price: Call Us |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
321-14 |
SCREW-HH Price: $0.55 |
| 14 |
63688 |
SUB= 136376 Price: Call Us |
| 15 |
471J |
BOLT CT Price: Call Us |
| 15 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 16 |
10040500 |
LOCKWASHER Price: Call Us |
| 16 |
75-3680-03 |
ROD-SEAT Price: $38.90 |
| 17 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 17 |
93-7598 |
LEVER-THROTTLE This part replaces 93-7598-03. Price: $39.13 |
| 18 |
233-42 |
KNOB Price: $12.88 |
| 18 |
98000129 |
NUT Price: Call Us |
| 19 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 19 |
72140506 |
BOLT Price: Call Us |
| 20 |
105-7528 |
DECAL-INFORMATION, SOLENOID Price: $40.89 |
| 21 |
105-3352 |
HARNESS-WIRE, MAIN Price: $768.43 |
| 21 |
72110510 |
BOLT Price: Call Us |
| 22 |
2622J |
SUB= 159764 Price: Call Us |
| 22 |
92-7396-03 |
MOUNT-CABLE Price: $12.51 |
| 23 |
49-2040 |
SCREW-HWHTF Price: $1.99 |
| 24 |
52-5910 |
RING-RETAINING Price: $3.64 |
| 25 |
98-2354-03 |
LATCH-SEAT Price: $41.34 |
| 26 |
98-2353 |
BRACKET-LATCH, SEAT Price: $17.71 |
| 27 |
32128-25 |
NUT-HF Price: $3.19 |
| 28 |
66-4190-03 |
SPRING-IDLER, CLUTCH Price: $7.20 |
| 29 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 30 |
85-6910 |
DECAL-RATING, NOISE Price: $7.03 |
| 31 |
2412-150 |
CLIP-J Price: $1.63 |
| 32 |
1-806003 |
PIN-COTTER This part replaces 3290-307. Price: $1.39 |
| 33 |
94-8146 |
STRIP-FOAM Price: $8.78 |
| 34 |
66-8800 |
RELAY Price: $87.56 |
| 110613X |
DECAL |
TI Price: Call Us 110613X |
| 110614X |
DECAL |
TI Price: Call Us 110614X |
| 128522 |
DECAL, |
LOGO Price: Call Us 128522 |
