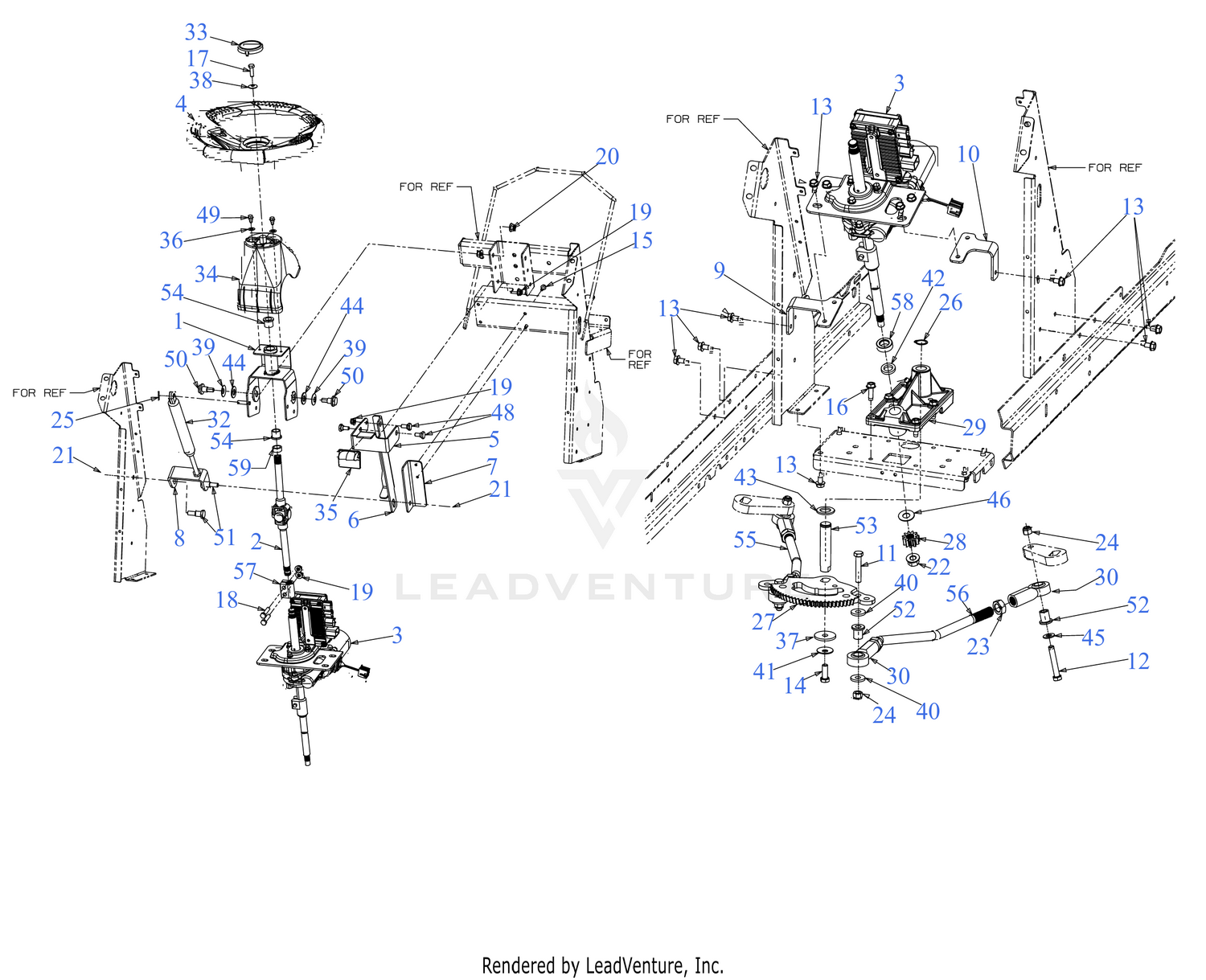

| Ref | Part Number | Description |
|---|
| 1 |
603-04852C |
UPPER STEERING BRACKET Price: $100.99 |
| 2 |
617-04096A |
UPPER STEERING SHAFT ASSEMBLY Price: $242.18 |
| 3 |
618P08273 |
EPS POWER STEERING TRANSMISSION Price: $784.26 |
| 4 |
631-04556A |
STEERING WHEEL Price: $84.21 |
| 5 |
703-08105A |
TILT LEVER BRACKET Price: $21.09 |
| 6 |
703-08114A |
TILT ENGAGE BRACKET Price: $22.62 |
| 7 |
703-08180 |
TILT STEERING BRACKET Price: $12.78 |
| 8 |
703-08505 |
DAMPER CYLINDER PIVOT BRACKET Price: $26.00 |
| 11 |
710-0151 |
HEX SCREW 3/8-24 X2.00 Price: $6.55 |
| 12 |
710-0331 |
HEX SCREW 3/8-24 x 2.25 GR5 Price: $6.01 |
| 13 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 14 |
710-0591 |
SCREW 3/8-24 x 1.00 GR5 Price: $3.94 |
| 15 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 16 |
710-0602 |
SCREW 5/16-18 x 1.00 Price: $4.05 |
| 17 |
710-0643 |
SCREW 5/16-18 x 1.00 GR5 Price: $5.99 |
| 18 |
710-3083 |
BOLT 5/16-18X1.375 GR5 Price: $3.94 |
| 19 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 20 |
712-04065 |
NUT Price: $3.68 |
| 21 |
912-0431 |
HEX LOCK NUT Price: $4.29 |
| 22 |
712-0459 |
FLANGE LOCK NUT Price: $4.39 |
| 23 |
712-3056 |
HEX JAM NUT 5/8-18 Price: $4.21 |
| 24 |
712-3061 |
Nut, Hex Insert Lock, 3/8-24 GR5 This part replaces 912-3061. Price: $5.94 |
| 25 |
914-0507 |
COTTER PIN-3/32 DIA x .75 Price: $3.93 |
| 26 |
716-0101 |
Ring, External Retaining This part replaces 916-0101. Price: $3.37 |
| 27 |
717-04870B |
STEERING GEAR SEGMENT Price: $96.79 |
| 28 |
717-04943 |
STEERING PINION GEAR Price: $55.87 |
| 29 |
919-04756B |
STEERING HOUSING ASSEMBLY Price: $145.65 |
| 30 |
723-04050 |
BALL JOINT ROD END Price: $52.65 |
| 32 |
927-04320 |
DAMPER CYLINDER Price: $63.95 |
| 33 |
731-04039 |
STEERING WHEEL CAP Price: $7.17 |
| 34 |
731-07815A |
STEERING COLUMN Price: $22.36 |
| 35 |
731-3224 |
TILT WHEEL LEVER Price: $9.83 |
| 36 |
736-0204 |
FLAT WASHER .344 ID x .62 OD x .033 Price: $3.89 |
| 37 |
736-0227 |
Washer, Flat, .390 X 1.50 X .134 Thk This part replaces 936-0227. Price: $5.78 |
| 38 |
736-0242 |
BELL WASHER .337 X.867 x .057 Price: $3.75 |
| 39 |
736-0255 |
Washer, Bell, .515 X 1.14 This part replaces 936-0255. Price: $4.02 |
| 40 |
736-0258 |
FLAT WASHER .385 x 1.00 x .135 Price: $3.93 |
| 41 |
736-0331 |
BELL WASHER .390x1.130x.062 Price: $3.50 |
| 42 |
736-04296 |
FLAT WASHER .632X1.00X.16 Price: $2.83 |
| 43 |
736-04571 |
SHIM WASHER .76X1.25X.10 Price: $2.94 |
| 44 |
736-0626 |
FLAT WASHER Price: $8.32 |
| 45 |
736-3050 |
FLAT WASHER Price: $3.90 |
| 46 |
736-3084 |
FLAT WASHER Price: $4.39 |
| 48 |
738-0140 |
Screw, Shoulder, .437 Dia X .180 This part replaces 938-0140. Price: $4.93 |
| 49 |
738-04278 |
SHOULDER SCREW 1/4-20X.50 19"PSH Price: $5.99 |
| 50 |
738-04484 |
BOLT-SHLDR .49 DIA x .50 Price: $6.77 |
| 51 |
738-04495 |
SHOULDER BOLT .50 DIA x .66 Price: $15.61 |
| 52 |
738-05136 |
SHOULDER SPACER Price: $3.66 |
| 53 |
738-05142 |
STEERING SHAFT SEGMENT Price: $27.01 |
| 54 |
741-0353 |
Flange Bearing This part replaces 941-0353. Price: $10.44 |
| 55 |
747-06529 |
STEERING DRAG LINK (LH) Price: $39.62 |
| 56 |
747-06530 |
STEERING DRAG LINK (RH) Price: $39.62 |
| 57 |
748-04240 |
STEERING SHAFT COUPLER Price: $24.21 |
| 58 |
748-04269 |
WIRE RING SPACER HUB Price: $5.59 |
