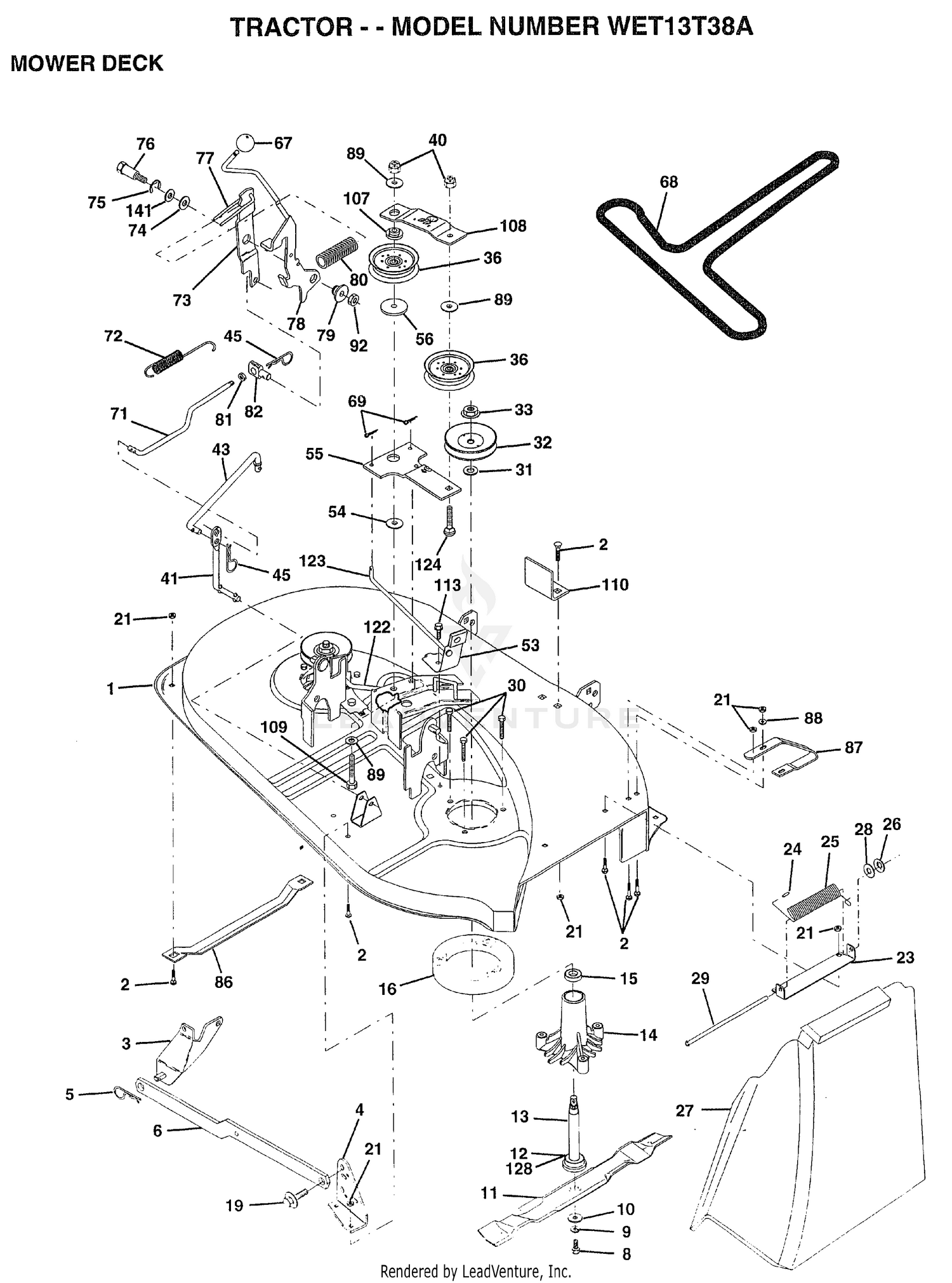

| Ref | Part Number | Description |
|---|
| 1 |
142829 |
SUB= 145775 Price: Call Us |
| 1 |
94-2694-01 |
COVER-RH Price: $46.16 |
| 2 |
72140506 |
BOLT Price: Call Us |
| 2 |
95-5981-01 |
FRAME ASM Price: $3,151.67 |
| 3 |
138017 |
BRKT ASM SWAY BAR Price: Call Us |
| 3 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 4 |
138440 |
BRKT DECK SW BAR Price: Call Us |
| 4 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 5 |
28-4210 |
SOLENOID Price: $63.91 |
| 5 |
4939M |
SUB= 85902 Price: Call Us |
| 6 |
130832 |
SUB= 130833 Price: Call Us |
| 6 |
3254-1 |
WASHER-LOCK, INT Price: $0.49 |
| 7 |
3219-14 |
NUT-HEX Price: $0.25 |
| 8 |
3218-13 |
NUT-JAM, BRASS Price: $0.88 |
| 8 |
850857 |
BLADE BOLT Price: Call Us |
| 9 |
10030600 |
SUB= 10040600 Price: Call Us |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 10 |
140296 |
WASHER.HARD.BLADE Price: Call Us |
| 10 |
321-3 |
SCREW-HH Price: $0.28 |
| 11 |
3217-5 |
NUT-HEX Price: $0.25 |
| 12 |
129895 |
BEARING.BALL Price: Call Us |
| 12 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 13 |
100-6434 |
ROD-HOLD DOWN, BATTERY Price: $10.10 |
| 13 |
137645 |
SUB= 137646 Price: Call Us |
| 14 |
128774 |
HSG ASM MANDREL Price: Call Us |
| 14 |
32103-22 |
NUT-WING Price: $2.39 |
| 15 |
104-8162 |
BATTERY-DRY Price: $114.99 |
| 15 |
110485X |
BEARING Price: Call Us |
| 16 |
100-6435 |
POST-BATTERY Price: $15.91 |
| 16 |
140329 |
STRIPPER RND MWR Price: Call Us |
| 17 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 18 |
83-0840-01 |
SHIELD-COVER, VALVE Price: $41.96 |
| 19 |
132827 |
BOLT SHD 5/16-18 Price: Call Us |
| 20 |
105-9751 |
DECAL Price: $19.23 |
| 21 |
73680500 |
SUB= 73690500 Price: Call Us |
| 22 |
32104-116 |
SCREW-HWHTF Price: $0.55 |
| 23 |
1337607 |
BRACKET/DEFLECTOR Price: Call Us |
| 23 |
95-7119 |
HOSE-LINE, RETURN Price: $80.05 |
| 24 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 25 |
123713X |
SPRING TORSION Price: Call Us |
| 25 |
95-4356 |
FITTING This part replaces 353-563. Price: $67.28 |
| 27 |
106736X |
DEFLECTOR-SHLD T Price: Call Us |
| 27 |
68-5880 |
HOSE-HYD Price: $112.20 |
| 28 |
19111016 |
WASHER Price: Call Us |
| 28 |
353-564 |
FITTING-90 DEG Price: $167.47 |
| 29 |
106735X |
ROD-HINGE T Price: Call Us |
| 29 |
27-2380 |
SPACER Price: $11.14 |
| 30 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 31 |
129963 |
WASHER Price: Call Us |
| 31 |
322-4 |
SCREW-HH Price: $0.35 |
| 32 |
153532 |
PULLEY.MANDREL.38 Price: Call Us |
| 32 |
83-0830-01 |
PANEL-CONTROL, UPPER Price: $140.31 |
| 33 |
137266 |
SUB= 139729 Price: Call Us |
| 33 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 34 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 35 |
237-143 |
O-RING Price: $1.34 |
| 36 |
131494 |
FLAT IDLER PULLEY Price: Call Us |
| 36 |
93-8065 |
DECAL-TRACTION Price: $6.71 |
| 37 |
67-1300 |
DECAL Price: $29.99 |
| 40 |
73680600 |
SUB= 73690600 Price: Call Us |
| 41 |
105-4674 |
DECAL-NOISE Price: $4.80 |
| 41 |
133551 |
PIVOT ROD Price: Call Us |
| 42 |
133-8095 |
DECAL-CE This part replaces 93-7252. Price: $3.73 |
| 43 |
104-2064-03 |
BATTERY BASE ASM Price: $117.27 |
| 43 |
133504 |
CLUTCH ROD SECOND Price: Call Us |
| 44 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 44 |
140088 |
GUARD MAND LH BLK Price: Call Us |
| 45 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 46 |
106948 |
TRAY-BATTERY Price: $10.99 |
| 53 |
130840 |
BRAKE ASM Price: Call Us |
| 54 |
133943 |
HARDENED WASHER Price: Call Us |
| 55 |
133840 |
IDLER ARM ASSY Price: Call Us |
| 56 |
122052X |
SPACER RETAINER Price: Call Us |
| 67 |
162132 |
KNOB.RD.7/16-14 Price: Call Us |
| 68 |
144200 |
BELT.V.T-PATH Price: Call Us |
| 69 |
76020312 |
SUB= 3145 Price: Call Us |
| 71 |
142427 |
ROD CLUTCH 38/42 Price: Call Us |
| 72 |
131870 |
RETURN SPRING Price: Call Us |
| 73 |
127847 |
CLUTCH ARM SECOND Price: Call Us |
| 74 |
121748X |
WASHER Price: Call Us |
| 75 |
12000029 |
RING Price: Call Us |
| 76 |
128903 |
SHOULDER BOLT Price: Call Us |
| 77 |
127845 |
SPRING KEEPER Price: Call Us |
| 78 |
160570 |
LEVER.ASM.CLUTCH Price: Call Us |
| 79 |
127498 |
BUSHING Price: Call Us |
| 80 |
153701 |
SPRING.CLUTCH.MWR Price: Call Us |
| 81 |
73350600 |
NUT Price: Call Us |
| 82 |
142028 |
TRUNION ADJ Price: Call Us |
| 86 |
7631J |
RUNNER-LH M Price: Call Us |
| 87 |
128772 |
RUNNER RH Price: Call Us |
| 88 |
19111216 |
WASHER M Price: Call Us |
| 89 |
19131612 |
WASHER GT Price: Call Us |
| 92 |
73800600 |
NUT Price: Call Us |
| 107 |
133502 |
RETAINER SPACER Price: Call Us |
| 108 |
133503 |
IDLER ARM STIFF Price: Call Us |
| 109 |
74760640 |
BOLT Price: Call Us |
| 110 |
142587 |
UPSTOP DECK FT 38 Price: Call Us |
| 113 |
17490512 |
SCREW Price: Call Us |
| 122 |
131289 |
BRAKE ROD LH Price: Call Us |
| 123 |
131288 |
BRAKE ROD RH Price: Call Us |
| 124 |
72110614 |
BOLT Price: Call Us |
| 128 |
153390 |
WASHER.FELT. Price: Call Us |
| 141 |
6266H |
WASHER .T Price: Call Us |
| 130794 |
MANDREL |
ASM Price: Call Us 130794 |
