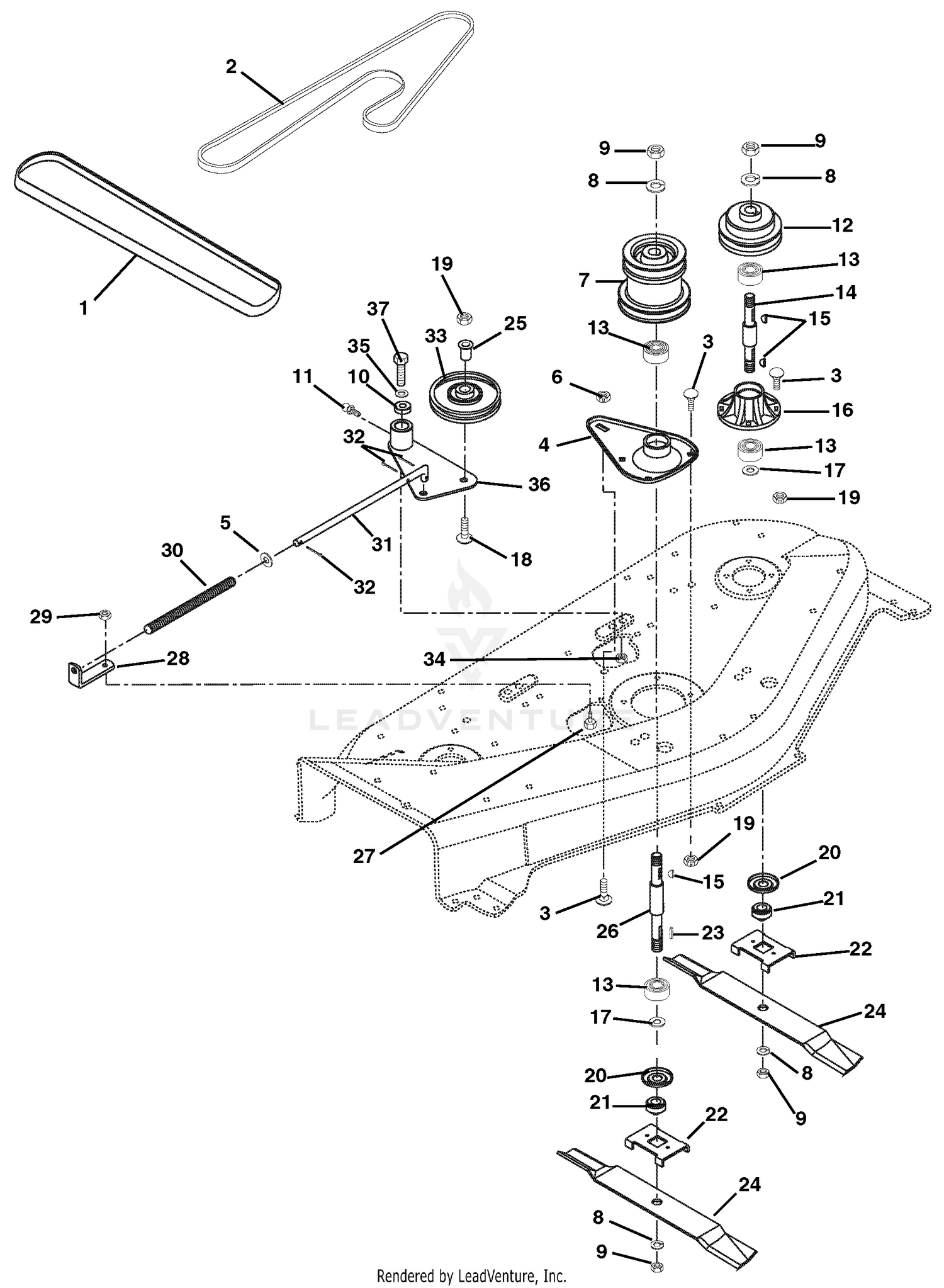

| Ref | Part Number | Description |
|---|
| 1 |
07234500 |
V-BELT, HA-WRAPPED Price: $34.95 |
| 2 |
07234400 |
V-BELT, HA-RAW EDGE Price: $84.95 |
| 3 |
06200312 |
BLT, RHSN .38-16X.750 G5 ZCC This part replaces 06223900. Price: $1.45 |
| 4 |
03434951 |
HOUSING, SPINDLE Price: $159.95 |
| 5 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 6 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 7 |
01543300 |
SHEAVE, 48" DECK Price: $234.45 |
| 9 |
06537700 |
NUT-JAM .75-10 YWZC Price: $2.45 |
| 10 |
03433800 |
SPACER, PIVOT .500X.750X1.805 This part replaces 039598. Price: $4.95 |
| 11 |
07012600 |
FTG-LUBE .25-28X.256 YWZC This part replaces 411027. Price: $3.45 |
| 12 |
03401800 |
SHEAVE Price: $148.45 |
| 13 |
05412000 |
BRG-BALL .750X1.781X.61 Price: $13.45 |
| 14 |
03032400 |
SPINDLE SHAFT Price: Call Us |
| 15 |
06601400 |
KEY-WDRF .188X.625X.25 SAE 61 Price: $2.45 |
| 16 |
03433500 |
SPINDLE HOUSING This part replaces 039595. Price: $109.95 |
| 17 |
06444100 |
WSHR-FL-STL .754X1.000X.032 YZ Price: $2.45 |
| 18 |
07006300 |
BLT-BTHD .38-16X1.25 GR5 This part replaces 039451. Price: $2.45 |
| 19 |
06500822 |
NUT-LK-TOP-FLG .38-16 ZC120 This part replaces 06542000. Price: $0.95 |
| 20 |
00341900 |
BEARING SLINGER Price: $20.45 |
| 21 |
03037500 |
RETAINER HUB This part replaces 039559. Price: $56.45 |
| 22 |
03485500 |
BLADE TRAY 48 Price: $18.45 |
| 23 |
06601700 |
KEY-SQ .188X.625X.188 SAE 61 This part replaces 035893. Price: $3.45 |
| 24 |
03123700 |
BLADE Price: $20.95 |
| 25 |
03114500 |
SPACER -FLANGED .390X.500X.781 This part replaces 036849. Price: $8.95 |
| 26 |
03441300 |
SHAFT-SPINDLE Price: Call Us |
| 27 |
05901904 |
BLT, HEX .31-18X.50 GR5 ZCC This part replaces 05947200. Price: $1.45 |
| 28 |
03418851 |
BRACKET Price: $61.45 |
| 29 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 30 |
08301800 |
SG-COMP .106X.63X 12.0 WLD 62 This part replaces 039609. Price: $12.95 |
| 31 |
03433900 |
ROD-IDLER SPRING This part replaces 039599. Price: $76.45 |
| 33 |
00542700 |
IDLER, PLASTIC, 4.00 X .50 ID Price: $33.95 |
| 34 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 35 |
06401126 |
WSHR, FLT .505X.880X.072 ZCC This part replaces 06436600. Price: $3.45 |
| 36 |
53401000 |
IDLER ARM W/ZERK This part replaces 03433751. Price: $91.95 |
