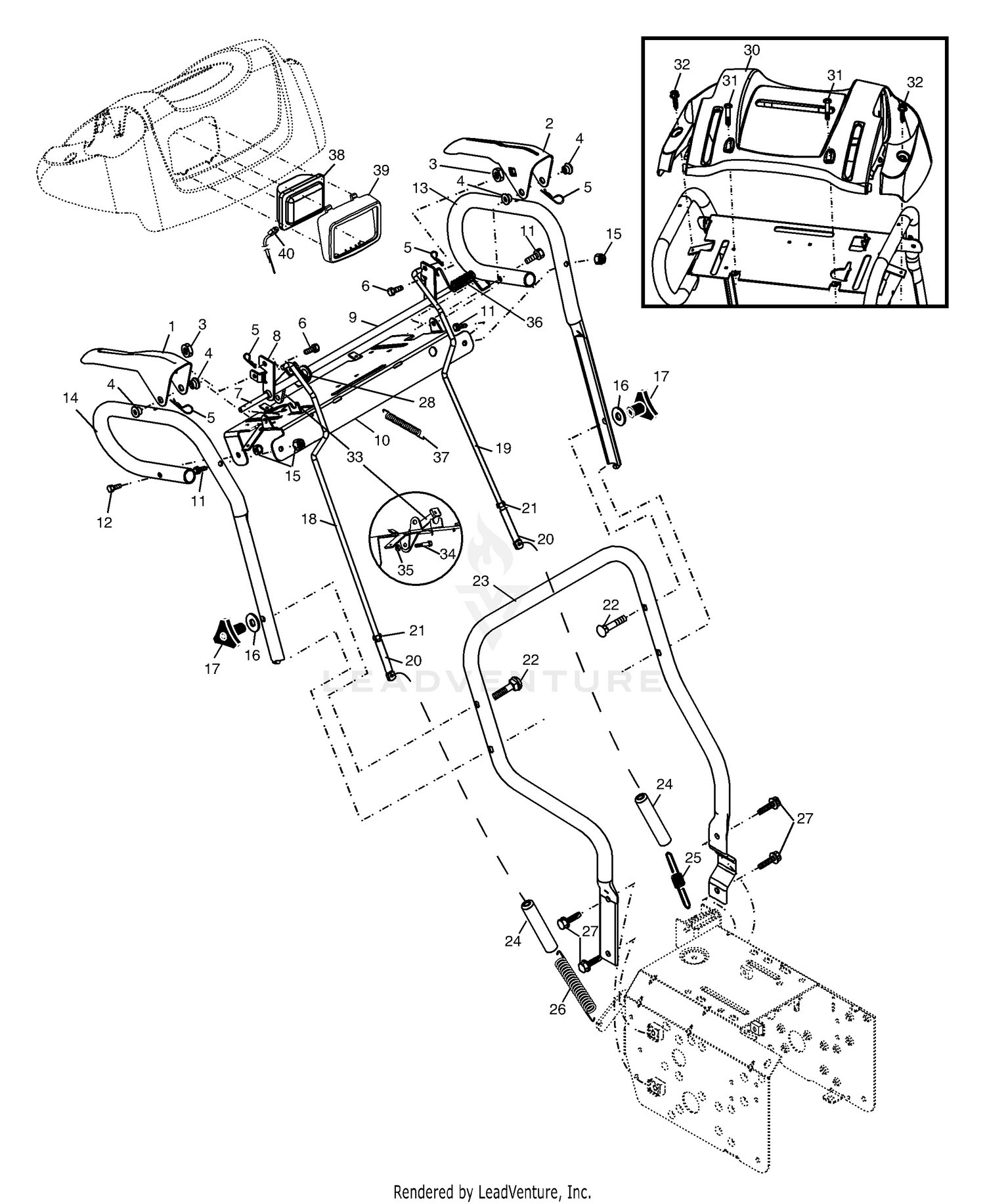

| Ref | Part Number | Description |
|---|
| 1 |
178875X479 |
Lever, Auger Control, RH Price: Call Us |
| 2 |
178648X479 |
Lever, Traction Drive Control, LH Price: Call Us |
| 3 |
179439 |
Nut, Cage 1/4-20 Price: Call Us |
| 4 |
178888 |
Bushing, Flange Price: Call Us |
| 5 |
169675 |
Retainer, Hairpin Price: Call Us |
| 6 |
180402 |
Screw, Hex Head 1/4-20 x 3/4 Price: Call Us |
| 7 |
178652 |
Rod, Interlock Price: Call Us |
| 8 |
184003 |
Tube Assembly, Interlock, RH Price: Call Us |
| 9 |
178651 |
Tube Assembly, Interlock, LH Price: Call Us |
| 10 |
115-4117 |
COMPLETE GEAR CASE This part replaces 105-3707. Price: $569.64 |
| 10 |
178645X479 |
Panel, Control Price: Call Us |
| 11 |
74780524 |
Screw, Hex Head 5/16-18 x 1-1/2 Price: Call Us |
| 12 |
74780528 |
Screw, Hex Head 5/16-18 x 1-3/4 Price: Call Us |
| 13 |
178646X479 |
Handle Tube, LH Price: Call Us |
| 14 |
178696X479 |
Handle Tube, RH Price: Call Us |
| 15 |
73800500 |
Nut, Lock 5/16-18 Price: Call Us |
| 16 |
19131316 |
Washer, Flat 3/8 Price: Call Us |
| 17 |
178899 |
Knob, Handle Price: Call Us |
| 18 |
184594 |
Rod, Auger Control Price: Call Us |
| 19 |
193081 |
Rod, Traction Control Price: Call Us |
| 20 |
127-0425 |
PLUG This part replaces 98-9598. Price: $4.34 |
| 20 |
180428 |
End, Control Rod Price: Call Us |
| 21 |
73350500 |
Nut, Hex, Jam 5/16-18 Price: Call Us |
| 22 |
72120618 |
Bolt, Carriage 3/8-16 x 2-1/4 Price: Call Us |
| 23 |
178643X479 |
Handle Tube, Lower Price: Call Us |
| 24 |
180447 |
Sleeve, Spring Price: Call Us |
| 25 |
180926 |
Spring, Traction Drive Price: Call Us |
| 26 |
178669 |
Spring, Auger Control Price: Call Us |
| 27 |
71210616 |
Screw, Hex Head 3/8-16 x 1 Price: Call Us |
| 28 |
180494 |
Clip, Panel Price: Call Us |
| 30 |
183346 |
Console, Panel Price: Call Us |
| 30 |
98-9388 |
JOINT-PIPE Price: $31.66 |
| 31 |
175262 |
Screw, Hex Head, Tapping #10-24 x 1-1/4 Price: Call Us |
| 32 |
184471 |
Screw, Hex Head, Tapping #10-24 x 1/2 Price: Call Us |
| 33 |
175339X008 |
Latch, Interlock Price: Call Us |
| 34 |
183518 |
Bolt, Shoulder Price: Call Us |
| 35 |
68038 |
Nut, Lock 1/4-20 Price: Call Us |
| 36 |
178831 |
Spring, Torsion Price: Call Us |
| 37 |
178658 |
Spring, Interlock Price: Call Us |
| 38 |
178668 |
Bezel, Light Price: Call Us |
| 39 |
180927 |
Light Price: Call Us |
| 40 |
98-9544 |
SPRING Price: $0.94 |
| 50 |
98-9543 |
SEAT-VALVE Price: $26.61 |
| 60 |
98-9380 |
BALL Price: $0.84 |
| 110 |
98-9540 |
OIL PUMP ROTOR ASM Price: $271.67 |
| 120 |
105-3708 |
COVER-PUMP, OIL Price: $18.70 |
| 130 |
98-9592 |
SCREW Price: $0.70 |
| 140 |
98-9633 |
GASKET-CASE, GEAR Price: $30.19 |
| 150 |
100-1765 |
BOLT This part replaces 98-7496. Price: $1.59 |
| 160 |
105-3797 |
BOLT Price: $1.40 |
| 170 |
98-9356 |
BOLT Price: $2.06 |
| 180 |
98-9437 |
BOLT Price: $1.05 |
| 190 |
99-3510 |
BOLT This part replaces 98-9586. Price: $0.80 |
| 200 |
99-3511 |
BOLT Price: $5.29 |
| 210 |
105-3709 |
STUD Price: $1.13 |
| 220 |
98-7572 |
NUT Price: $0.32 |
| 230 |
98-7699 |
WASHER-SPRING Price: $0.44 |
| 240 |
119-8038 |
SEAL-OIL This part replaces 98-9482. Price: $40.16 |
| 250 |
98-9372 |
O-RING Price: $1.66 |
| 260 |
105-3777 |
O-RING Price: $1.72 |
| 270 |
105-3710 |
STUD Price: $1.16 |
| 280 |
99-3515 |
PLUG-GEARCASE This part replaces 98-9641. Price: $9.00 |
| 290 |
107-9075 |
PLUG-FILLER, OIL This part replaces 98-9449. Price: $7.25 |
