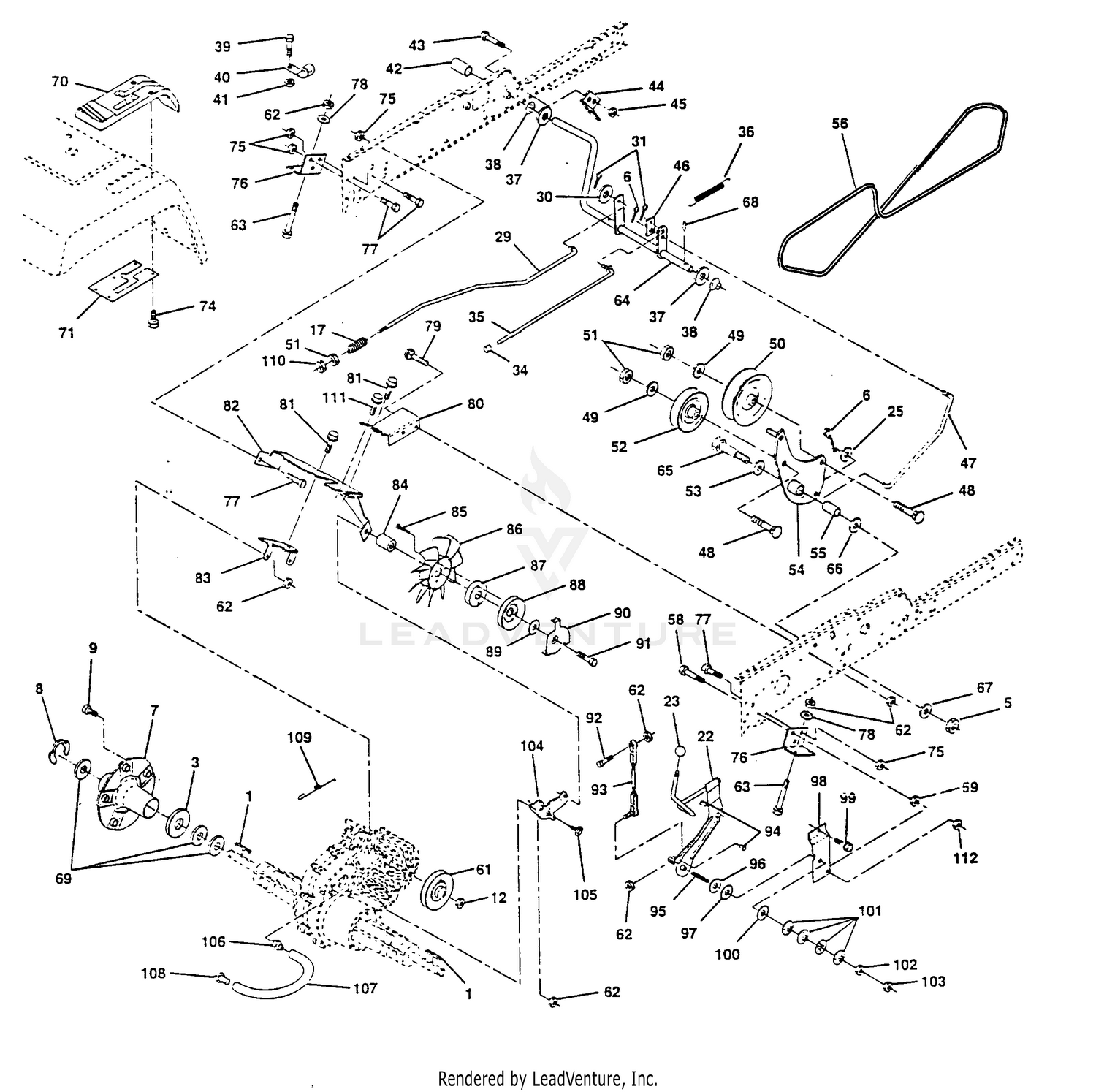

| Ref | Part Number | Description |
|---|
| 1 |
322-3 |
SCREW-HH Price: $0.79 |
| 1 |
532007070 |
Key 1/4 x 2.5 (AYP part number) Price: $3.99 |
| 2 |
32534 |
Lockwasher Price: Call Us |
| 3 |
3211-2 |
SCREW-HH Price: $2.17 |
| 3 |
532007563 |
Washer Thrust Axle Harden (AYP part number) Price: $4.99 |
| 5 |
873680600 |
Nut Crownlock 3/8-16 Price: $1.99 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 6 |
876020412 |
Pin Cotter 1/8 x 3/4 (AYP part number) Price: $3.99 |
| 7 |
23-8670 |
DISCONTINUED Price: Call Us |
| 7 |
532140507 |
Wheel Hub Asm. (AYP part number) Price: $129.99 |
| 8 |
21-5720 |
DISCONTINUED Price: Call Us |
| 8 |
812000053 |
Ring E (AYP part number) Price: $3.99 |
| 9 |
24-2480 |
DISCONTINUED Price: Call Us |
| 9 |
532140080 |
Bolt Hub (AYP part number) Price: $2.99 |
| 10 |
21-0420 |
DISCONTINUED Price: Call Us |
| 11 |
3290-366 |
DISCONTINUED Price: Call Us |
| 12 |
3255-10 |
WASHER-LOCK / EXT Price: $0.25 |
| 12 |
873940800 |
Nut Hex Jam Toplock 1/2-20 (AYP part number) Price: $3.99 |
| 13 |
21-2180 |
DISCONTINUED Price: Call Us |
| 14 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 15 |
321-4 |
SCREW-HH Price: $0.99 |
| 16 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 17 |
3217-5 |
NUT-HEX Price: $0.25 |
| 17 |
532140921 |
Spring Rod Brake (AYP part number) Price: $3.99 |
| 18 |
21-8540 |
DISCONTINUED Price: Call Us |
| 19 |
21-5800 |
DISCONTINUED Price: Call Us |
| 20 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 21 |
2412-41 |
CLAMP-R Price: $4.82 |
| 22 |
21-0340 |
DISCONTINUED Price: Call Us |
| 22 |
532140498 |
Shaft Arm Asm (AYP part number) Price: $27.44 |
| 23 |
532121274 |
Knob (AYP part number) Price: $5.99 |
| 23 |
93-5398 |
SCREW-HH This part replaces 21-0330. Price: $3.22 |
| 24 |
32103-12 |
NUT-WING Price: $1.15 |
| 25 |
21-2220 |
DISCONTINUED Price: Call Us |
| 25 |
819131316 |
Washer 13/32 x 13/16 x 16 Ga. (AYP part number) Price: $2.99 |
| 26 |
21-2240 |
DISCONTINUED Price: Call Us |
| 27 |
21-5630 |
DISCONTINUED Price: Call Us |
| 28 |
38-7430 |
DISCONTINUED This part replaces 21-5790. Price: Call Us |
| 29 |
3219-14 |
NUT-HEX Price: $0.25 |
| 29 |
532140494 |
Brake Rod (AYP part number) Price: $11.99 |
| 30 |
3253-12 |
WASHER-LOCK/SP Price: $0.25 |
| 30 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 31 |
21-5640 |
JOINT-BALL Price: $27.80 |
| 31 |
876020308 |
Pin, Cotter 3/32 x 1/2 (AYP part number) This part replaces 876020312. Price: $1.99 |
| 32 |
21-5620 |
DISCONTINUED Price: Call Us |
| 33 |
108-3831 |
FILTER-FUEL This part replaces 18-1520. Price: $10.09 |
| 34 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 34 |
532071673 |
Cap Plunger (AYP part number) Price: $3.99 |
| 35 |
110-0047 |
HOSE-FUEL This part replaces 18-2400. Price: $12.42 |
| 35 |
532137648 |
Rod Parking Brake (AYP part number) Price: $6.99 |
| 36 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 36 |
532149412 |
SPRING DRIVE GROUND This part replaces 532138364. Price: $3.99 |
| 37 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 37 |
532121749 |
Washer 25/32 x 1-1/4 x 16 Ga. (AYP part number) Price: $1.99 |
| 38 |
3217-7 |
NUT-HEX Price: $0.28 |
| 38 |
532110895 |
Nyliner (AYP part number) Price: $3.10 |
| 39 |
3247-4 |
SCREW-SET Price: $0.54 |
| 39 |
874321016 |
Screw Fin #10-24 x 1 (AYP part number) Price: $2.99 |
| 40 |
532178575 |
ACTUATOR INTERLOCK SWITCH This part replaces 532005304. Price: $3.99 |
| 40 |
95-1823 |
WASHER This part replaces 3-3391. Price: $29.18 |
| 41 |
21-2300 |
ENGINE MOUNT Price: $195.59 |
| 41 |
532069180 |
Locknut #10-24 (AYP part number) This part replaces 873631000. Price: $2.99 |
| 42 |
21-0130 |
RUBBER MOUNT Price: $69.69 |
| 42 |
532123533 |
Cover Pedal (AYP part number) Price: $6.99 |
| 43 |
323-11 |
SCREW-HH Price: $1.08 |
| 43 |
874760412 |
Bolt Hex Head 1/4-20 x 3/4 (AYP part number) Price: $3.99 |
| 44 |
322-6 |
SCREW-HH Price: $0.45 |
| 44 |
532104601 |
Bracket Interlock (AYP part number) Price: $5.46 |
| 45 |
21-0350 |
DISCONTINUED Price: Call Us |
| 45 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 46 |
21-2310 |
ENG MT BRKT *B Price: $63.43 |
| 46 |
532121358 |
Retainer Spring (AYP part number) Price: $2.38 |
| 47 |
3217-6 |
NUT-HEX Price: $1.19 |
| 47 |
532138228 |
Clutch Rod (AYP part number) Price: $8.99 |
| 48 |
23-1850 |
MUFFLER Price: $413.71 |
| 48 |
872110614 |
Bolt Carriage 3/8-16 x 1-3/4 Gr. 5 (AYP part number) Price: $3.99 |
| 49 |
32128-19 |
NUT-HF Price: $0.99 |
| 49 |
819131413 |
Washer 13/32 x 7/8 x 13 Ga (AYP part number) Price: $2.99 |
| 50 |
323-6 |
SCREW-HH Price: $0.66 |
| 50 |
532173438 |
PULLEY.IDLER.FLAT This part replaces 532131494. Price: $14.99 |
| 51 |
23-1570 |
DISCONTINUED Price: Call Us |
| 51 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 52 |
32120-69 |
RING-SNAP Price: $2.78 |
| 52 |
532139123 |
Pulley Idler Grooved (AYP part number) Price: $22.99 |
| 53 |
23-1640 |
BUSHING-TAPERLOCK Price: $68.50 |
| 53 |
532000207 |
Washer Hartdened (AYP part number) Price: $3.99 |
| 54 |
23-1630 |
DISCONTINUED Price: Call Us |
| 54 |
532138390 |
Clutch Arm Asm (AYP part number) Price: $17.67 |
| 55 |
23-1620 |
DISCONTINUED Price: Call Us |
| 55 |
532105706 |
Bearing, Idler (AYP part number) Price: $3.99 |
| 56 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 56 |
532140218 |
V-Belt (AYP part number) Price: $44.99 |
| 57 |
23-1650 |
DISCONTINUED Price: Call Us |
| 58 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 58 |
874760724 |
Bolt Fin Hex 7/16-14 x 1-1/2 (AYP part number) Price: $2.99 |
| 59 |
21-0360 |
NUT-HEX Price: $1.76 |
| 59 |
873220700 |
Nut Hex 7/16-14 (AYP part number) Price: $2.99 |
| 60 |
21-0370 |
DISCONTINUED Price: Call Us |
| 61 |
21-1820 |
STUD-RETAINER, BELT Price: $36.84 |
| 61 |
532140488 |
Pullery Transaxle (AYP part number) Price: $22.99 |
| 62 |
251-252 |
BEARING This part replaces 251-261. Price: $98.35 |
| 62 |
873800500 |
Locknut Hex W/Washer Insert (AYP part number) Price: $2.99 |
| 63 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 63 |
874780548 |
Bolt Fin Hex 5/16-18 x 3 (AYP part number) Price: $2.99 |
| 64 |
21-2260 |
DISCONTINUED Price: Call Us |
| 64 |
532154752 |
SHAFT CLUTCH/BRAKE PEDAL This part replaces 532137649. Price: $37.99 |
| 65 |
21-0050 |
Engine Price: Call Us |
| 65 |
532179613 |
BOLT.SHLDR.3/8-16 This part replaces 532067609. Price: $2.99 |
| 66 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 66 |
532140296 |
Washer Hardened (AYP part number) Price: $2.99 |
| 67 |
241242 |
Clamp Price: Call Us |
| 67 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 68 |
32128-17 |
NUT-LOCK, FLANGE Price: $0.25 |
| 68 |
532005142 |
Pin Roll (AYP part number) Price: $3.99 |
| 69 |
3290-134 |
SCREW Price: $0.27 |
| 69 |
819332616 |
Washer (AYP part number) Price: Call Us |
| 70 |
21-2320 |
DISCONTINUED Price: Call Us |
| 70 |
532139989 |
Console Hydro Fender (AYP part number) Price: $22.99 |
| 71 |
24-2560 |
DISCONTINUED Price: Call Us |
| 71 |
532140927 |
Plate Console Shift (AYP part number) Price: $4.99 |
| 72 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 73 |
24-2490 |
SPACER Price: $5.18 |
| 74 |
532142432 |
Screw, Hex Wsh Hi-Lo 1/4-1/2 (AYP part number) Price: $3.99 |
| 75 |
873800700 |
Nut Lock Hex 7/16 (AYP part number) Price: $2.99 |
| 76 |
532140481 |
Bracket Transaxle (AYP part number) Price: $4.99 |
| 77 |
874780716 |
BOLT FIN HEX 7/16-14 X 1 This part replaces 874760716. Price: $2.99 |
| 78 |
819111212 |
Washer 11/32 x 3/4 x 12 Ga. (AYP part number) Price: $5.99 |
| 79 |
872110505 |
Bolt Carriage 5/16-18 x 5/8 (AYP part number) Price: $3.99 |
| 80 |
532140484 |
Bracket Torque RH (AYP part number) Price: $2.99 |
| 81 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 (AYP part number) This part replaces 817490612. Price: $3.99 |
| 82 |
532154561 |
KIT.BRAKET/HDW.MOUNT.HYDRO This part replaces 532140482. Price: $14.99 |
| 83 |
532140479 |
Strap Torque Mid (AYP part number) Price: $4.99 |
| 84 |
532140490 |
Spacer (AYP part number) Price: $5.99 |
| 85 |
817541020 |
Screw #10-24 x 1-1/4 (AYP part number) Price: $3.99 |
| 86 |
532140462 |
Fan 7" Hydro (AYP part number) Price: $7.99 |
| 87 |
532140491 |
Adapter Fan (AYP part number) Price: $6.99 |
| 88 |
532161592 |
PULLEY This part replaces 532140492. Price: $27.99 |
| 89 |
734117201 |
WASHER This part replaces 819131312. Price: $1.99 |
| 90 |
532140489 |
Keeper Belt (AYP part number) Price: $5.99 |
| 91 |
817490644 |
Screw Thdrol 3/8-16 x 2-3/4 (AYP part number) Price: $4.99 |
| 92 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD This part replaces 874760520. Price: $2.99 |
| 93 |
532140502 |
Link Shift Asm (AYP part number) Price: $54.99 |
| 94 |
532133835 |
Fastner Christmas Tree (AYP part number) Price: $3.99 |
| 95 |
823200528 |
Screw Set 5/16-18 x 1.75 (AYP part number) Price: $3.99 |
| 96 |
532141103 |
Washer Nickel Plated (AYP part number) Price: $3.99 |
| 97 |
532126874 |
Bearing Trust (AYP part number) Price: $3.73 |
| 98 |
532141004 |
Bracket Shift (AYP part number) Price: $2.99 |
| 99 |
874930624 |
Bolt, Hex Head 3/8-16 UNC x 1-1/2 (AYP part number) This part replaces 817490624. Price: $3.99 |
| 100 |
532126881 |
Washer Compression (AYP part number) Price: $3.99 |
| 101 |
532059285 |
Washer Bellville (AYP part number) Price: $3.99 |
| 102 |
873930500 |
NUT.CENTERLOCK.5/16- This part replaces 873560500. Price: $3.99 |
| 103 |
873220500 |
NUT This part replaces 873350500. Price: $3.99 |
| 104 |
532140480 |
Bracket Idler (AYP part number) Price: $3.99 |
| 105 |
817580408 |
Screw Tap 1/4-20 x 1/2 (AYP part number) Price: $5.99 |
| 106 |
532142576 |
Fitting Vent Hose (AYP part number) Price: $11.99 |
| 107 |
532142577 |
Vent Hose (AYP part number) Price: $6.99 |
| 108 |
532142578 |
Cap Vent (AYP part number) Price: $34.99 |
| 109 |
532140929 |
Spring Return Brake (AYP part number) Price: $14.99 |
| 110 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $3.99 |
| 111 |
532088652 |
Screw, Hinge (AYP part number) Price: $3.99 |
| 112 |
873680700 |
Nut, Crownlock 7/16-14 (AYP part number) Price: $2.99 |
