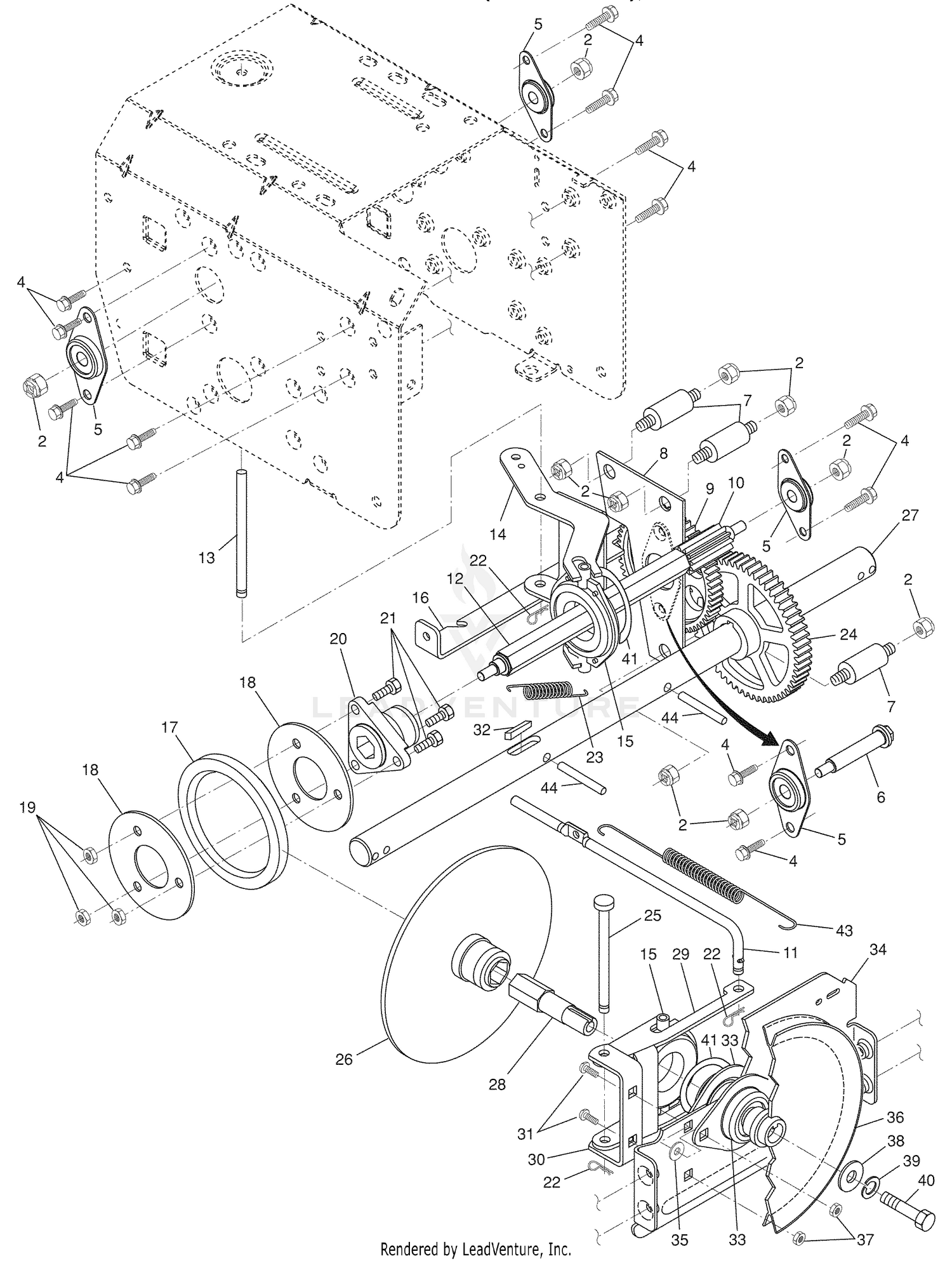

| Ref | Part Number | Description |
|---|
| 1 |
69-9330-01 |
COVER This part replaces 69-9330. Price: $20.65 |
| 2 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 2 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 3 |
340-128 |
NUT-BULKHEAD Price: $6.11 |
| 4 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 4 |
69-8920 |
WASHER Price: $3.19 |
| 5 |
532180017 |
BEARING, FLANGE Price: $22.99 |
| 5 |
69-8950 |
SPACER Price: $18.52 |
| 6 |
240-2 |
GROMMET-RUBBER Price: $20.20 |
| 6 |
532180134 |
SHAFT, AUXILIARY Price: $6.99 |
| 7 |
237-164 |
GROMMET Price: $16.34 |
| 7 |
532179270 |
SPACER, PLATE Price: $9.99 |
| 8 |
532192616 |
PLATE.AUXILIARY.BLACK This part replaces 532192907. Price: $4.99 |
| 8 |
95-0821 |
DECAL-OIL, HYD This part replaces 69-0920. Price: $6.99 |
| 9 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 9 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180082. Price: $199.99 |
| 10 |
532180065 |
GEAR, PINION Price: $12.99 |
| 10 |
69-9760 |
COVERPLATE Price: $5.38 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 11 |
532187714 |
ROD.CLUTCH.YELLOW.ZINC Price: $9.99 |
| 12 |
32152-4 |
NUT-LOCK, CONE Price: $1.29 |
| 12 |
532180066 |
SHAFT.HEX.LONG Price: $84.99 |
| 13 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 13 |
532178807 |
PIN, PIVOT Price: $3.99 |
| 14 |
532184080 |
LEVER, SPEED CONTROL Price: $12.99 |
| 14 |
69-9761 |
PLATE-COVER Price: $6.26 |
| 15 |
597412801 |
BEARING HOUSING ASSY TRUNNION This part replaces 532175344. Price: $29.99 |
| 15 |
69-6130 |
DISCONTINUED Price: Call Us |
| 16 |
532435793 |
BRACKET.SHIFT.PIVOT.BLACK This part replaces 532187857. Price: $5.99 |
| 16 |
69-6120 |
DISCONTINUED Price: Call Us |
| 17 |
56-7974 |
CLAMP-TUBE Price: $2.17 |
| 17 |
585021001 |
RING.RUBBER.4.5".SNOW.DR(2 2MC This part replaces 532179831. Price: $22.99 |
| 18 |
321-15 |
SCREW-HH Price: $0.61 |
| 18 |
532435789 |
PLATE.RUBBER.WHEEL.BLACK This part replaces 532199509. Price: $7.99 |
| 19 |
56-7973 |
CLAMP-TUBE Price: $15.56 |
| 19 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 20 |
532178613 |
HUB, RUBBER WHEEL Price: $22.99 |
| 20 |
56-7972 |
CLAMP-TUBE Price: $13.55 |
| 21 |
3256-56 |
WASHER-FLAT Price: $1.15 |
| 21 |
596322201 |
BOLT HEXAGON BOLT 5/16-18 X 7/ This part replaces 874760514. Price: $2.99 |
| 22 |
321-9 |
SCREW-HH Price: $0.27 |
| 22 |
532085179 |
RETAINER CLIP PM Price: $3.99 |
| 23 |
322-10 |
SCREW-HH Price: $0.70 |
| 23 |
532180135 |
SPRING, BIAS Price: $3.99 |
| 24 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 24 |
532441417 |
KIT.GEAR.DRIVE.SNOW This part replaces 532180081. Price: $199.99 |
| 25 |
532178695 |
PIN, PIVOT LEVER Price: $4.99 |
| 25 |
56-7975 |
DISCONTINUED Price: Call Us |
| 26 |
532197763 |
DRIVE PLATE WELDMENT Price: $54.99 |
| 26 |
56-7971 |
CLAMP-TUBE Price: $17.90 |
| 27 |
532404307 |
SHAFT.AXLE.POWER.STEERING Price: $59.99 |
| 27 |
69-6090 |
HYDRAULIC TUBE Price: $143.30 |
| 28 |
532197764 |
SHAFT.HEX.SHORT Price: $11.99 |
| 28 |
69-5800 |
TUBE-HYD Price: $94.76 |
| 29 |
237-21 |
O-RING Price: $0.70 |
| 29 |
532184077 |
LEVER.SHIFTER.PLATE.BLACK Price: $9.99 |
| 30 |
532175349 |
BRACKET, SHIFTER SUPPORT This part replaces 532184076. Price: $4.99 |
| 30 |
69-8980 |
WASHER Price: $0.58 |
| 31 |
240-6 |
GROMMET-RUBBER Price: $15.80 |
| 31 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 872270505. Price: $2.99 |
| 32 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
| 32 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $4.99 |
| 33 |
532188909 |
BEARING FLANGE Price: $24.99 |
| 33 |
69-8990 |
SPACER Price: $12.49 |
| 34 |
340-78 |
NUT-LOCK Price: $1.63 |
| 34 |
532184075 |
PLATE.DRIVE.MOUNTING.BLACK Price: $14.99 |
| 35 |
532182504 |
SPACER, BEARING Price: $5.99 |
| 35 |
69-6080 |
TUBE-HYD Price: $115.22 |
| 36 |
532191080 |
PULLEY.TRACTION.7.75 Price: $49.99 |
| 36 |
69-6070 |
TUBE-HYD Price: $115.22 |
| 37 |
596039201 |
GSPW Hardware This part replaces 532155377. Price: $2.99 |
| 37 |
71-2560-03 |
SUPPORT-BULKHEAD This part replaces 71-2560. Price: $22.67 |
| 38 |
32128-20 |
NUT-HF Price: $0.99 |
| 38 |
819111507 |
WASHER, FLAT Price: $4.99 |
| 39 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 40 |
874950512 |
Screw, Hex Head 5/16-18 x 3/4 Price: $3.99 |
| 41 |
583607301 |
RING.RETAINING. This part replaces 812000012. Price: $2.99 |
| 43 |
532179095 |
SPRING.RETURN Price: $3.99 |
