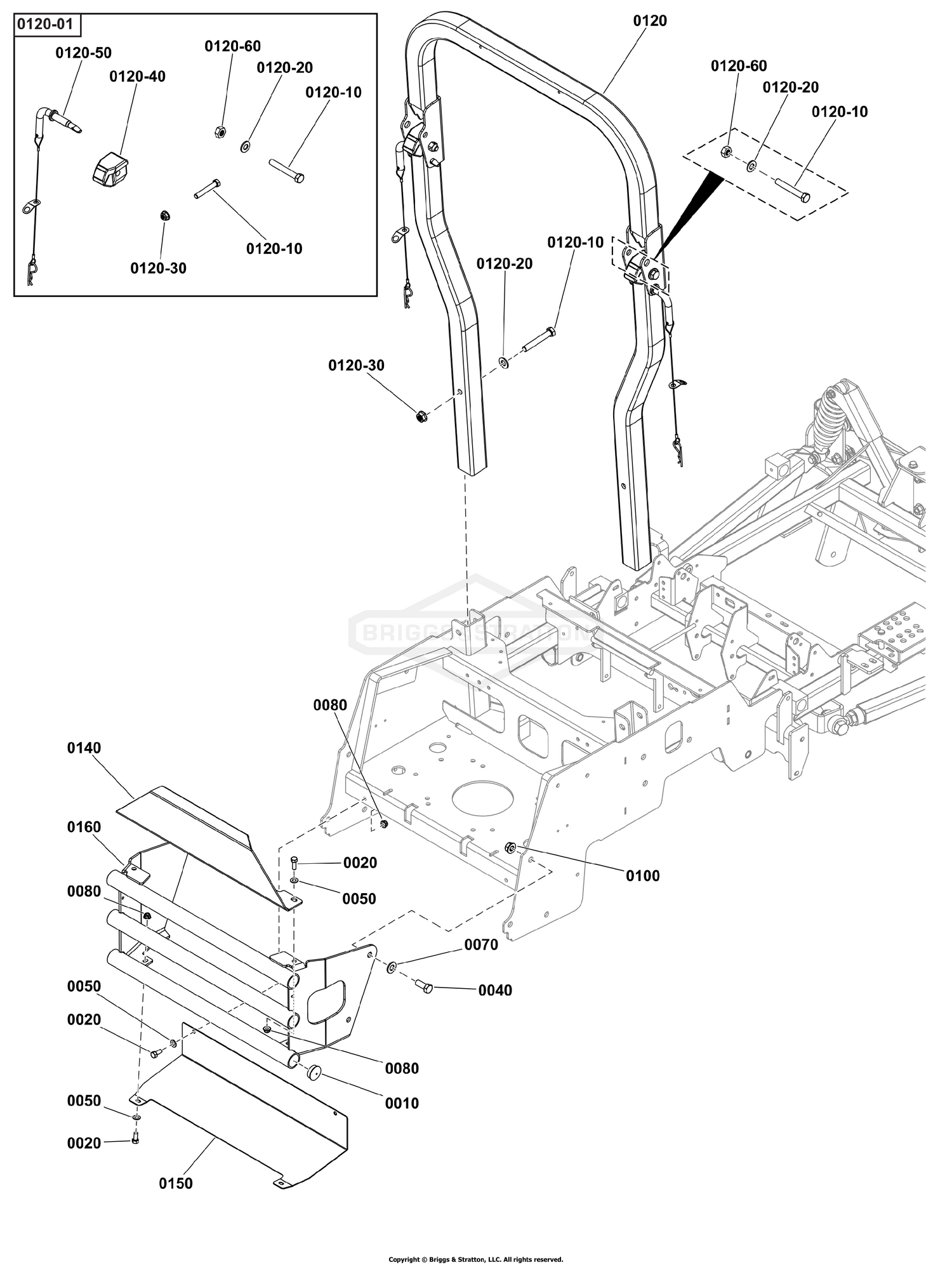

Rear Bumper and ROPS Group
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 0010 | 5023484SM | PLUG, PANEL, 1.25 - B Price: $3.52 |
| 0020 | 5025011X8FS | BOLT Price: $3.26 |
| 0040 | 5025017X10YP | BOLT, 1/2-13 X 1-1/4 Price: $3.40 |
| 0050 | 703350 | WASHER Price: $3.72 |
| 0070 | 5025158SM | WASHER, 1/2" SAE Price: $3.51 |
| 0080 | 703115 | NUT Price: $3.06 |
| 0100 | 770225 | NUT Price: $2.76 |
| 0140 | 5410486BFS | PLATE, CARBURETOR COVER Price: $48.49 |
| 0150 | 5410485AYP | PLATE, HEAT SHIELD Price: $62.70 |
