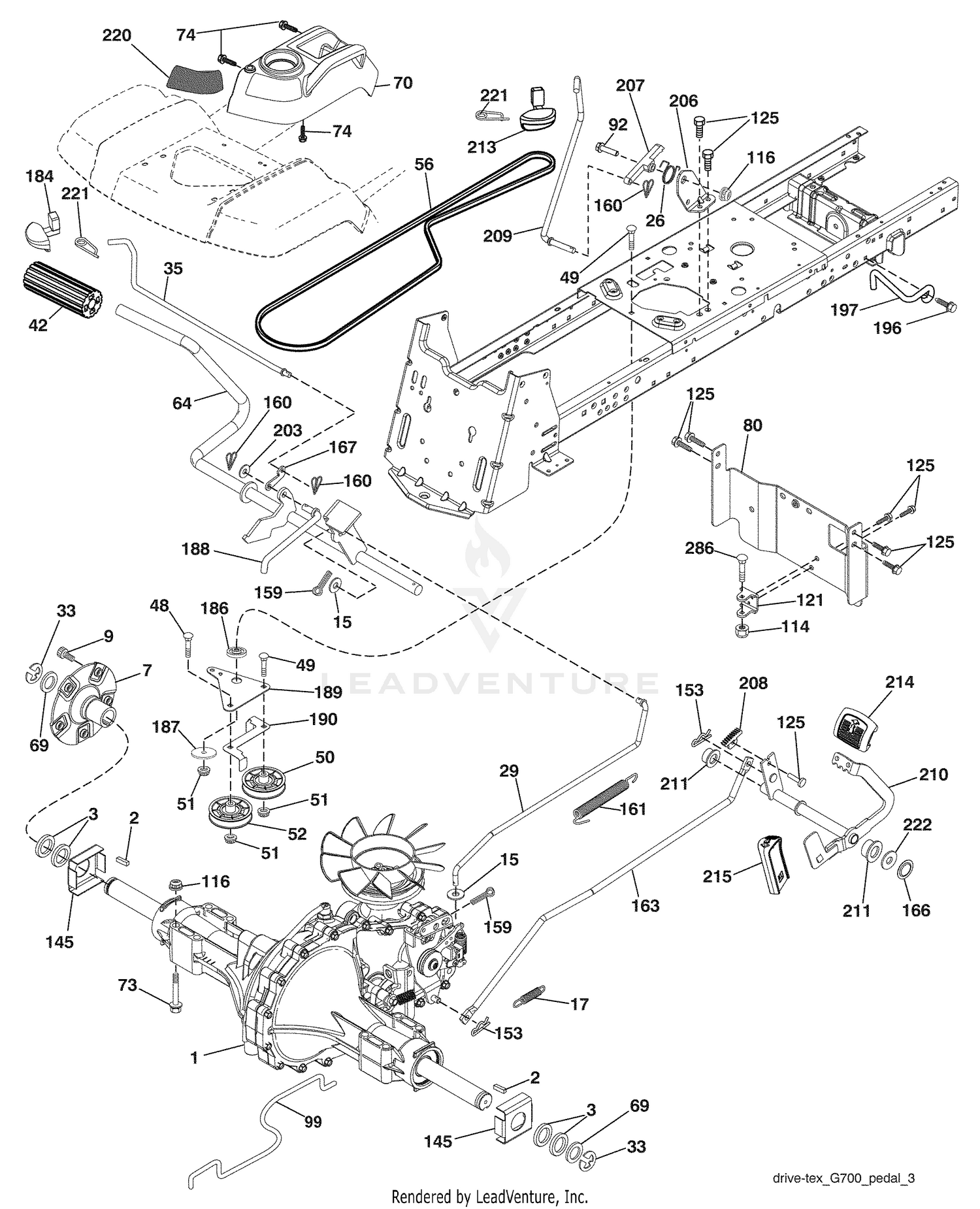

| Ref | Part Number | Description |
|---|
| 1 |
72-5800 |
BOLT - HEX FLG HD Price: $3.55 |
| 2 |
532007070 |
KEY 1/4 X 2.5 Price: $4.99 |
| 2 |
72-4880 |
DISCONTINUED Price: Call Us |
| 3 |
532007563 |
WASHER T Price: $6.99 |
| 3 |
72-4890 |
O-RING Price: $18.94 |
| 4 |
251-344 |
BEARING-BALL Price: $85.93 |
| 5 |
72-4960 |
SHIM - 0.1MM Price: $67.66 |
| 7 |
531149201 |
SERVICE KIT HUB.ASM HUB.ASM.WH This part replaces 532199837. Price: $39.99 |
| 7 |
72-5810 |
BOLT Price: $3.68 |
| 8 |
72-4900 |
DIFF CAGE Price: $329.33 |
| 9 |
596218701 |
Bolts This part replaces 532140080. Price: $2.99 |
| 9 |
72-4930 |
DISCONTINUED Price: Call Us |
| 10 |
72-4950 |
DIFF PINION GEAR Price: $66.78 |
| 11 |
72-5040 |
DISCONTINUED Price: Call Us |
| 12 |
72-4910 |
DISCONTINUED Price: Call Us |
| 13 |
76-7280 |
BEARING This part replaces 251-345. Price: $134.09 |
| 14 |
93-3664 |
O-RING Price: $12.85 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
93-3665 |
O-RING Price: $16.52 |
| 16 |
83-5270 |
RIGHT AXLE TUBE Price: $1,863.45 |
| 17 |
532197296 |
SPRING.BRAKE.HG3000/3500 Price: $5.99 |
| 17 |
83-5280 |
AXLE - RIGHT Price: $887.86 |
| 18 |
251-350 |
BALL BEARING Price: $40.56 |
| 19 |
72-5360 |
RETAINING RING Price: $14.24 |
| 20 |
72-5100 |
DISCONTINUED Price: Call Us |
| 21 |
72-5090 |
DISCONTINUED Price: Call Us |
| 22 |
72-5370 |
RETAINING RING Price: $3.87 |
| 23 |
72-5130 |
VENT Price: $33.03 |
| 24 |
72-4870 |
CASE Price: $3,058.80 |
| 25 |
72-5140 |
O-RING Price: $8.20 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 26 |
72-5150 |
PLUG Price: $13.09 |
| 27 |
72-5840 |
DISCONTINUED Price: Call Us |
| 28 |
72-5820 |
PLUG Price: $18.26 |
| 29 |
532418186 |
ROD BRAKE Price: $29.99 |
| 29 |
72-5160 |
SHIM - 0.1MM Price: $17.37 |
| 31 |
254-108 |
DISCONTINUED Price: Call Us |
| 32 |
72-5460 |
O-RING Price: $12.00 |
| 33 |
812000053 |
E RING HYT Price: $3.99 |
| 33 |
83-5350 |
CASE - BEARING Price: $759.12 |
| 34 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 35 |
33114-025 |
SCREW-HH This part replaces 48-9460. Price: $0.70 |
| 35 |
583864502 |
Rods This part replaces 532199591. Price: $6.99 |
| 36 |
83-5360 |
OIL SEAL Price: $38.03 |
| 37 |
83-5340 |
NUT - BEARING Price: $23.69 |
| 38 |
83-5330 |
WASHER - BEARING Price: $10.69 |
| 39 |
254-109 |
DISCONTINUED Price: Call Us |
| 40 |
72-4940 |
DIFF SIDE GEAR Price: $93.89 |
| 41 |
83-5310 |
DISCONTINUED Price: Call Us |
| 42 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 43 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 44 |
83-5290 |
AXLE TUBE - LEFT Price: $1,863.45 |
| 45 |
72-5030 |
DISCONTINUED Price: Call Us |
| 46 |
72-5440 |
DISCONTINUED Price: Call Us |
| 47 |
72-5020 |
PINION SHAFT Price: $54.38 |
| 48 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
532420807 |
V-BELT.GROUND.DRIVE. Price: $39.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 69 |
532123800 |
WASHER Price: $3.99 |
| 70 |
532439661 |
CONSOLE.ASM.RH.GT.FC.HUSQ This part replaces 532400530. Price: $79.99 |
| 73 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532418184 |
STRAP.TORQUE.YT.G700 Price: $27.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532418188 |
SPRING.BYPASS.YT.G700 Price: $11.99 |
| 114 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 121 |
532175611 |
BRACKET STRAP TORQUE Price: $6.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 145 |
532163168 |
WASHER.AXLE.FLANGE.HG-3000 Price: $7.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
532418185 |
ROD PEDAL CONTROL Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 This part replaces 532197290. Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531171001 |
SERVICE KIT BELLCRANK BELLCRAN This part replaces 532407504. Price: $4.99 |
| 190 |
532407505 |
KEEPER BELLCRANK ROUND DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532199769 |
BRKT.ANIT-ROTATION.CLUTCH Price: $6.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111116. Price: $2.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 220 |
532198909 |
REFLECTOR.LH.TEX GT HU Price: $14.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
