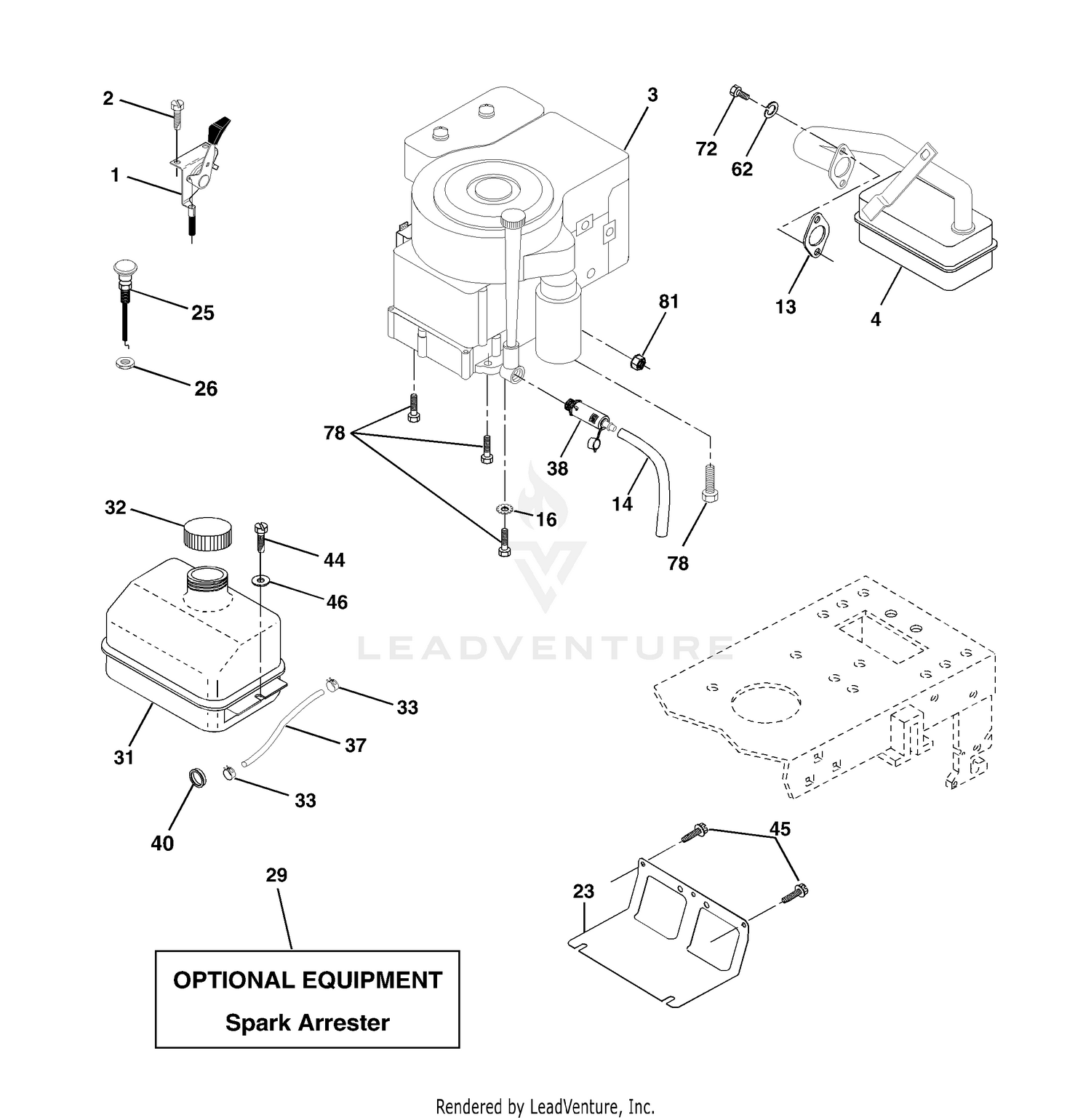

Engine

Engine

Parts (40)

RefPart NumberDescription
1 170551 Control Th/ch Flag Price: Call Us
2 17720408 Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us
4 137352 Muffler Exhaust B&S Price: Call Us
010 105-3723 CAMSHAFT-FUEL Price: $424.59
13 165291 Gasket Eng 1 313 Id Tin Plated Price: Call Us
14 148315 Plug Drain Oil Easy Price: Call Us
16 11050600 Washer Lock Ext Tooth 3/8 Price: Call Us
020 98-9382 BEARING-BALL Price: $23.27
23 169837 Shield BRN/DBR Guard Price: Call Us
29 137180 Kit Spark Arrestor (Flat Scrn) Price: Call Us
030 98-9383 DISCONTINUED Price: Call Us
31 109202X Tank Fuel Front Price: Call Us
32 140527 Cap Asm Fuel Price: Call Us
33 123487X Clamp Hose Price: Call Us
37 137040 Line Fuel 20" Price: Call Us
38 148315 Tube Oil Drain Easy Price: Call Us
040 98-9669 GEAR-PUMP, INJECTION Price: $86.00
40 124028X Bushing Snap Nyl Blk Fuel Line Price: Call Us
44 17490412 Screw Thdrol 1/4-20 x 3/4 Price: Call Us
45 17000612 Screw Hex Wsh Thdrol 3/8-16 Price: Call Us
46 19091416 Washer 9/32 X 7/8 X 16 Ga Price: Call Us
050 98-9590 NUT-CAP Price: $3.86
060 98-9595 KEY-WOODRUFF Price: $2.04
62 10040500 Washer Lock Hvy Hlcl Spr Price: Call Us
070 98-9511 STOPPER-FUEL, CAMSHAFT Price: $5.18
72 71070512 Screw Hexcap 5/16-18 x 3/4 Price: Call Us
78 17060620 Screw 3/8-16 x 1-1/4 Price: Call Us
080 98-9350 BOLT Price: $0.98
090 105-3724 GOVERNOR SHAFT ASM Price: $822.46
100 105-3725 SHAFT-GOVERNOR Price: $47.55
110 98-9562 HOLDER-GEAR, GOVERNOR Price: $61.49
120 98-9673 GEAR-GOVERNOR Price: $137.25
130 98-9561 HOLDER-WEIGHT, GOVERNOR Price: $23.68
140 98-9559 GOVERNOR WEIGHT ASM Price: $105.15
150 98-9560 SHAFT-WEIGHT, GOVERNOR Price: $6.17
160 98-9692 ROLLER Price: $11.45
170 98-9563 SLEEVE-GOVERNOR Price: $29.68
180 98-9564 WASHER-THRUST Price: $5.01
190 98-9381 BEARING-BALL Price: $21.66
200 98-9657 CIRCLIP-SHAFT, GOVERNOR Price: $4.48
