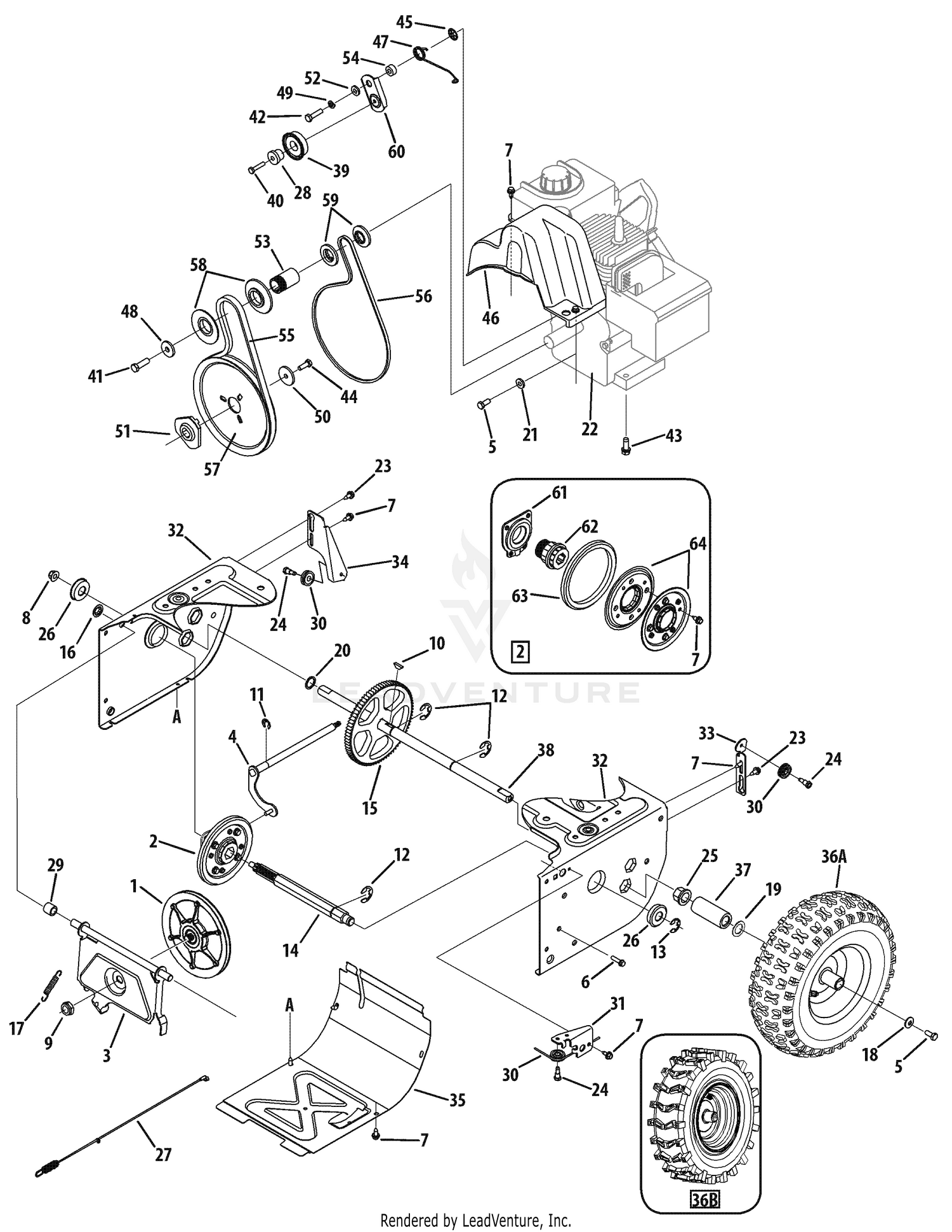

| Ref | Part Number | Description |
|---|
| 1 |
656-04055A |
FRICTION WHEEL DISC ASSEMBLY This part replaces 656-04025A. Price: $52.47 |
| 2 |
684-04153C |
Friction Wheel Assembly, 5.5 OD This part replaces 684-04153. Price: $89.34 |
| 3 |
684-04154B-0637 |
Friction Wheel Support Bracket This part replaces 684-04154. Price: $36.47 |
| 4 |
684-04156A |
Rod Shift Assembly Price: $54.39 |
| 5 |
710-1652 |
Hex Screw, 5/16-24 x .750 Price: $3.86 |
| 6 |
710-0788 |
Screw, 1/4-20 x 1.000 Price: $6.20 |
| 7 |
710-0896 |
Screw, 1/4-20 x .625 Price: $3.86 |
| 8 |
712-04065 |
Flange Lock Nut, 3/8-16, Nylon Price: $3.68 |
| 9 |
712-0413 |
Jam Lock Nut, 5/8-18, Nylon Price: $5.50 |
| 10 |
714-0126 |
Hi-pro Key, 6/16 x 3/4 Dia Price: $4.05 |
| 11 |
916-0104 |
E-Ring This part replaces 716-0104. Price: $3.37 |
| 12 |
716-0136 |
Retaining E-Ring, .875 Dia Price: $7.56 |
| 13 |
716-0231 |
E-Ring, .750 Dia Price: $3.50 |
| 14 |
917-04209A |
Hex Shaft, 7-Tooth This part replaces 717-04209A. Price: $125.78 |
| 15 |
917-04230 |
Gear, 80-Tooth This part replaces 717-04230. Price: $94.93 |
| 16 |
726-0221 |
Speed Nut, .500 Price: $5.34 |
| 17 |
932-0264 |
Extension Spring This part replaces 732-0264. Price: $4.40 |
| 18 |
736-0242 |
Bell Washer, .340 x .872 x .060 Price: $3.75 |
| 19 |
736-0287 |
Flat Washer, .793 x 1.24 x .060 Price: $3.93 |
| 20 |
736-04161 |
Flat Washer, .75 x 1.00 x .060 Price: $6.01 |
| 21 |
748-0234 |
Shoulder Spacer Price: $3.86 |
| 22 |
790-00289B-0637 |
COVER PLATE (POWDER BLACK) This part replaces 790-00289A. Price: $23.34 |
| 23 |
738-04184A |
Shoulder Screw, .37 x .105, 1/4-20 Price: $5.99 |
| 24 |
738-0924A |
Screw, 1/4-28, .375 Price: $5.94 |
| 25 |
941-0245 |
Hex Flange Bearing, .75 ID This part replaces 741-0245. Price: $9.07 |
| 26 |
941-0563 |
Ball Bearing, 17 x 40 x 12 This part replaces 741-0563. Price: $33.84 |
| 27 |
946-04229B |
Wheel Clutch Cable, 44.95" This part replaces 746-04229. Price: $18.98 |
| 28 |
750-04571 |
Shoulder Spacer, .26 x .79 x .538 Price: $6.01 |
| 29 |
748-0190 |
Spacer, .508 iD x .75 OD x .68 Price: $5.48 |
| 30 |
756-0625 |
Cable Roller Price: $8.52 |
| 31 |
790-00096 |
Auger Cable Front Bracket Price: $6.65 |
| 32 |
790-00180E |
DRIVE FRAME HOUSING This part replaces 790-00180. Price: $122.39 |
| 33 |
790-00206B |
AUGER CABLE GUIDE BRACKET This part replaces 790-00206A. Price: $7.40 |
| 34 |
790-03997 |
CABLE GUIDE BRACKET (DRIVE) This part replaces 790-00207A. Price: $4.55 |
| 35 |
790-00316 |
Frame Cover Price: $33.77 |
| 36A |
N/A |
Wheel Assy |
| 36B |
634-04145 |
X-Trac Wheel Assy., LH 16 x 4.8 x 8 Price: $191.87 |
| 36B |
634-04146 |
X-Trac Wheel Assy., RH 16 x 4.8 x 8 Price: $190.96 |
| 36B |
634-04147A |
X-Trac Wheel Assy., LH 15 x 5 x 6 Price: $170.15 |
| 36B |
634-04148A |
X-Trac Wheel Assy., RH 15 x 5 x 6 Price: $166.08 |
| 36B |
634-04168A |
X-Trac Wheel Assy., RH 13 x 4 x 6 Price: $135.50 |
| 36B |
634Z04167A-5103 |
WHEEL ASSEMBLY (13 x 4 x 6) (LH)(SBD GRAY) This part replaces 634-04167A. Price: $166.77 |
| 37 |
731-04873 |
Spacer, 1.25 x .75 x 3.0 Price: $8.93 |
| 38 |
938-04493 |
WHEEL AXLE SHAFT .75 x 22" This part replaces 738-04168. Price: $55.87 |
| 39 |
684-04169 |
Idler Pulley Assembly Price: $29.87 |
| 40 |
710-0809 |
Hex Screw, 1/4-20 x 1.25 Price: $6.37 |
| 41 |
710-0191 |
Hex Screw, 3/8-24, 1.25 Price: $4.02 |
| 42 |
710-0672 |
Hex Screw, 5/16-24, 1.25 Price: $3.85 |
| 43 |
710-0654A |
Sems Screw, 3/8-16 x 1.00 Price: $3.75 |
| 44 |
710-1245B |
Hex Screw, 5/16-24 , .875 Price: $7.21 |
| 45 |
726-04012 |
Push-On Nut, .25 Dia Price: $6.20 |
| 46 |
631-05321 |
BELT COVER (SMALL BLOCK) This part replaces 731-04792A. Price: $21.88 |
| 47 |
732-04308C |
Torsion Spring, .850 dia. x .333 lg. This part replaces 732-04308A. Price: $4.42 |
| 48 |
736-0247 |
Flat Washer, .34 x 1.50 x .150 Price: $8.82 |
| 49 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 50 |
736-0505 |
Flat Washer, .406 x 1.25 x .157 Price: $5.65 |
| 51 |
748-04053A |
Adapter Pulley, .75 Dia Price: $19.41 |
| 52 |
748-04112B |
Shoulder Spacer, .3175 x .5 x .0975 This part replaces 748-04112A. Price: $3.60 |
| 53 |
750-04303 |
Spacer, .875 ID x 1.185 OD Price: $15.09 |
| 54 |
750-04477A |
Spacer, .340 x .750 x .330 This part replaces 750-04477. Price: $4.53 |
| 55 |
954-04050A |
Auger Drive Belt This part replaces 754-04050. Price: $25.43 |
| 56 |
954-0367 |
Wheel Drive Belt This part replaces 754-0367. Price: $25.67 |
| 57 |
756-04109 |
Auger Drive Pulley, 8.1 x .5 Price: $47.55 |
| 58 |
756-06563 |
HALF PULLEY A2.76 x 1.140 SPLINE This part replaces 756-04113. Price: $3.40 |
| 59 |
756-04252 |
Pulley Half, 1/4-V x 1.5 OD Price: $5.62 |
| 60 |
790-00208D |
Wheel Drive Idler Bracket This part replaces 790-00208B. Price: $7.85 |
| 61 |
618-0063A |
Bearing Assembly Price: $80.89 |
| 63 |
935-04054A |
FRICTION WHEEL 5.50OD This part replaces 735-04054. Price: $35.10 |
