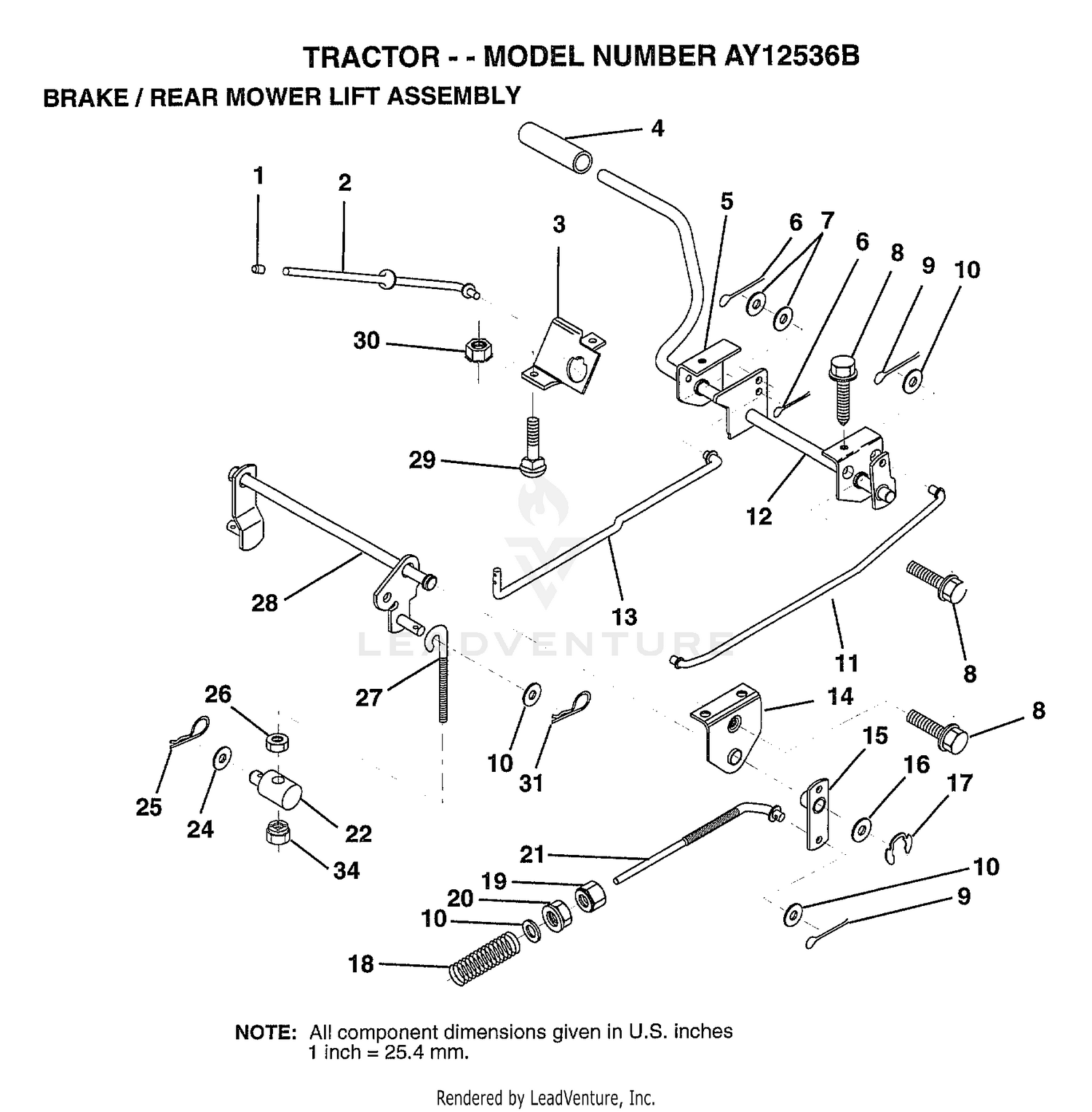

| Ref | Part Number | Description |
|---|
| 1 |
323-7 |
SCREW-HH Price: $0.65 |
| 1 |
71673 |
PLUNGER CAP T Price: Call Us |
| 2 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 3 |
32146-20 |
NUT-HEX Price: $3.23 |
| 4 |
8156H |
FOOT PEDAL COVER Price: Call Us |
| 4 |
99-6940-03 |
AXLE SUPPORT ASM Price: $974.39 |
| 5 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 6 |
237-165 |
GROMMET Price: $15.70 |
| 6 |
76020312 |
SUB= 3145 Price: Call Us |
| 7 |
19131016 |
WASHER Price: Call Us |
| 8 |
17490508 |
SCREW LT Price: Call Us |
| 8 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 9 |
140-6101 |
PIN ASM-AXLE PIVOT This part replaces 98-8173. Price: $42.42 |
| 9 |
76020412 |
COTTER PIN Price: Call Us |
| 10 |
19131316 |
WASHER Price: Call Us |
| 10 |
71-4540 |
WASHER-THRUST Price: $1.97 |
| 11 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 12 |
139933 |
PEDAL ASM CL/BK36 Price: Call Us |
| 12 |
99-8431 |
WASHER-THRUST Price: $4.63 |
| 13 |
99-8432 |
WASHER-THRUST Price: $4.21 |
| 15 |
133332 |
PVT BRAKE ARM ASM Price: Call Us |
| 16 |
19251816 |
WASHER T Price: Call Us |
| 17 |
12000034 |
KLIP RING Price: Call Us |
| 18 |
151332 |
SPRING ROD BRAKE Price: Call Us |
| 19 |
73350600 |
NUT Price: Call Us |
| 20 |
73800600 |
NUT Price: Call Us |
| 21 |
131460 |
SUB= 532131460 Price: Call Us |
| 22 |
144585 |
TRUNNION.LIFT. Price: Call Us |
| 24 |
19132012 |
WASHER Price: Call Us |
| 25 |
4921H |
SPRING.RETAINER Price: Call Us |
| 26 |
73930600 |
LOCKNUT Price: Call Us |
| 28 |
140776 |
LIFT ASM MOW REAR Price: Call Us |
| 29 |
72110506 |
SUB= 72270506 Price: Call Us |
| 30 |
73510500 |
NUT Price: Call Us |
| 31 |
3146R |
RETAINER.SPRING Price: Call Us |
