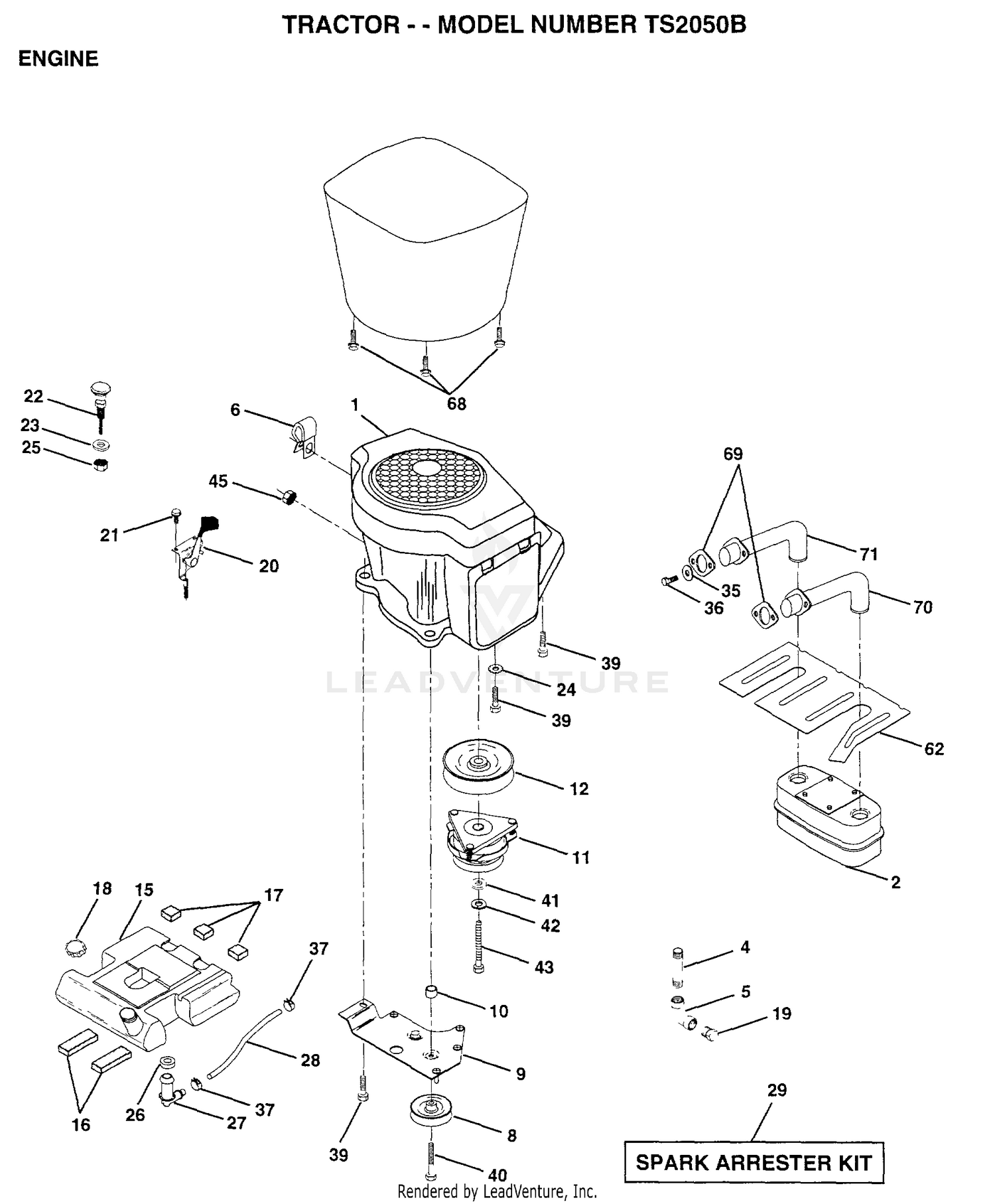

| Ref | Part Number | Description |
|---|
| 1 |
105-4282 |
HOOD Price: $1,435.06 |
| 1 |
P248V |
ENGINE, ONAN Price: Call Us |
| 2 |
152851 |
MUFFLER ASM-ONAN Price: Call Us |
| 2 |
98-5398 |
LATCH Price: $32.53 |
| 4 |
105-0059-03 |
HOOD-SCREEN, REAR Price: $207.62 |
| 4 |
13090328 |
SUB= 13280328 Price: Call Us |
| 5 |
13200300 |
ELBOW Price: Call Us |
| 5 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 6 |
138129 |
CLAMP.TUBE.DBL.EN Price: Call Us |
| 6 |
2412-127 |
CLAMP-R Price: $38.40 |
| 7 |
66-6140 |
DECAL Price: $25.48 |
| 8 |
106-4394 |
DECAL Price: $47.91 |
| 8 |
121361X |
SUB= 139123 Price: Call Us |
| 9 |
145109 |
SUB= 150828 Price: Call Us |
| 9 |
32128-32 |
NUT-HHF Price: $2.69 |
| 10 |
105432X |
BUSHING. Price: Call Us |
| 10 |
77-5141 |
DECAL-HOOD, LH Price: $31.23 |
| 11 |
137140 |
SUB= 142600 Price: Call Us |
| 11 |
77-5151 |
DECAL-HOOD, RH Price: $23.29 |
| 12 |
136907 |
PULLEY.ENGINE.VGT Price: Call Us |
| 12 |
65-5100 |
HANDLE-DOOR Price: $9.05 |
| 13 |
67-8820-01 |
RH HINGE ASM Price: $26.10 |
| 14 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 15 |
151346 |
TANK FUEL REAR Price: Call Us |
| 15 |
67-8840 |
HINGE-ROD Price: $37.43 |
| 16 |
109227X |
PAD IDLER TI Price: Call Us |
| 16 |
67-8810-01 |
LH HINGE ASM Price: $26.95 |
| 17 |
106082X |
PAD-SPACER LT Price: Call Us |
| 17 |
32111-8 |
NUT-ACORN Price: $3.69 |
| 18 |
140527 |
CAP ASM FUEL Price: Call Us |
| 18 |
321-4 |
SCREW-HH Price: $0.99 |
| 19 |
13290300 |
PLUG T Price: Call Us |
| 19 |
77-3170 |
CABLE-HOOD Price: $16.80 |
| 20 |
132747 |
SUB= 532132748 Price: Call Us |
| 20 |
77-5250 |
SPACER-CABLE, HOOD Price: $10.55 |
| 21 |
17720410 |
SCREW LT Price: Call Us |
| 22 |
132782 |
SUB= 132781 Price: Call Us |
| 22 |
59-9740 |
FLEX DRAW LATCH ASM Price: $36.89 |
| 23 |
19131316 |
WASHER Price: Call Us |
| 23 |
3290-55 |
RIVET-POP Price: $0.25 |
| 24 |
11050600 |
LOCKWASHER Price: Call Us |
| 24 |
63-9010 |
HOSE-COOLANT, TRANSMISSION Price: $83.18 |
| 25 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 26 |
105-0012-03 |
CLIP-MOUNTING, FAN SHROUD Price: $12.02 |
| 26 |
3645J |
BUSHING OUTLET T Price: Call Us |
| 27 |
139277 |
STEM.TANK.FUEL Price: Call Us |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
43-3320 |
FOAM-RADIATOR Price: $24.27 |
| 28 |
7834R |
SUB= 8542R Price: Call Us |
| 29 |
132920 |
SPARK ARREST KIT Price: Call Us |
| 29 |
32128-21 |
NUT-HF Price: $0.39 |
| 30 |
63-8960 |
HOSE Price: $111.27 |
| 31 |
105-2542-01 |
BRACKET-SUPPORT, SEAT Price: $93.70 |
| 32 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 33 |
105-2544-01 |
PLATE-SEALING Price: $31.84 |
| 34 |
240-5 |
GROMMET Price: $13.66 |
| 35 |
10040500 |
LOCKWASHER Price: Call Us |
| 35 |
67-9030-03 |
GRILLE ASM Price: $254.81 |
| 36 |
32103-2 |
NUT-WING Price: $0.68 |
| 36 |
74570512 |
SCREW Price: Call Us |
| 37 |
123487X |
HOSE CLAMP Price: Call Us |
| 37 |
67-8570 |
STRIP-SEALING Price: $31.78 |
| 38 |
67-8470-03 |
STRIP-RETAINER Price: $10.86 |
| 39 |
105-4264-03 |
GRILL-PLATE, SEALING Price: $39.30 |
| 39 |
17490624 |
SCREW LT Price: Call Us |
| 40 |
105-4293 |
RADIATOR SUPPORT ASM Price: $383.48 |
| 40 |
17490652 |
SCREW.3/8-16X3.25 Price: Call Us |
| 41 |
126197X |
WASHER Price: Call Us |
| 42 |
10040700 |
LOCKWASHER Price: Call Us |
| 42 |
237-141 |
GROMMET-RUBBER Price: $2.39 |
| 43 |
108-8699 |
RADIATOR ASM Price: $1,258.90 |
| 43 |
150280 |
BOLT.7/16-20X4.25 Price: Call Us |
| 44 |
66-3240 |
CAP-RADIATOR Price: $25.30 |
| 45 |
117-3276 |
DECAL-DANGER This part replaces 106-5976. Price: $10.70 |
| 45 |
M73030800 |
NUT FLANGE M8-125 Price: Call Us |
| 46 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 47 |
82-8950 |
FOAM Price: $13.01 |
| 48 |
66-8111 |
TRIM-HOOD Price: $5.23 |
| 49 |
77-5170 |
FOAM-TOP Price: $52.29 |
| 50 |
77-5160 |
FOAM-SIDE, LH Price: $117.62 |
| 51 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 52 |
104-3433 |
HOSE-RADIATOR, TOP Price: $146.62 |
| 53 |
104-3432 |
HOSE-RADIATOR, BOTTOM Price: $126.04 |
| 54 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 55 |
38-3400 |
GUARD-RUBBER Price: $8.02 |
| 56 |
110-4109 |
HOSE-FUEL Price: $11.24 |
| 57 |
105-4265 |
TUBE-VENT Price: $25.94 |
| 58 |
3-6657 |
CLIP-SKID Price: $22.64 |
| 60 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 61 |
3269-10 |
WASHER-BACK Price: $0.61 |
| 62 |
105-0007-03 |
FAN SHROUD ASM Price: $202.26 |
| 63 |
32128-33 |
NUT-HF Price: $0.25 |
| 64 |
17490612 |
SCREW Price: Call Us |
| 64 |
340-70 |
NUT-LOCK Price: $2.10 |
| 65 |
19131614 |
WASHER Price: Call Us |
| 65 |
323-14 |
SCREW-HH Price: $1.34 |
| 66 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 67 |
2412-4 |
CLAMP-R Price: $4.22 |
| 68 |
32144-102 |
SCREW-HWH This part replaces 11-0590. Price: $3.19 |
| 69 |
148428 |
GASKET-MUFFLER ) Price: Call Us |
| 69 |
5-0838 |
WASHER Price: $1.09 |
| 70 |
283-76 |
PIN-LYNCH Price: $6.67 |
| 71 |
68-9160 |
BRACKET Price: $16.82 |
| 72 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 73 |
86-7040 |
ROD-PROP, SEAT Price: $29.51 |
| 74 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 75 |
105-4255-01 |
PULLEY GUARD ASM Price: $83.08 |
| 76 |
323-4 |
SCREW-HH This part replaces 322-41. Price: $1.02 |
| 77 |
3256-57 |
WASHER-FLAT Price: $0.41 |
| 78 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 79 |
2412-83 |
CLAMP-CABLE Price: $9.85 |
