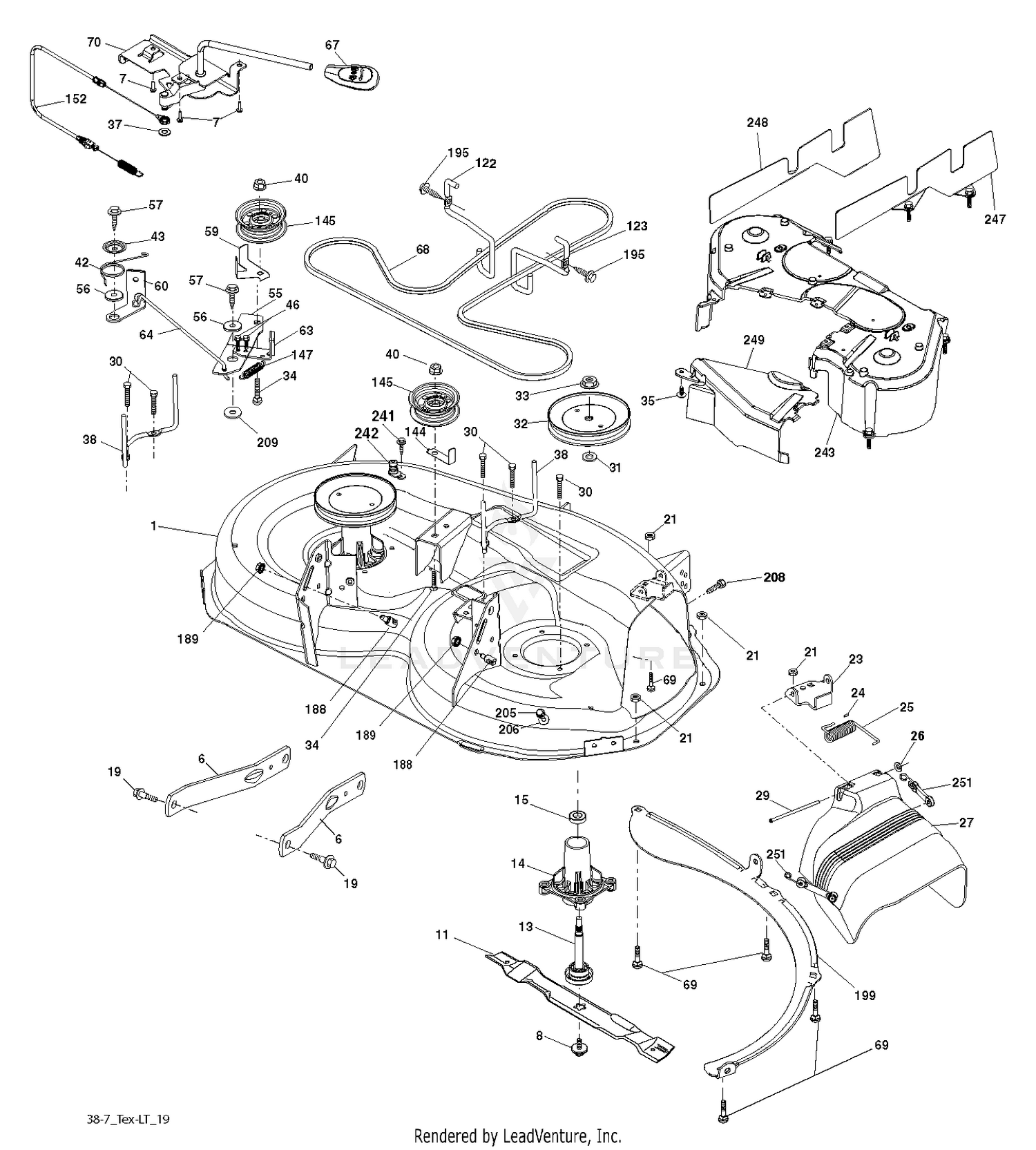

| Ref | Part Number | Description |
|---|
| 1 |
532194251 |
Price: $130.99 |
| 2 |
32152-10 |
LOCKNUT Price: $0.81 |
| 3 |
70-2780 |
PISTON Price: $133.22 |
| 4 |
70-2770 |
DISCONTINUED Price: Call Us |
| 5 |
43-5220 |
RING-RETAINING Price: $65.14 |
| 6 |
43-5230 |
DISCONTINUED Price: Call Us |
| 6 |
532195186 |
ARM.SUSPENSION.MOWER.R Price: $8.99 |
| 7 |
532416358 |
SCREW.#10 X 0.750.BOS THREAD Price: $2.99 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 11 |
532193957 |
BLADE 38" PREMIUM Price: $14.99 |
| 13 |
532192870 |
MANDREL ASM This part replaces 532192872. Price: $30.99 |
| 14 |
532187281 |
HOUSING MANDREL Price: $20.99 |
| 15 |
532110485 |
BEARING Price: $7.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 21 |
873800500 |
Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 26 |
532110452 |
NUT PUSH M Price: $1.99 |
| 29 |
532131491 |
ROD.HINGE Price: $1.99 |
| 30 |
532173984 |
SCREW, WASHER HEAD Price: $2.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 32 |
532199789 |
PULLEY.MANDREL.5.0.PD.38" Price: $14.99 |
| 33 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
532133835 |
FASTENER.XMAS.TREE Price: $3.99 |
| 37 |
819131316 |
WASHER Price: $2.99 |
| 38 |
532400140 |
BELT KEEPER MANDREL *SUBS/2* This part replaces 532199541. Price: $24.99 |
| 40 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $2.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $2.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.49 |
| 55 |
532197249 |
IDLER.ARM Price: $3.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 59 |
532141043 |
GUARD, BELT Price: $3.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" Price: $11.99 |
| 63 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 64 |
532199918 |
LINK BRAKE This part replaces 532199790. Price: $12.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $7.99 |
| 68 |
532408381 |
V-BELT Price: $38.99 |
| 69 |
872140505 |
BOLT Price: $2.69 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $52.99 |
| 122 |
532197258 |
KEEPER BELT ENGINE LH Price: $9.99 |
| 123 |
532197259 |
KEEPER BELT RH Price: $9.99 |
| 144 |
532193414 |
KEEPER BELT Price: $3.99 |
| 145 |
532177968 |
Pulley, Idler, Flat This part replaces 532193197. Price: $14.99 |
| 147 |
532401872 |
SPRING RETURN Price: $2.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $19.99 |
| 188 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 189 |
873900500 |
NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $2.99 |
| 199 |
532400095 |
BAFFLE VORTEX Price: $12.99 |
| 205 |
817640416 |
SCREW NLA This part replaces 817490416. Price: Call Us |
| 206 |
819091416 |
WASHER Price: $3.99 |
| 208 |
817670608 |
SCREW 3/8-16X1/2 Price: $2.99 |
| 209 |
532413524 |
WASHER.13/32 X 1 X 1/2.11GUARD This part replaces 819133210. Price: $2.99 |
| 241 |
532152927 |
SCREW Price: $3.99 |
| 242 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 243 |
532406510 |
Price: $15.99 |
| 247 |
532432361 |
Price: $10.99 |
| 248 |
532432360 |
Price: $10.99 |
| 249 |
532406514 |
Price: $6.99 |
| 251 |
532436087 |
Price: $4.99 |
