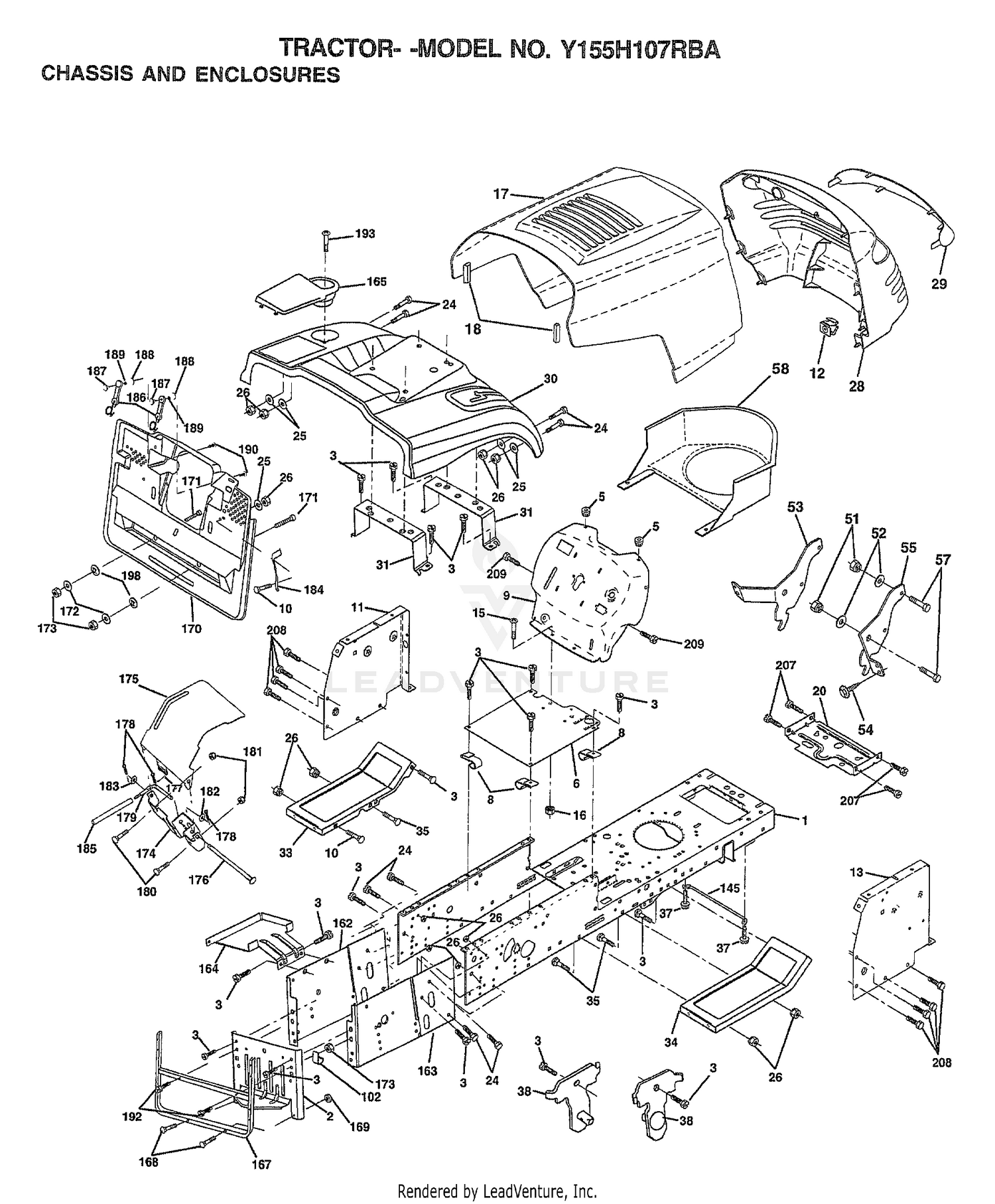

| Ref | Part Number | Description |
|---|
| 1 |
169831 |
CHASSIS Price: Call Us |
| 1 |
340-126 |
NUT-BULKHEAD Price: $4.61 |
| 2 |
165606 |
DRAWBAR.CRD Price: Call Us |
| 2 |
340-70 |
NUT-LOCK Price: $2.10 |
| 3 |
17060612 |
SCREW Price: Call Us |
| 3 |
69-8940 |
WASHER Price: $1.76 |
| 4 |
240-4 |
GROMMET-RUBBER Price: $9.91 |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 5 |
69-8970 |
SPACER Price: $9.57 |
| 6 |
155923 |
SADDLE Price: Call Us |
| 6 |
340-127 |
NUT-BULKHEAD Price: $2.24 |
| 7 |
69-8930 |
WASHER Price: $0.81 |
| 8 |
106-0077 |
TUBE-HYD, TRACTION (RH) Price: $127.91 |
| 9 |
106-0076 |
TUBE-HYD, TRACTION (LH) Price: $139.55 |
| 9 |
168347X011 |
DASH Price: Call Us |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 12 |
85-6150 |
TUBE-HYD Price: $105.19 |
| 13 |
108-1534 |
LH TRACTION TUBE ASM Price: $207.12 |
| 13 |
172107X010 |
DASHBOARD Price: Call Us |
| 14 |
108-1533 |
RH TRACTION TUBE ASM Price: $154.07 |
| 15 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
106-0199-03 |
BRACKET-SUPPORT, UPPER Price: $21.16 |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
105-0682 |
BLOCK-HYD Price: $469.65 |
| 17 |
159639X505 |
HOOD.STEEL.ASSY Price: Call Us |
| 18 |
106-0185-03 |
BRACKET-SUPPORT, LOWER Price: $28.00 |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 19 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 20 |
106-0195 |
HYD HOSE ASM Price: $216.29 |
| 21 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 22 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 23 |
106-0196 |
HYD HOSE ASM Price: $343.66 |
| 24 |
340-152 |
CAP-HYD Price: $13.80 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 25 |
340-4 |
FITTING-STRAIGHT Price: $11.58 |
| 26 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273X599 |
LENS.GRILLE.PRIVATE LABEL Price: Call Us |
| 30 |
165713X505 |
FENDER.AUTO Price: Call Us |
| 31 |
165156 |
BRKT.SUPT.FENDER.CRD Price: Call Us |
| 31 |
69-6040 |
TUBE-HYD Price: $150.53 |
| 32 |
69-6030 |
TUBE-HYD Price: $144.98 |
| 33 |
145244X505 |
FOOTREST.LH.LT/GT Price: Call Us |
| 33 |
69-5790 |
TUBE-HYD Price: $156.00 |
| 34 |
145243X505 |
FOOTREST.RH.LT/GT Price: Call Us |
| 34 |
93-7426 |
TUBE-HYD Price: $86.55 |
| 35 |
72110606 |
BOLT Price: Call Us |
| 36 |
69-6050 |
TUBE-HYD Price: $125.05 |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 37 |
69-6060 |
TUBE-HYD Price: $131.82 |
| 38 |
169834 |
BRKT ASM PIVOT MOWER REAR Price: Call Us |
| 38 |
240-5 |
GROMMET Price: $13.66 |
| 39 |
69-8960 |
SPACER Price: $5.29 |
| 40 |
69-5810 |
TUBE-HYD Price: $152.00 |
| 41 |
240-7 |
GROMMET-RUBBER Price: $16.51 |
| 42 |
92-4970 |
HOSE ASM Price: $64.22 |
| 43 |
69-6100 |
TUBE-HYD Price: $257.08 |
| 44 |
340-71 |
FITTING-STRAIGHT, BULKHEAD Price: $20.74 |
| 45 |
69-8910 |
WASHER Price: $1.70 |
| 46 |
69-8900 |
SPACER Price: $14.26 |
| 48 |
88-5470 |
SPACER Price: $12.99 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 102 |
2751R |
CLIP T Price: Call Us |
| 162 |
165672 |
BRKT.EXT.CHASSIS.LH.CRD Price: Call Us |
| 163 |
165673 |
BRKT.EXT.CHASSIS.RH.CRD Price: Call Us |
| 164 |
165605 |
SUPPORT.BATTERY.CRD Price: Call Us |
| 165 |
165742X428 |
COVER.BATTERY.CRD.BLACK.LT Price: Call Us |
| 167 |
165779 |
SUPT.ASM.BACKPLATE Price: Call Us |
| 168 |
72050412 |
BOLT-RD HD SQ NK Price: Call Us |
| 169 |
123976X |
SUB= 73900400 Price: Call Us |
| 170 |
165607 |
COVER.BACKPLATE.BLACK Price: Call Us |
| 171 |
74520640 |
BOLT.HEX.3/8-16X2-1/2 Price: Call Us |
| 172 |
19132016 |
SUB= 19132012 Price: Call Us |
| 173 |
73510600 |
NUT Price: Call Us |
| 174 |
165939 |
BRKT.SWITCH.FBI.CRD Price: Call Us |
| 175 |
166212 |
GRUARD.DOOR.REAR.CRD Price: Call Us |
| 176 |
128600 |
HINGE PIN Price: Call Us |
| 177 |
132796 |
SPRING.COVER.LH Price: Call Us |
| 178 |
76020312 |
SUB= 3145 Price: Call Us |
| 179 |
165942 |
ROD.PIVOT.FBI.CRD Price: Call Us |
| 180 |
74760516 |
SUB= 77394 Price: Call Us |
| 181 |
73680500 |
SUB= 73690500 Price: Call Us |
| 182 |
138200 |
WASHER.385X.625 Price: Call Us |
| 183 |
19131316 |
WASHER Price: Call Us |
| 184 |
166139 |
BRKT.ACTUATOR.BAG.CRD Price: Call Us |
| 185 |
165940 |
TUBE.LEVER.SWCH.FBI.CRD Price: Call Us |
| 186 |
160793 |
LATCH ASSY.BAGGER Price: Call Us |
| 187 |
2029J |
WELDNUT Price: Call Us |
| 188 |
19061216 |
WASHER #10 Price: Call Us |
| 189 |
10071000 |
LOCKWASHER Price: Call Us |
| 190 |
71161010 |
SCREW Price: Call Us |
| 192 |
17490624 |
SCREW LT Price: Call Us |
| 193 |
17070412 |
SCREW Price: Call Us |
| 198 |
168937 |
NUT PUSH Price: Call Us |
| 207 |
17670508 |
SCREW Price: Call Us |
| 208 |
17670608 |
SCREW Price: Call Us |
| 209 |
17000612 |
SCREW Price: Call Us |
| 212 |
156229 |
INSERT LENS REFLECT Price: Call Us |
