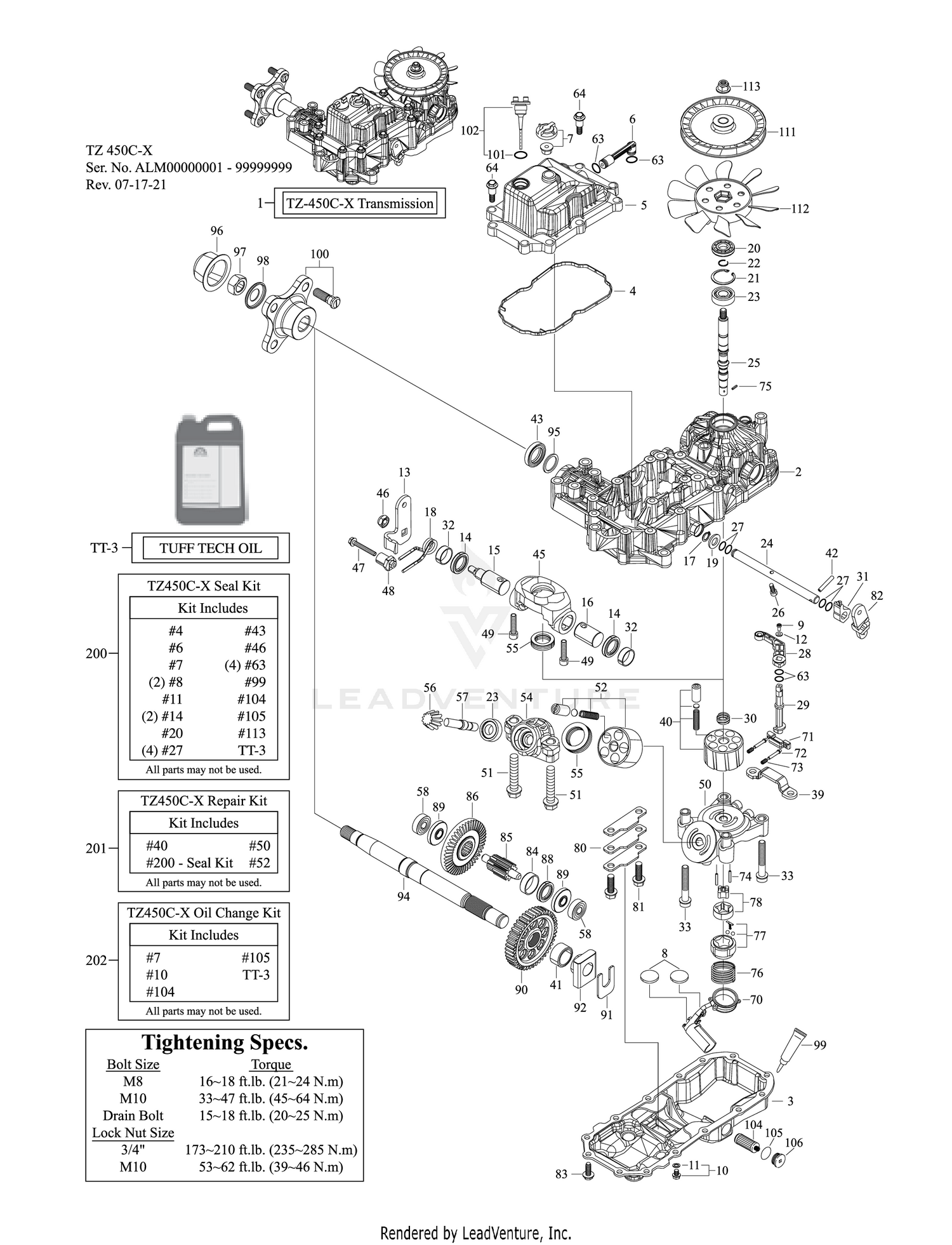

TUFF TORQ TRANSAXLE - LH (TZ-450C-X 48", 52", 61 ")
Parts (118)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5-9700-01 | HANDLE WA This part replaces 5-9700. Price: $298.49 |
| 2 | 3-0516 | DISCONTINUED Price: Call Us |
| 2 | TT187Q1624150 | Upper Housing X Price: Call Us |
| 3 | 32121-4 | PIN-ROLL, SLOTTED Price: $3.49 |
| 3 | TT187Q2124360 | Lower Housing Fy Price: Call Us |
| 4 | 3-3422 | ROD-CONTROL Price: $65.54 |
| 4 | TT187Q1624450 | Square Seal Price: Call Us |
| 5 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 5 | TT187Q2124550 | Top Cover A Price: Call Us |
| 6 | 3272-1 | PIN-COTTER Price: $0.25 |
| 6 | TT187Q1624440 | Bypass Piping Price: Call Us |
| 7 | TT168T2024250 | Vent Valve Price: Call Us |
| 8 | 3296-27 | NUT-LOCK, NI Price: $0.27 |
| 8 | TT19216324360 | Magnet 28 * 3.5 Price: Call Us |
| 9 | 3-0525-01 | BELL CRANK CLUTCH WA This part replaces 3-0525. Price: $47.73 |
| 9 | TT22857400080 | Screw 4.0*8 Price: Call Us |
| 10 | 3250-4 | SCREW Price: $1.78 |
| 10 | TT1A632099320 | Drain Bolt Kit Price: Call Us |
| 11 | 3-0526 | RETAINER Price: $25.44 |
| 11 | TT22190-100000 | Washer Seal 10 Price: Call Us |
| 12 | 3296-1 | NUT-LOCK Price: $0.25 |
| 12 | TT187Q1629410 | Washer 4.5*10*1 Price: Call Us |
| 13 | 323-30 | SCREW-HH Price: $22.99 |
| 13 | TT187Q1629710 | Control Lever L Price: Call Us |
| 14 | 3-1776 | BUSHING Price: $15.88 |
| 14 | TT187Q1629100 | Seal, Tc253506 Price: Call Us |
| 15 | 3256-14 | WASHER-FLAT Price: $0.39 |
| 15 | TT187Q1629800 | Control Shaft Price: Call Us |
| 16 | 603773 | LOCKNUT This part replaces 32146-2. Price: $2.09 |
| 16 | TT187Q1629810 | Control Shaft Short Price: Call Us |
| 17 | 23-7410 | DISCONTINUED This part replaces 3-5622. Price: Call Us |
| 17 | TT19215489090 | Snap Ring Price: Call Us |
| 18 | 88-8820 | ROD-CLUTCH This part replaces 3-0520. Price: $38.97 |
| 18 | TT187Q1629860 | Torsion Spring Price: Call Us |
| 19 | 3-0530 | DISCONTINUED Price: Call Us |
| 19 | TT22137120000 | Washer 12 Price: Call Us |
| 20 | 3-3418 | THROTTLE CONTROL ROD *R Price: $87.56 |
| 20 | TT187T0134390 | Oil Seal 15*35*07 Price: Call Us |
| 21 | 5-1978 | HANDLE ADJ BAR Price: $56.31 |
| 21 | TT22252000350 | Snap Ring C 35 Price: Call Us |
| 22 | 3-0616 | DISCONTINUED Price: Call Us |
| 22 | TT17808002080 | Ring 1.2 Price: Call Us |
| 23 | 3-3417 | THROTTLE CONTROL Price: $126.58 |
| 23 | TT1A646034770 | Bearing Price: Call Us |
| 24 | TT187Q1636200 | Brake Shaft Price: Call Us |
| 25 | 3254-9 | WASHER-LOCK, INTERNAL Price: $0.25 |
| 25 | TT187Q2125100 | Pump Shaft C Price: Call Us |
| 26 | 32121-7 | PIN-ROLL, SLOTTED Price: $0.31 |
| 26 | TT26450060162 | Socket Bolt 6*16 Price: Call Us |
| 27 | 3-3421 | COLLAR Price: $2.00 |
| 27 | TT24311000120 | O-Ring 1a P12 Price: Call Us |
| 28 | 3245-2 | SCREW-SET, HSH Price: $2.58 |
| 29 | 32120-74 | RING-SNAP Price: $0.54 |
| 29 | TT187Q1629310 | Bypass Shaft Price: Call Us |
| 30 | 3-3423 | WASHER Price: $5.67 |
| 30 | TT19215425200 | Pump Spring Price: Call Us |
| 31 | 3249-3 | SCREW-PRH Price: $0.34 |
| 31 | TT187Q1636370 | Brake Fork 20 Cr Price: Call Us |
| 32 | 49-8110 | HANDLE GRIP This part replaces 3-8271. Price: $13.80 |
| 32 | TT187Q1629450 | Control Bush Lfb2510 Price: Call Us |
| 33 | 3251-4 | SCREW-SRH Price: $0.25 |
| 33 | TT1A632010650 | M10 * 65 Bolt Price: Call Us |
| 34 | 3253-17 | WASHER-LOCK Price: $0.25 |
| 35 | 3-0508 | HANDLE COVER PLT WA Price: $128.40 |
| 36 | 3-1541 | Decal Price: Call Us |
| 37 | 56-9810 | DISCONTINUED This part replaces 3-0635. Price: Call Us |
| 38 | 5-1482 | Bracket Pivot Price: Call Us |
| 39 | 5-1481 | DISCONTINUED Price: Call Us |
| 39 | TT187Q2124740 | Check Stopper Pfg Price: Call Us |
| 40 | 5-1480 | DISCONTINUED Price: Call Us |
| 40 | TT187Q1625150 | Cylinder Block Kit / Order Repair Kit Price: Call Us |
| 41 | 5-0776 | SPRING Price: $7.98 |
| 41 | TT19215434240 | Bushing 25.4 Price: Call Us |
| 42 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 42 | TT22351050032 | Spring Pin 5 * 32 Price: Call Us |
| 43 | 32120-35 | RING-RETAINING, EXT Price: $0.25 |
| 43 | TT187Q1634050 | Seal Tc284008 Price: Call Us |
| 44 | 3-0517 | CLUTCH HANDLE BRKT *R Price: $18.24 |
| 45 | 237-73 | DISCONTINUED Price: Call Us |
| 45 | TT187Q1684530 | Swashplate Price: Call Us |
| 46 | TT187Q0610070 | Lock Nut 10 Price: Call Us |
| 47 | TT26106060452 | Bolt 6*45 Price: Call Us |
| 48 | TT187T0029940 | Fulcrum Price: Call Us |
| 49 | TT26450080352 | Bolt 8 * 35 Price: Call Us |
| 50 | TT187Q2124450 | Centercase Cp / Order Repair Kit Price: Call Us |
| 51 | TT26106120652 | Bolt 12*65 Price: Call Us |
| 52 | TT168T2025080 | Cylinder Block Kit(Motor / Order Repair Kit Price: Call Us |
| 54 | TT187Q1624500 | Motor Housing Price: Call Us |
| 55 | TT187T0034750 | Thrust Bearing Price: Call Us |
| 56 | TT187Q1625430 | Motor Gear S Price: Call Us |
| 57 | TT187Q1625300 | Motor Shaft Price: Call Us |
| 58 | TT187Q1633520 | Bearing 6201 Cn Price: Call Us |
| 64 | TT26476080302 | Tapping Bolt 8*30 Price: Call Us |
| 70 | TT187Q2124800 | Bracket Assy Fts Price: Call Us |
| 71 | TT187Q1629350 | Bypass Guide Price: Call Us |
| 72 | TT187Q1629370 | Bypass Pin Price: Call Us |
| 73 | TT187Q1629390 | Bypass Spring Price: Call Us |
| 74 | TT22351030018 | Pin 3.0 * 18 Price: Call Us |
| 75 | TT1A646088410 | Pin 2.5* 9.8 Price: Call Us |
| 76 | TT1A646088450 | Charge Spring Price: Call Us |
| 77 | TT187Q0826100 | Pump Case Price: Call Us |
| 78 | TT1A646031100 | Rotor Set Price: Call Us |
| 80 | TT187Q1624300 | Final Plate Price: Call Us |
| 81 | TT26106100302 | Bolt 10 * 30 Price: Call Us |
| 82 | TT187Q2136150 | Brake Arm Price: Call Us |
| 83 | TT26476080202 | Tapping Screw 8 * 20 Price: Call Us |
| 84 | TT187Q1633380 | Final Pinion Collar Price: Call Us |
| 85 | TT187Q2133400 | Final Pinion Shaft Price: Call Us |
| 86 | TT187Q1633150 | Reduction Gear S Price: Call Us |
| 88 | TT187Q2133420 | Reduction Collar Price: Call Us |
| 89 | TT187Q2133420 | Reduction Collar Price: Call Us |
| 90 | TT187Q1633710 | Final Gear Sv Price: Call Us |
| 91 | TT187Q1634060 | Clip Price: Call Us |
| 92 | TT19215434240 | Bushing 25.4 Price: Call Us |
| 94 | TT187Q1634150 | Axle Shaft T Price: Call Us |
| 95 | TT187Q0834370 | Washer Price: Call Us |
| 99 | TT1A646099500 | Sealant Price: Call Us |
| 101 | TT24311000160 | O-Ring 1a P16 Price: Call Us |
