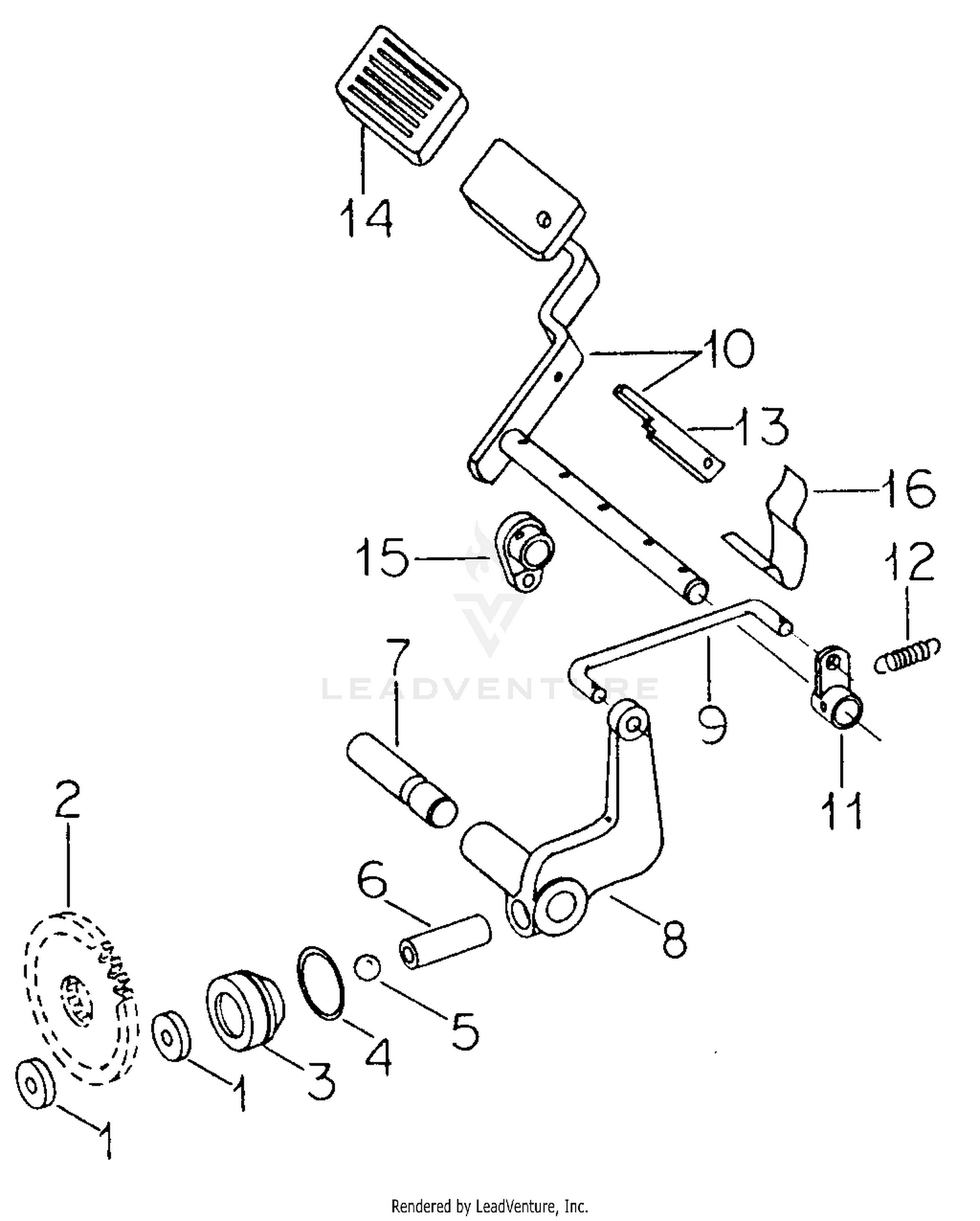

| Ref | Part Number | Description |
|---|
| 1 |
IH-384719-R2 |
PAD-BRAKE LINING This part replaces IH-384719-R1. Price: $22.47 |
| 2 |
717-3141 |
GEAR-REDUCTION Not Available Price: |
| 4 |
IH-378031-R1 |
RING Not Available Price: |
| 5 |
IH-17018-R1 |
BALL 9/16 Not Available Price: |
| 6 |
IH-394031-R1 |
PIN Not Available Price: |
| 7 |
IH-394032-R1 |
PIN Not Available Price: |
| 8 |
IH-394033-R1 |
LEVER Not Available Price: |
| 9 |
747-3015 |
BRAKE ROD Not Available Price: |
| 10 |
759-3110 |
PEDAL ASSEMBLY-CLUTCH Not Available Price: |
| 11 |
759-3114 |
ARM ASSEMBLY-BRAKE Not Available Price: |
| 13 |
703-0006 |
PLATE-BRAKE LOCK Not Available Price: |
| 14 |
924-3000 |
BRAKE & CLUTCH PEDAL PAD This part replaces 724-3000. Price: $17.21 |
| 15 |
719-3001 |
BRAKE ROD LEVER Not Available Price: |
| 16 |
932-3000 |
SWITCH SPRING Not Available This part replaces 732-3000. Price: |
