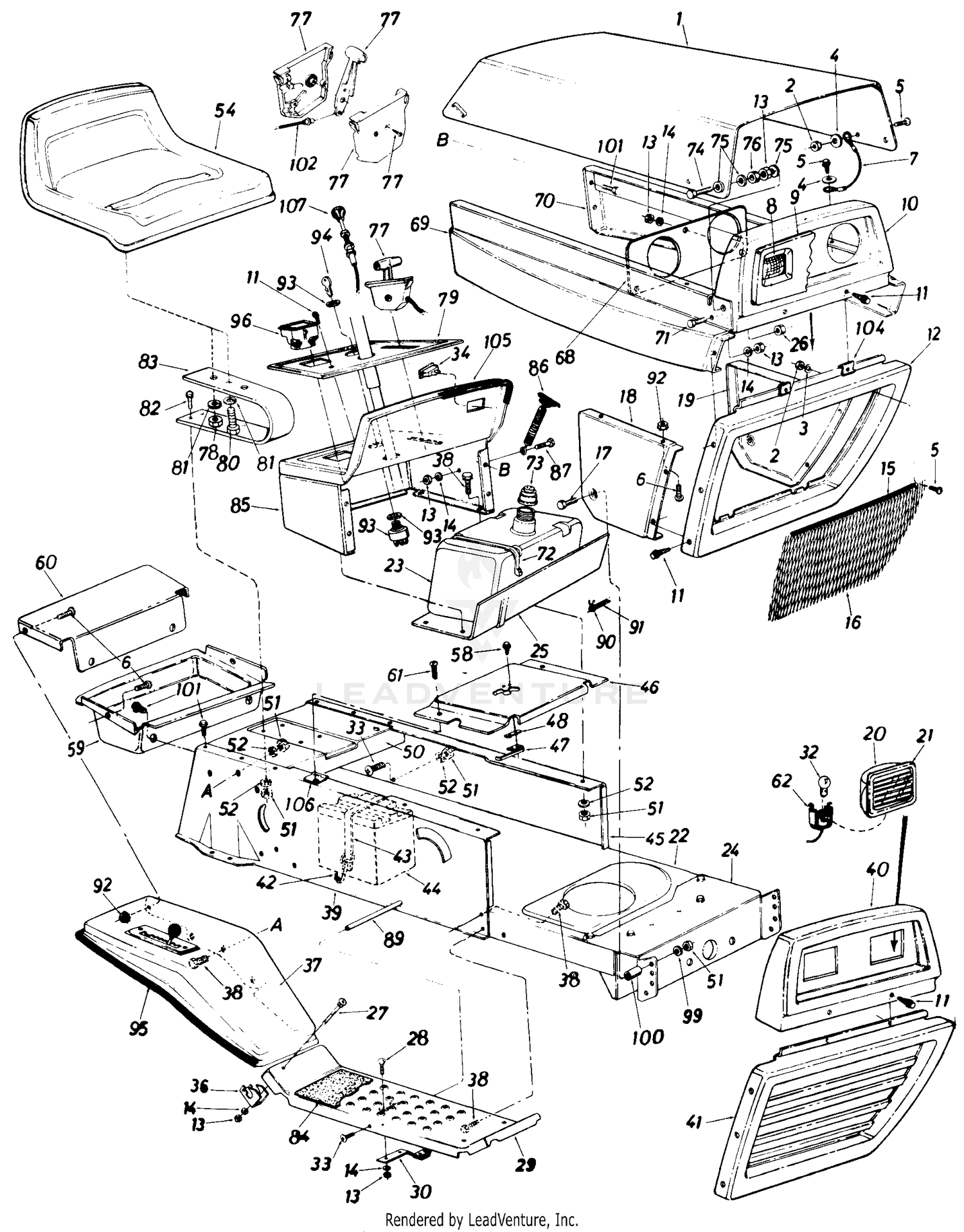

| Ref | Part Number | Description |
|---|
| 1 |
12780 |
HOOD-FRONT Not Available Price: |
| 2 |
712-0102A |
Nut, Hex Lock, #10-24 This part replaces 712-0102. Price: $3.59 |
| 3 |
736-0722 |
L-Wash. #10 I.D. Price: $5.81 |
| 4 |
736-0463 |
Fl-Wash. .25" I.D. x .62" Price: $3.91 |
| 5 |
710-0192 |
Truss Scr. #10-24 x .375"* Price: $3.08 |
| 6 |
710-0473 |
Truss Hd. Scr. #10-24 x .50"* Price: $3.90 |
| 7 |
727-0199 |
HOOD STOP Not Available Price: |
| 11 |
910-0224 |
HEX SCREW AB-TAP #10-16 x 0.500 This part replaces 710-0224. Price: $3.19 |
| 13 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 14 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 17 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0442. Price: $3.75 |
| 19 |
15545 |
L.H. LOWER SIDE PANE Not Available Price: |
| 22 |
15930 |
LOWER FRAME Not Available Price: |
| 23 |
753-0503 |
KIT-FUEL TANK W/CA Not Available This part replaces 751-0172. Price: |
| 24 |
14619 |
Front Pivot Brkt. Price: Call Us |
| 25 |
14605 |
SUPPORT-GA Not Available Price: |
| 26 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. Price: $4.02 |
| 27 |
710-0495 |
CARR. BOLT 1/4-20 x 1.75" LG. Not Available Price: |
| 28 |
710-0134 |
Carriage Bolt 1/4-20 x .62"* Price: $3.71 |
| 33 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg.* Price: $4.02 |
| 36 |
14671 |
CLAMP-FEND Not Available Price: |
| 38 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 39 |
14602G-0637 |
FRAME-SIDE (RH) Not Available This part replaces 14602. Price: |
| 42 |
747-0475 |
HOOK-BATTERY STRAP Not Available Price: |
| 43 |
731-0718 |
STRAP-RUBBER Not Available Price: |
| 44 |
753-0607 |
BATTERY Not Available This part replaces 725-0514. Price: |
| 45 |
14603 |
L.H. SIDE FRAME Not Available Price: |
| 46 |
16432 |
Shift Cover Price: Call Us |
| 47 |
725-0759 |
SAFETY SWITCH KIT Not Available Price: |
| 48 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0222. Price: $6.01 |
| 50 |
14607 |
Hitch Plate Price: Call Us |
| 51 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 52 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 58 |
710-0227 |
Hex AB-Tap Scr. #8 x .50" Price: $3.90 |
| 61 |
710-0351 |
Truss Mach. Tap Scr. #10 x .50" Lg. Price: $3.90 |
| 69 |
12784 |
SIDE PANEL-R.H. Not Available Price: |
| 70 |
12785 |
Side Panel-L.H. Price: Call Us |
| 71 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg.* Price: $3.63 |
| 72 |
726-0230 |
Cable Tie This part replaces 726-0209. Price: $23.95 |
| 73 |
723-0333 |
GAUGE-GAS Not Available Price: |
| 74 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 75 |
936-0101 |
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" Not Available This part replaces 736-0101. Price: |
| 76 |
735-0200 |
RUBBER WASHER Not Available Price: |
| 77 |
831-0823A |
Throttle Control Box Ass'y. This part replaces 831-0823. Price: $30.59 |
| 79 |
731-0804 |
INSERT-DASH PANEL Not Available Price: |
| 81 |
736-0921 |
L-Wash. 1/2" I.D.* Price: $3.90 |
| 82 |
710-0376 |
Hex Bolt 5/16-18 x 1.00"* Price: $3.66 |
| 83 |
732-0458 |
SEAT SPRING Not Available Price: |
| 85 |
15895 |
DASH PANEL ASS'Y. Not Available Price: |
| 86 |
723-0296 |
HOOD LOCK ASSEMBLY Not Available Price: |
| 87 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 89 |
738-0526 |
ROD-RUNNING BOARD Not Available Price: |
| 90 |
726-0207 |
HOSE CLAMP Not Available Price: |
| 91 |
751-22813-24 |
FUEL HOSE 1/4-24" This part replaces 751-0173. Price: $27.48 |
| 92 |
712-0272 |
Hex Sems Nut #10-24 Thd. Price: $3.58 |
| 93 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 94 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 95 |
731-0511 |
Trim Strip-57" Lg. Price: $3.29 |
| 99 |
736-0242 |
Belleville Wash. .34" I.D. Price: $3.75 |
| 101 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 104 |
726-0139 |
Speed Nut #10Z Price: $5.94 |
| 105 |
731-0511 |
Trim Strip-15" Price: $3.29 |
| 106 |
726-0139 |
Speed Nut #10Z Price: $5.94 |
