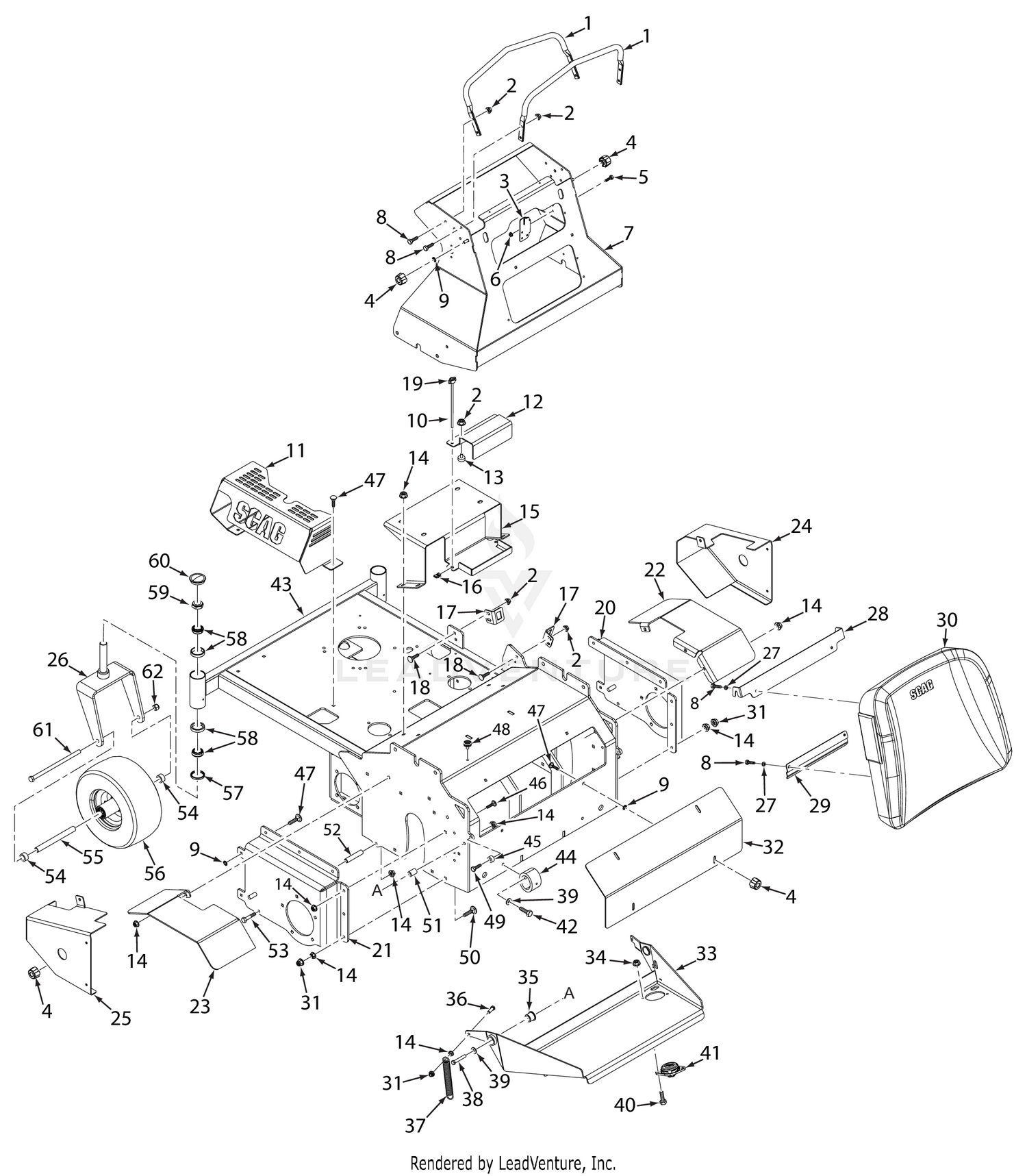

| Ref | Part Number | Description |
|---|
| 1 |
427189 |
Reference Bar Price: Call Us |
| 2 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 3 |
427269 |
Bracket, Neutral Switch Price: Call Us |
| 4 |
481885-06 |
Knob, 5/16-18 Price: Call Us |
| 5 |
04001-01 |
BOLT, HEX HEAD, 1/4-20 X 3/4 GR.5 Price: Call Us |
| 6 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 7 |
453340 |
Handlebar Weldment Price: Call Us |
| 8 |
04001-08 |
BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4" Price: Call Us |
| 9 |
04024-03 |
Nut, Push-On 5/16-18 Price: Call Us |
| 10 |
04001-221 |
Bolt, Hex Head 1/4-20 x 8" Price: Call Us |
| 11 |
429214 |
Heatshield, Muffler Price: Call Us |
| 12 |
429160 |
Cover, Battery Box Price: Call Us |
| 13 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 14 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 15 |
429132 |
Mount, Fuel Tank Price: Call Us |
| 16 |
04110-01 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 17 |
429195 |
Bracket, Height Switch Price: Call Us |
| 18 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 19 |
485698-01 |
Knob, 1/4" Wing Price: Call Us |
| 20 |
428949 |
Bracket RH, Wheel Mount Price: Call Us |
| 21 |
428948 |
Bracket LH, Wheel Mount Price: Call Us |
| 22 |
463518 |
Fender RH Price: Call Us |
| 23 |
463517 |
Fender LH Price: Call Us |
| 24 |
429127 |
Chain Cover, RH Price: Call Us |
| 25 |
429126 |
Chain Cover, LH Price: Call Us |
| 26 |
453110 |
Yoke Weldment Price: Call Us |
| 27 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 28 |
427289 |
Bracket, Knee Pad - Upper Price: Call Us |
| 29 |
427292 |
Bracket, Knee Pad - Lower Price: Call Us |
| 30 |
486756 |
Operator Pad Price: Call Us |
| 31 |
04117-02 |
Nut, Flange Elastic Stop Nut, 3/8-16 Price: Call Us |
| 32 |
428995 |
Guard, Rear Price: Call Us |
| 33 |
453360 |
Footplate Price: Call Us |
| 34 |
04117-01 |
Nut, Flange Head Elastic Stop 5/16-18 Price: Call Us |
| 35 |
486834 |
Bearing, Pivot Price: Call Us |
| 36 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 37 |
48755 |
Spring,Counter Balance Price: Call Us |
| 38 |
04001-46 |
Bolt, Hex Head 3/8-16 x 2-1/4" - 61" Price: Call Us |
| 39 |
04041-07 |
Flatwasher, 3/8" Special (.391 x .938 x .105) Price: Call Us |
| 40 |
04001-09 |
Bolt, Heax Head 5/16-18 x 1" (48V / 52V) Price: Call Us |
| 41 |
487354 |
Switch, Foot Price: Call Us |
| 42 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 43 |
463519 |
Frame Price: Call Us |
| 44 |
486758 |
Isolator, Footplate Price: Call Us |
| 45 |
429752 |
Upstop, Footplate Price: Call Us |
| 46 |
04003-23 |
Carriage Bolt, 3/8-16 x 1.0" Price: Call Us |
| 47 |
04003-12 |
Bolt, 5/16-18 x .75 RHSN Carriage Price: Call Us |
| 48 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 49 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 50 |
04003-21 |
Carriage Bolt, 3/8-16 x 2-1/2" Price: Call Us |
| 51 |
431126 |
Bearing, Hub Price: Call Us |
| 52 |
431183 |
Spacer, Wheel Mount Price: Call Us |
| 53 |
04001-30 |
Bolt, Hex Head 3/8-16 x 4.00 Price: Call Us |
| 54 |
43584 |
Spacer, Caster Wheel Price: Call Us |
| 55 |
43583 |
Sleeve, Caster Wheel (61V, 72A/VS) Price: Call Us |
| 56 |
9278 |
Caster Wheel Assy. This part replaces 483050. Price: Call Us |
| 57 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 58 |
481657 |
Bearing, 1.0 Diameter Price: Call Us |
| 59 |
04021-20 |
Nut, Elastic Stop 1.0"-14 Price: Call Us |
| 60 |
484195 |
Cap, Grease Price: Call Us |
| 61 |
04001-167 |
Bolt, Hex Head 1/2-13 x 9-1/2" (61V & 72A/VS) Price: Call Us |
