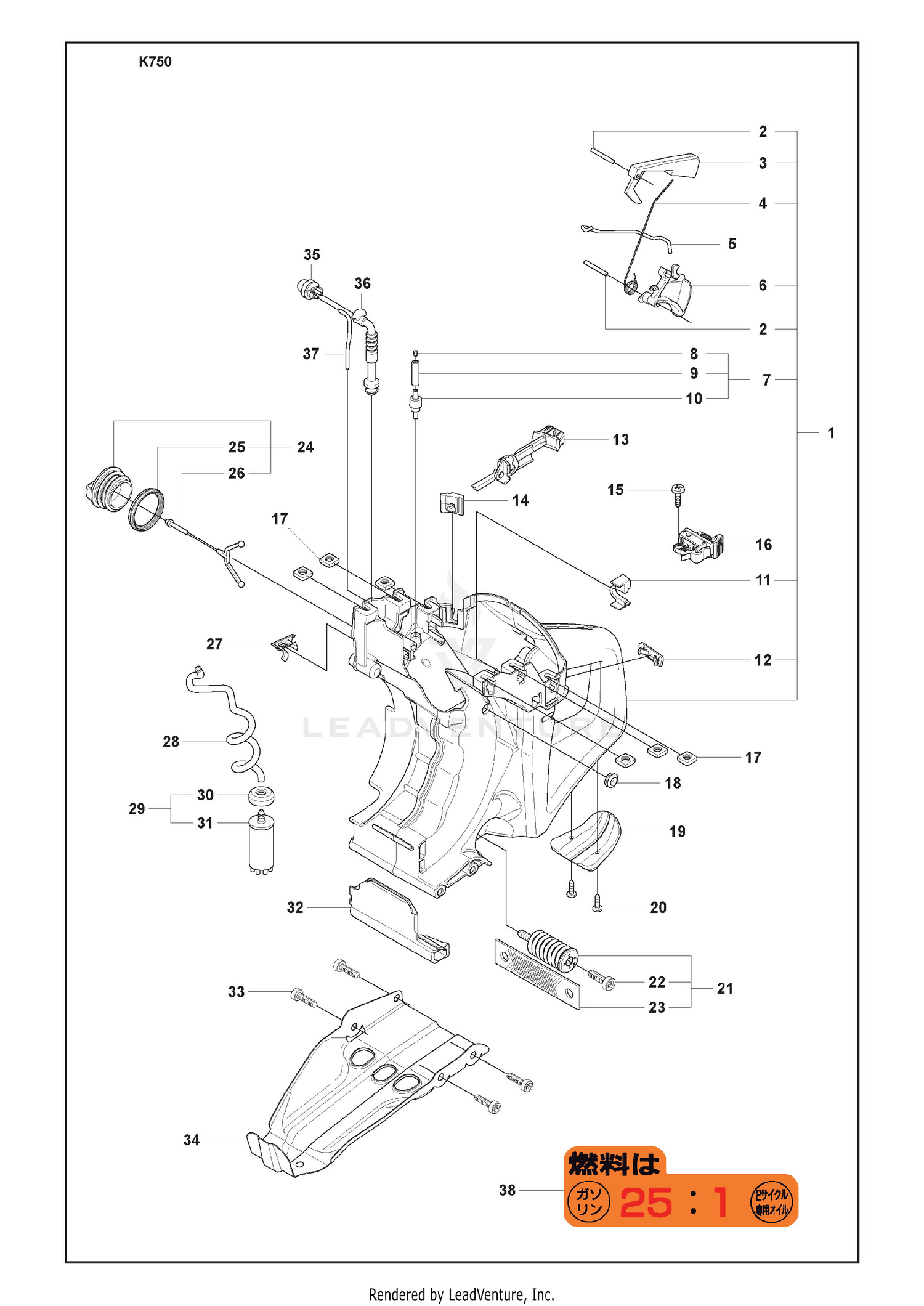

Fuel Tank And Primer Housing And Fuel Filter
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 720182520 | PIN This part replaces 720124020. Price: $1.99 |
| 3 | 588086001 | THROTTLE LOCKOUT This part replaces 506222802. Price: $9.99 |
| 4 | 595835701 | SPRING THROTTLE TRIGGER This part replaces 506379501. Price: $12.99 |
| 5 | 506371302 | THROTTLE ROD This part replaces 506371301. Price: $14.99 |
| 6 | 588086201 | THROTTLE CONTROL This part replaces 506372003. Price: $9.99 |
| 8 | 504357201 | SINTER PLUG Price: $4.99 |
| 9 | 544324929 | FUEL HOSE Price: Call Us |
| 10 | 503164001 | VALVE Price: $9.99 |
| 11 | 544393201 | HOSE CLIP Price: $3.99 |
| 12 | 501371301 | LID Price: $3.99 |
| 13 | 544229002 | CHOKE CONTROL Price: $9.99 |
| 14 | 506378001 | GROMMET Price: $7.99 |
| 15 | 503212810 | SCREW Price: $2.99 |
| 16 | 506318604 | STOP SWITCH This part replaces 506318602. Price: $19.99 |
| 17 | 503226504 | NUT Price: $4.99 |
| 18 | 501271302 | GROMMET Price: $4.99 |
| 19 | 506386702 | GROUND SUPPORT Price: $3.99 |
| 20 | 503214516 | SCREW Price: $3.99 |
| 22 | 544061201 | SCREW Price: $3.99 |
| 23 | 544238201 | BAND Price: $4.99 |
| 25 | 506292101 | GASKET Price: $4.99 |
| 26 | 503578901 | TANK LOCK Price: $4.99 |
| 27 | 506394602 | CAP Price: $3.99 |
| 28 | 581756203 | FUEL HOSE This part replaces 544325003. Price: $7.99 |
| 30 | 506271101 | CAP Price: $3.99 |
| 31 | 506264101 | FILTER Price: $8.99 |
| 32 | 506381501 | HEAT SHIELD Price: $4.99 |
| 33 | 503215420 | SCREW Price: $3.99 |
| 34 | 506371902 | BASE PLATE Price: $9.99 |
