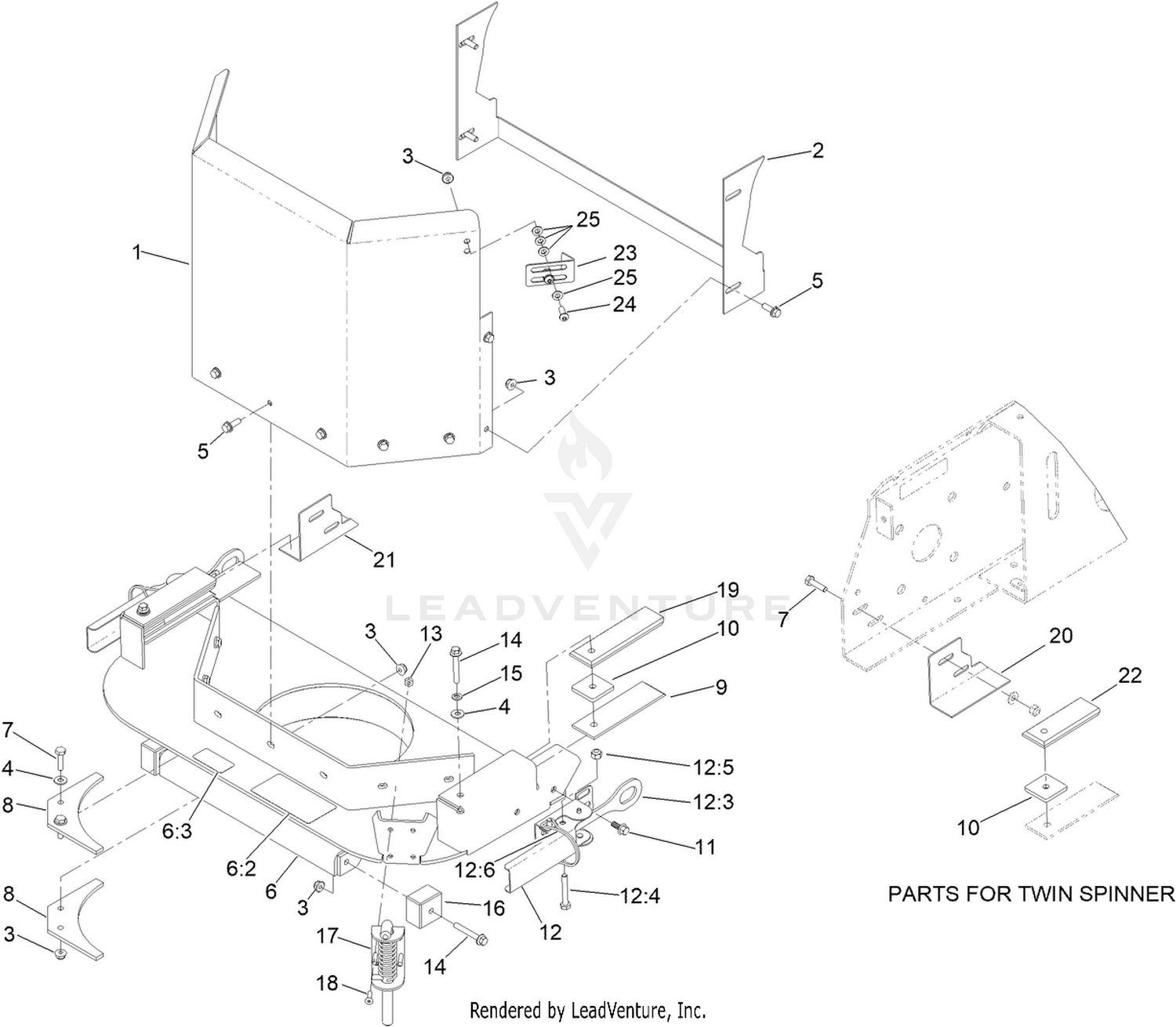

Swivel Assembly
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 145-7638-01 | GUARD-SWIVEL Price: Call Us |
| 2 | T36058100-01 | GUARD-SLIDING Price: $174.89 |
| 3 | 104-7201 | NUT-HF Price: $0.69 |
| 4 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 5 | 115-5103 | SCREW-HHF Price: $0.34 |
| 6 | 119-6926 | SWIVEL DECAL ASM Price: $878.39 |
| 7 | 321-6 | SCREW-HH Price: $0.25 |
| 8 | T36058090 | SPACER-SWIVEL Price: $14.18 |
| 9 | T36058110 | SLIDE-ATTACHMENT, LOWER Price: $31.26 |
| 10 | T36058120 | SPACER-ATTACHMENT Price: $26.33 |
| 11 | 99-6810 | SCREW-HHF Price: $3.09 |
| 12 | T36054750 | QUICK ATTACH LATCH ASM Price: $94.20 |
| 13 | 3296-2 | NUT-LOCK, NI Price: $1.89 |
| 14 | 32105-18 | SCREW-HHF Price: $0.47 |
| 15 | 3253-3 | WASHER-LOCK Price: $0.31 |
| 16 | T36058105 | BLOCK-SWIVEL Price: $156.82 |
| 17 | T0001-3254 | LATCH SPRING ASM Price: $65.89 |
| 18 | 119-6943 | SCREW-HSFH Price: $2.92 |
| 19 | T36058115 | SLIDE-ATTACHMENT, UPPER Price: $29.83 |
| 20 | T36058125-01 | DOUBLER-CORNER, LEFT Price: $9.82 |
| 21 | T36058130-01 | DOUBLER-CORNER, RIGHT Price: $49.78 |
| 22 | T0002-2016 | SLIDE-ATTACHMENT, TWIN SPINNER Price: $47.63 |
| 23 | 145-7634 | BRACKET-SENSOR Price: $38.49 |
| 24 | 3274-69 | SCREW-HSBH Price: $0.43 |
