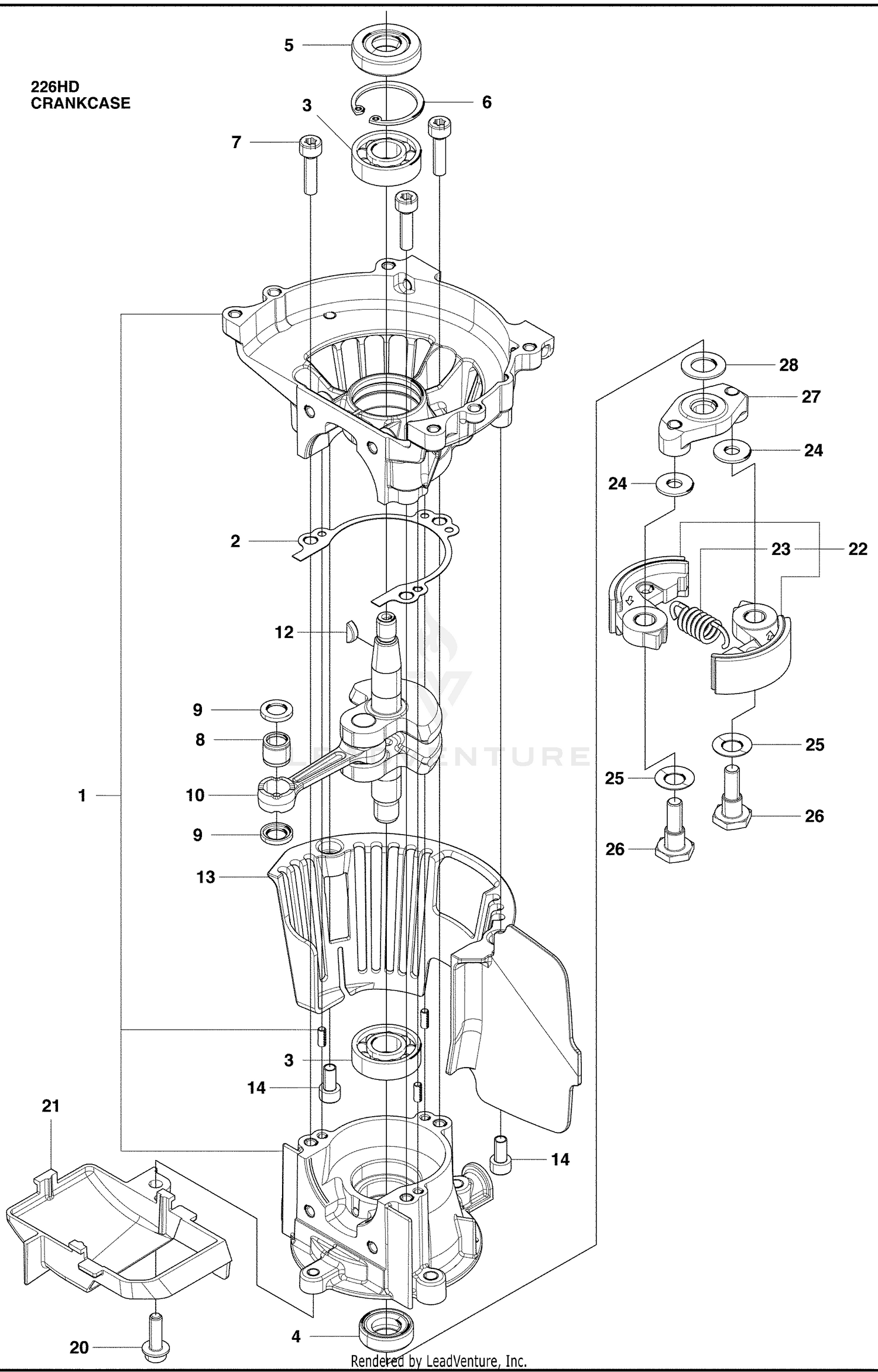

Crankcase
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506638401 | CRANKCASE COMP Price: $44.99 |
| 2 | 506684801 | GASKET, CASE Price: $2.99 |
| 3 | 506610301 | BEARING This part replaces 523071701. Price: $9.99 |
| 4 | 504121501 | SEAL This part replaces 506615701. Price: $7.99 |
| 5 | 506612901 | SEAL Price: $3.99 |
| 6 | 506609901 | RING Price: $2.99 |
| 7 | 506689001 | BOLT TORX This part replaces 506616201. Price: $3.99 |
| 8 | 506685001 | BEARING Price: $5.99 |
| 9 | 505041001 | WASHER Price: $2.99 |
| 10 | 506651801 | CRANKSHAFT COMP Price: $79.99 |
| 12 | 506610701 | KEY Price: $2.99 |
| 13 | 506629601 | PLATE Price: $4.99 |
| 14 | 506616101 | BOLT TORX M5XL10 T27 Price: $2.99 |
| 20 | 506745601 | BOLT This part replaces 506616501. Price: $2.99 |
| 21 | 506657001 | COVER ENGINE Price: $24.99 |
| 22 | 506629401 | SHOE COMP Price: $17.99 |
| 23 | 506685801 | SPRING Price: $2.99 |
| 24 | 505054401 | WASHER Price: $2.99 |
| 25 | 506613801 | WASHER Price: $2.99 |
| 26 | 506652201 | SCREW Price: $2.99 |
| 27 | 506652101 | PLATE CLUTCH Price: $5.99 |
