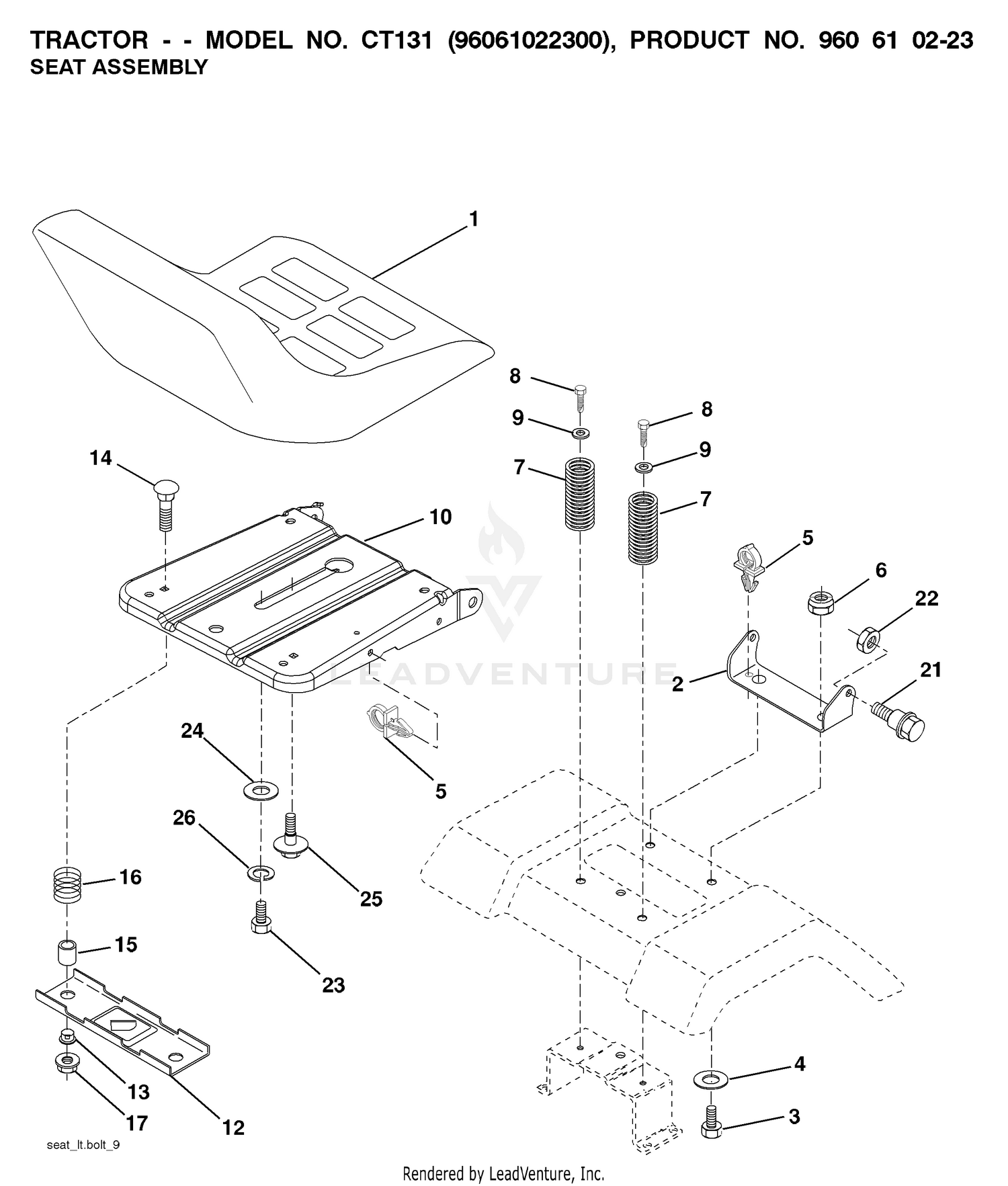

| Ref | Part Number | Description |
|---|
| 1 |
532401042 |
SEAT.XG090.BLK.KB/BLT.NO-LOG Price: $149.99 |
| 1 |
581080913 |
CONTROL.AW2.21FGD.CUR.BLK/BLK This part replaces 532430998. Price: $49.99 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 2 |
532431638 |
RP CASE.CONT.ROL.TOP.HUSQV. Price: $19.99 |
| 3 |
532432286 |
CAM.GEN2.DUAL.TRIGGER Price: $3.99 |
| 3 |
871110616 |
BOLT, HEX 3/8-16X1 Price: $3.99 |
| 4 |
532433087 |
LEVER.CONTROL.LH.22+.CURVE.BLA Price: $11.99 |
| 4 |
819131610 |
WASHER PM Price: $4.99 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
532420381 |
SPRING, DRIVE CONTROL Price: $2.99 |
| 6 |
532432273 |
BUSHING.CONTROL.CAM Price: $3.99 |
| 6 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 7 |
532433057 |
COVER.DR.CONTROL.LOWER.GRAY Price: $12.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 8 |
532432977 |
LEVER.CONTROL.RH.22+.CURV.BLAC Price: $11.99 |
| 8 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT Price: $17.99 |
| 10 |
532432790 |
BRACKET.DRIVE.CONTR.GEN2.BLACK Price: $3.99 |
| 11 |
532401274 |
WHEEL.8X1.75.H3SPK.RAD3.GY.BU3 This part replaces 532411081. Price: $27.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK Price: $8.99 |
| 12 |
812000058 |
E-RING 7/16 RE Price: $2.99 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
532403849 |
PINION.14.TEETH.FGD Price: $5.99 |
| 14 |
581840401 |
COVER.DUST.WHEEL.INNER.WALK This part replaces 532189403. Price: $5.99 |
| 14 |
872050412 |
BOLT.ROUND.HEAD.SQUARE.NECK Price: $4.99 |
| 15 |
532134300 |
SPACER SPLIT 28X.96 Price: $3.99 |
| 15 |
532404845 |
PAWL, DRIVE Price: $4.99 |
| 16 |
532067725 |
WASHER FLUT Price: $5.99 |
| 16 |
532121250 |
SPRING Price: $3.99 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
587070202 |
BEARING.SUPPORT.ASM This part replaces 532191039. Price: $12.99 |
| 18 |
532701037 |
SELECTOR KNOB Price: $4.99 |
| 20 |
532181698 |
SCREW, PHILLIPS HEAD 10 X 5/8 Price: $3.99 |
| 21 |
587907801 |
BOLT.5/16-18X5/8.SHOULDER This part replaces 532171852. Price: $2.99 |
| 22 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 23 |
871110814 |
BOLT.HEX.BLACK Price: $8.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 25 |
532431711 |
BRACKET.BELT.GUIDE.22+FGD.BZP This part replaces 532411663. Price: $2.99 |
| 26 |
532163409 |
SCREW Price: $3.99 |
| 26 |
810040800 |
LOCKWASHER Price: $5.99 |
| 27 |
532175262 |
SCREW, HEX HD TAPPING #10-24 1 Price: $3.99 |
| 28 |
532432664 |
COVER.DRIVE.ASM.185579.CE.WALK This part replaces 532185579. Price: $19.99 |
| 29 |
532194149 |
BELT.DRIVE.FG Price: $19.99 |
| 32 |
532443262 |
RP PULLEY.DRIVE.EZ/VAR.SCREWON This part replaces 532194018. Price: $9.99 |
| 33 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532409148. Price: $3.99 |
| 36 |
532404833 |
TRANSMISSION.21.FGD.HT.VST Price: $119.99 |
| 38 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 873800400. Price: $1.99 |
| 40 |
532406558 |
SPRING Price: $6.99 |
| 54 |
580953406 |
GBAG.34710090.H-GREY MS498 This part replaces 532425732. Price: $54.99 |
| 57 |
532411950 |
FRAME.GBAG.21.FWGD Price: $64.99 |
